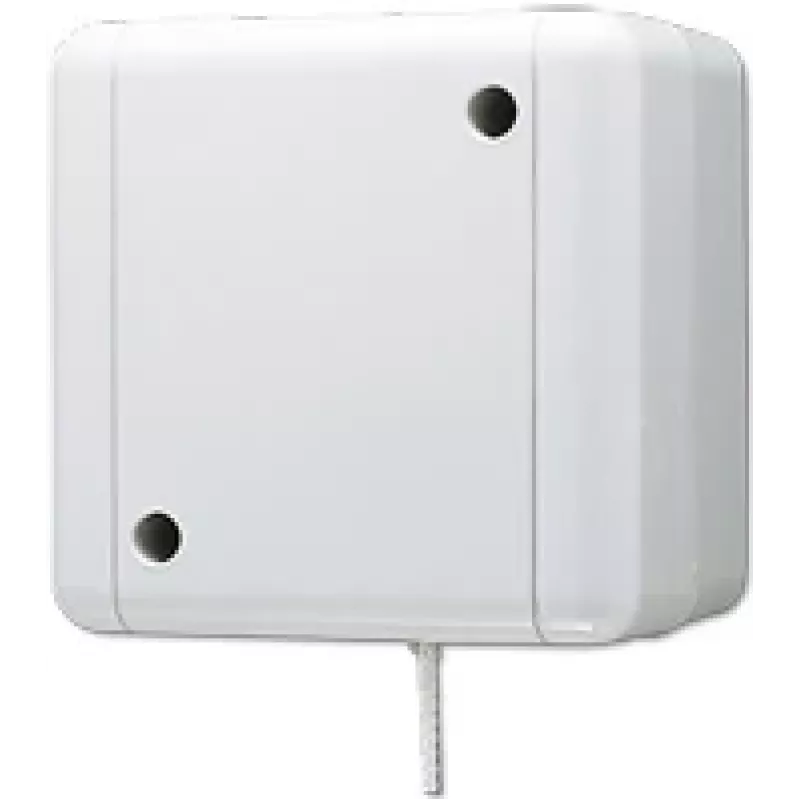

Interruptor unipolar Jung 806 ZW 1P branco, 250 V AC, 10 A capacidade de comutação

Jung 806 ZW is a single-pole (1P) wall-mounted switch in white, designed for 250 V AC circuits with a 10 A breaking capacity. It provides manual on/off control for lighting and small electrical loads in residential and light-commercial installations and is intended for integration into standard switch frames and wiring systems with screw terminal connections for conductors up to 2.5 mm².

Advantages

The switch offers a compact, single-pole design that is compatible with common wall-mount frames and provides a straightforward mechanical on/off function. Screw terminals accept conductors up to 2.5 mm², simplifying installation and ensuring secure electrical connections. Its rated voltage and breaking capacity make it suitable for typical lighting circuits and small appliances.

Suitable for

When it may not be suitable

This single-pole switch is not intended for multi-pole or three-phase applications and must not be used where higher currents or voltages are present than its rated 10 A and 250 V AC. It is also not suitable for control of heavy loads, motor drives, or circuits requiring specialized switching features such as dimming or multi-way switching without appropriate companion devices.

Key specifications

How to use

Switch is installed into a compatible wall-mount frame and wired into the circuit using the screw terminals for conductors up to 2.5 mm². Ensure power is isolated before wiring. Connect the live conductor to the switch input and the switched live to the output terminal, tighten screw terminals securely, and fit the switch into the frame according to the manufacturer's mounting instructions. After installation, restore power and test the on/off operation.

What to consider before purchase

Recommendations

Use this Jung single-pole switch for standard lighting and small-load switching in domestic or light-commercial installations, ensuring correct frame compatibility and adhering to proper isolation and wiring practices during installation.
