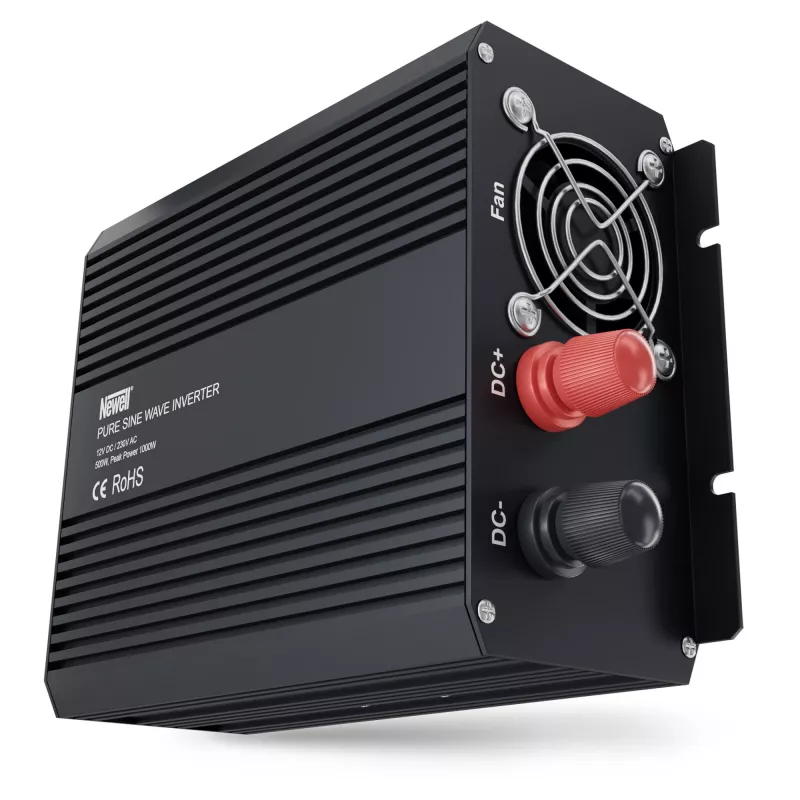

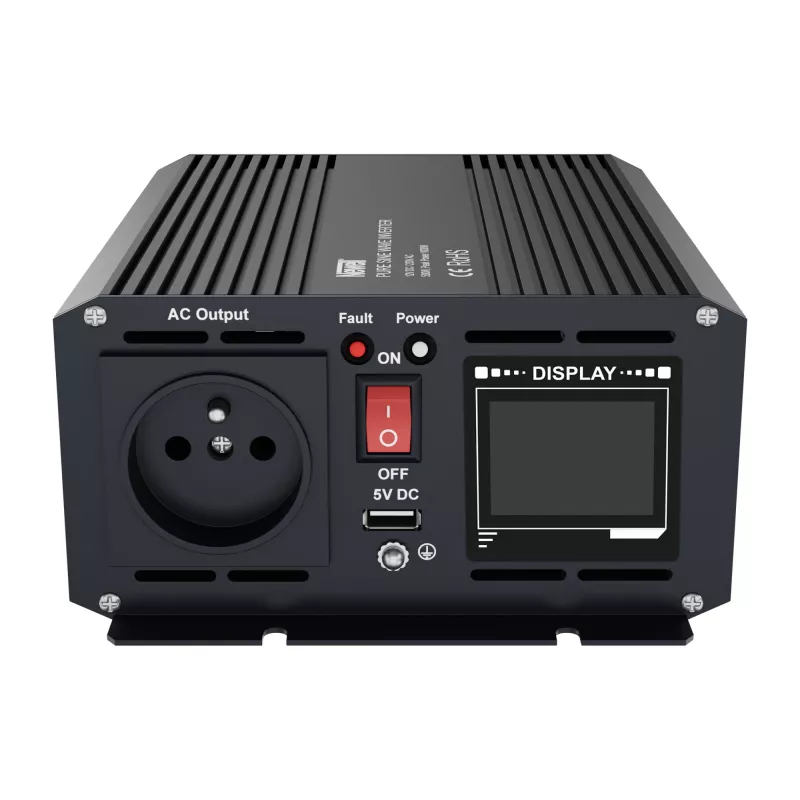

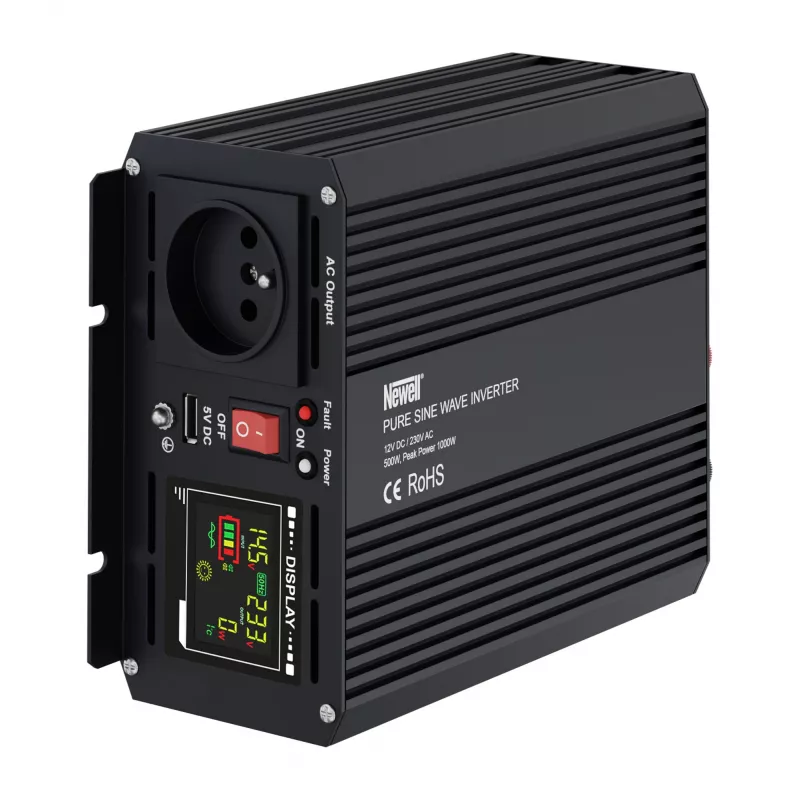

Inversor de potência Newell de onda sinusoidal pura 12V DC para 230V AC 500W

The Newell Pure Sine Wave Power Inverter converts 12V DC battery power into stable 230V AC with a pure sine wave, delivering clean and reliable power for sensitive electronic devices. With a continuous output of 500W and a peak power of 1000W, it is ideal for use in vehicles, caravans, boats, and off-grid systems.

Advantages

Pure sine wave output ensures compatibility with sensitive electronics such as laptops, medical equipment, and audio devices. High efficiency (>90%) minimizes battery drain. Multiple protection features safeguard your devices and the inverter itself.

Suitable for

• Caravans, motorhomes, and boats
• Camping and outdoor activities
• Emergency backup power
• Powering tools and appliances on job sites

Key specifications

• Inverter Type: Pure Sine Wave
• Continuous Power Output: 500W
• Peak Power Output: 1000W
• Input Voltage: 12V DC
• Output Voltage: 230V AC ±5%
• Output Frequency: 50Hz ±0.5Hz
• Efficiency: >90%
• USB Output: 1x 5V / 2.1A
• Protection: Overload, Over-voltage, Under-voltage, Over-temperature, Short Circuit, Reverse Polarity (fuse)
• Cooling: Intelligent cooling fan
• AC Output: 1x Universal AC outlet

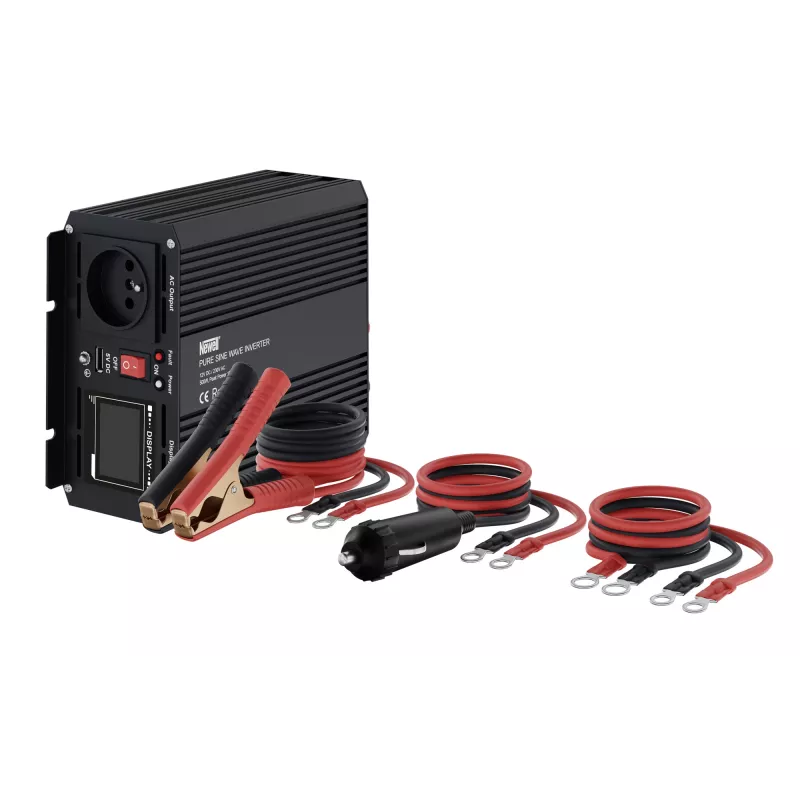

• Input Connection: DC battery clamps
• Low Voltage Alarm: 10.5V DC ±0.5V
• Low Voltage Shutdown: 10.0V DC ±0.5V
• High Voltage Shutdown: 15.5V DC ±0.5V
• No-load Current Draw: <0.5A
• Operating Temperature: -10°C to 50°C
• Casing Material: Aluminum alloy

Recommendations

For optimal performance, connect the inverter directly to a 12V battery using the included clamps. Ensure the battery has sufficient capacity to handle the load. Do not exceed the continuous power rating.
