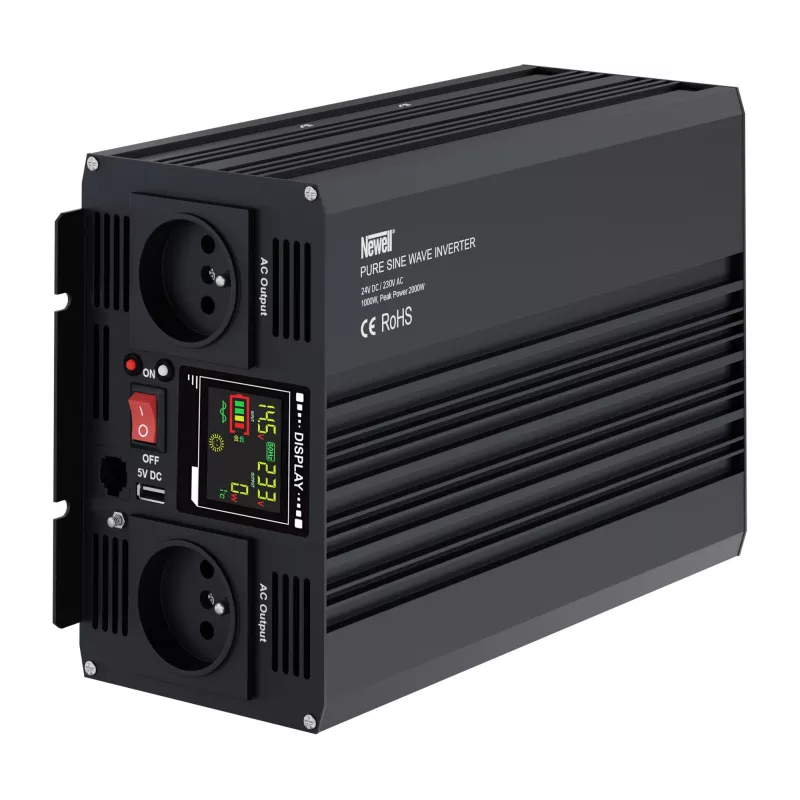

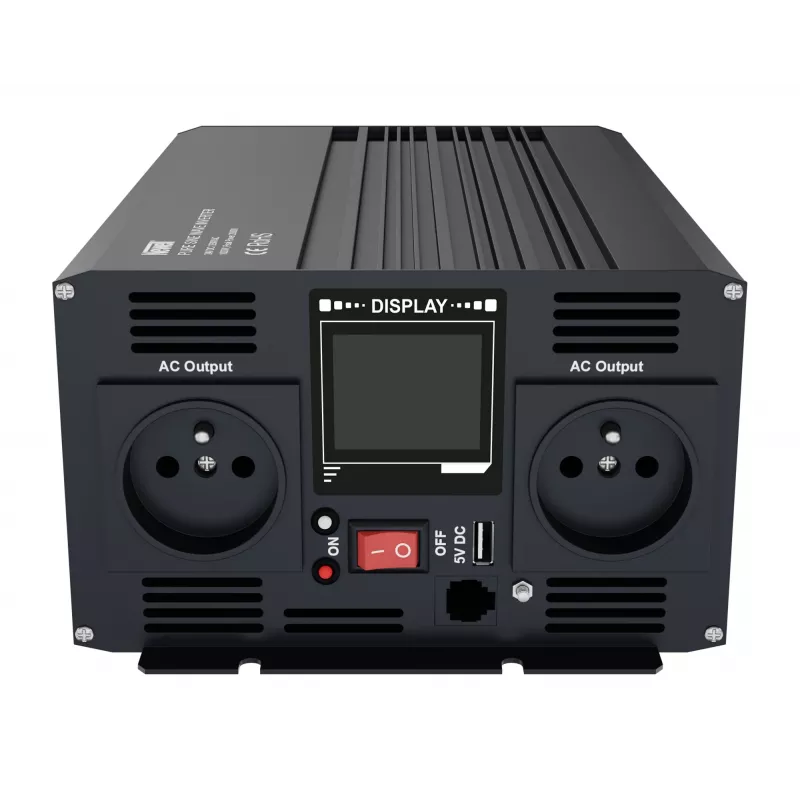

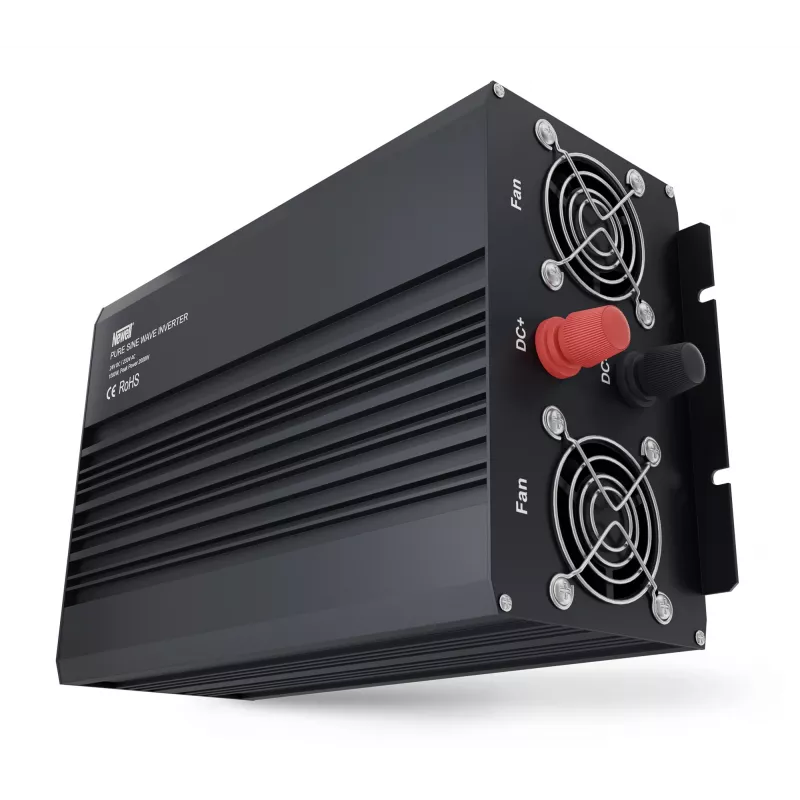

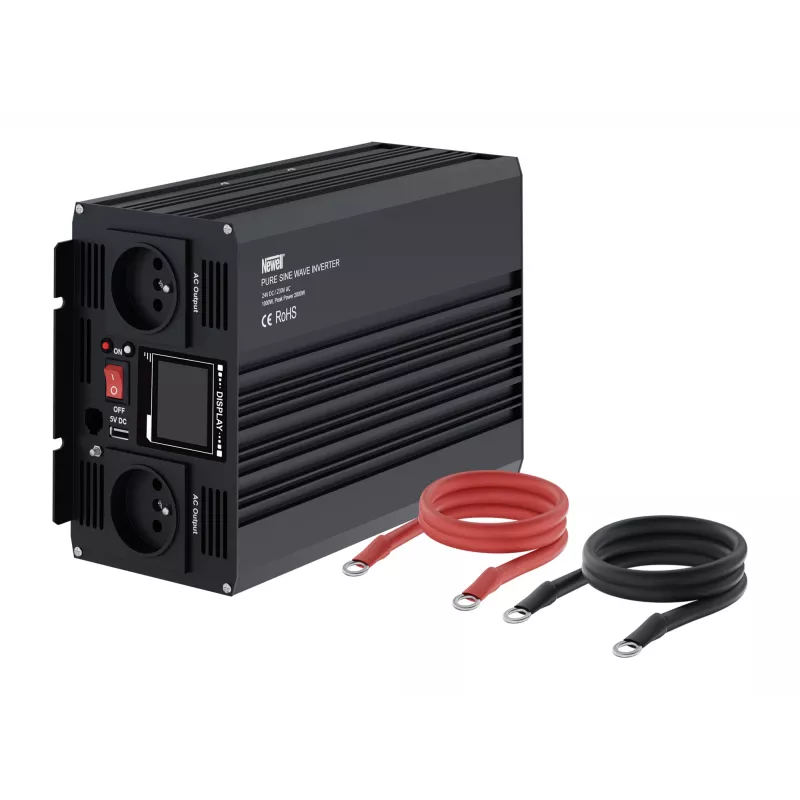

Inversor de potência Newell de onda sinusoidal pura 24V DC para 230V AC 1000W

The Newell Pure Sine Wave Power Inverter converts 24V DC from a battery into 230V AC with a clean sine wave, providing safe and stable power for sensitive electronics. With a continuous output of 1000W and a peak power of 2000W, it is ideal for use in caravans, boats, trucks, and off-grid systems.

Advantages

Pure sine wave output ensures compatibility with sensitive devices such as laptops, medical equipment, and audio systems. Intelligent fan cooling keeps the inverter running efficiently, while comprehensive protection features safeguard against overload, short circuit, over-voltage, under-voltage, over-temperature, and reverse polarity. The LCD display provides real-time information on battery voltage, output power, and fault status.

Suitable for

• Caravans and motorhomes
• Boats and yachts
• Trucks and commercial vehicles
• Off-grid solar systems
• Emergency backup power

Key specifications

• Input Voltage: 24V DC
• Output Voltage: 230V AC
• Continuous Power: 1000W
• Peak Power: 2000W
• Output Waveform: Pure Sine Wave
• Output Frequency: 50 Hz
• Efficiency: >90%
• Output Sockets: 2x Schuko AC outlets
• USB Output: 1x USB-A (5V, 2.1A)
• Cooling: Intelligent fan
• Protection: Overload, short circuit, over-voltage, under-voltage, over-temperature, reverse polarity
• Low Battery Alarm: Yes
• Low Battery Shutdown: Yes
• Display: LCD
• Input Connection: DC terminal blocks
• Operating Temperature: -10°C to +50°C
• Certifications: CE, RoHS
• Housing Material: Aluminum alloy

Recommendations

For optimal performance, use with a deep-cycle battery and ensure proper ventilation. The inverter is not suitable for inductive loads exceeding 1000W continuous.
