IT-BUDGET Armário de rede 19 polegadas SWA - 4U - 570 x 450 mm - porta de vidro - painéis laterais removíveis - montagem na parede/chão - conjunto de acessórios - cinzento claro (90ITB19WS4645GG)

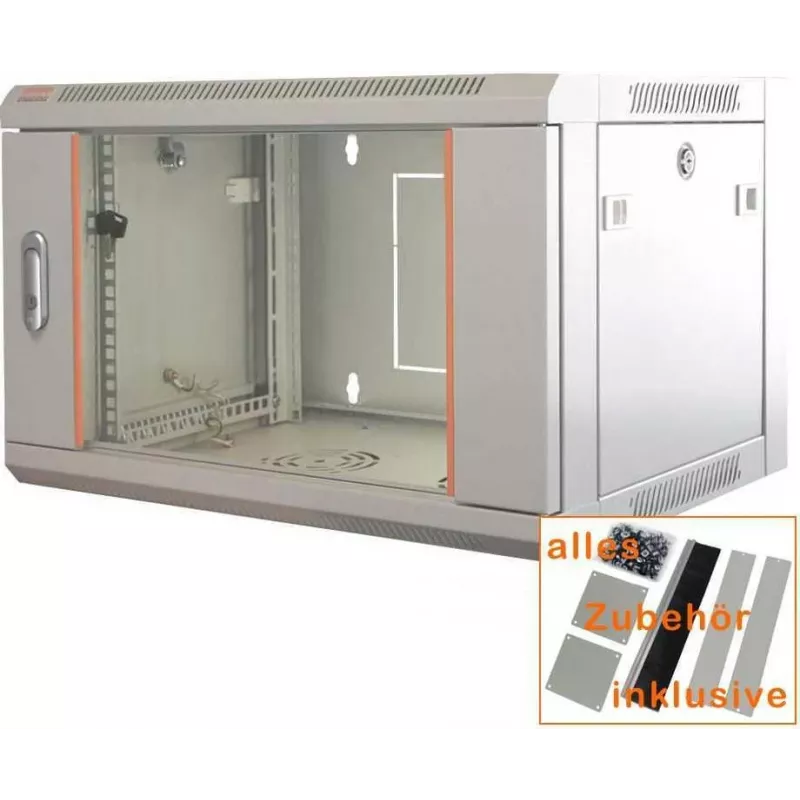

This 4U wall-mount network cabinet stands out with its single-section safety glass door that opens a full 180°, giving unobstructed access to installed equipment. The light grey (RAL 7035) powder-coated steel body and removable, lockable side panels make it a practical choice for small server rooms, offices, or industrial environments where space is limited but security matters.

Highlights

• 19-inch rack with 4 height units (4U) for compact installations
• External dimensions: 570 mm width, 450 mm depth, 240 mm height
• Safety glass front door with 180° opening angle and lock
• Removable and lockable side panels for easy maintenance
• Wall-mountable or floor-standing installation
• Static load capacity: 60 kg when wall-mounted
• Top and bottom cable entry with brush strips
• Depth-adjustable 19-inch mounting rails (2 pairs)
• Included: grounding kit, mounting hardware, 2 keys

In daily use

The cabinet is built from steel sheet with a powder-coated finish, ensuring durability. Its IP20 protection class suits indoor use. The lockable front door and side panels deter unauthorized access, while the brush strips at cable entry points help keep dust out. Two pairs of depth-adjustable rails accommodate various equipment depths, and the 60 kg wall-mount load rating supports typical switches, patch panels, and small servers.

Full specifications

• Rack Standard: 19-inch
• Rack Units: 4U
• External Width: 570 mm
• External Depth: 450 mm
• External Height: 240 mm
• Door Type: Single-section safety glass door
• Door Opening Angle: 180°
• Side Panels: Removable and lockable
• Mounting Options: Wall-mountable, Floor-standing
• Color: Light Grey (RAL 7035)
• Material: Steel sheet
• Protection Class: IP20
• Max Static Load Capacity: 60 kg (wall-mounted)
• Cable Entry: Top and bottom with brush strips
• Mounting Rails: 2 pairs, 19-inch, depth-adjustable
• Security: Lockable front door and side panels
• Finish: Powder-coated
• Included Accessories: Grounding kit, mounting hardware, 2 keys

Final note

All technical details are based on verified supplier data and Gemini research. This cabinet is a reliable, secure enclosure for compact network installations.
