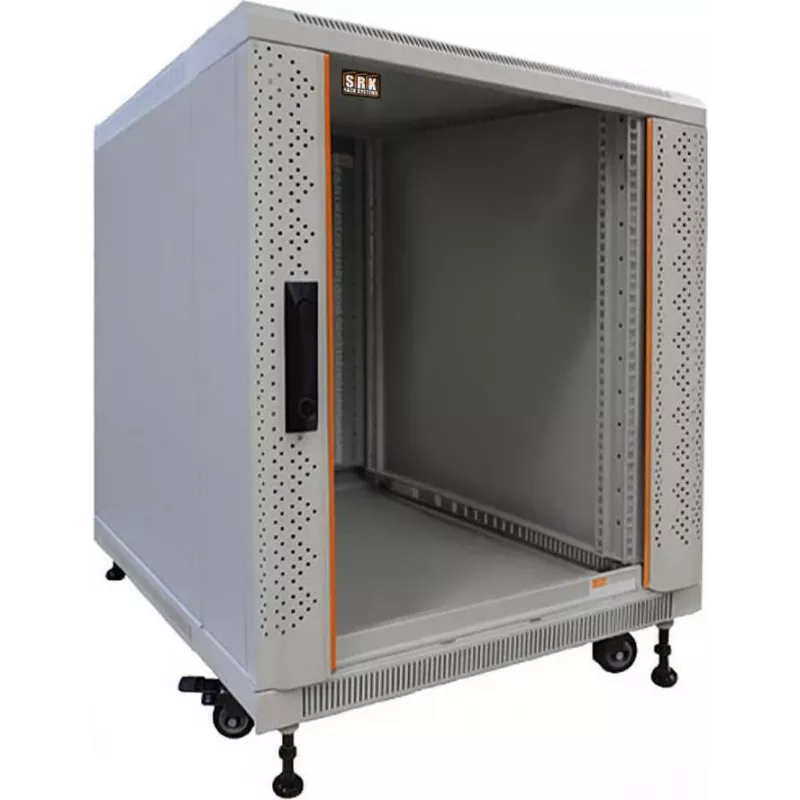

IT-BUDGET Armário de rede de 19 polegadas SRK 12U 600x800 mm cinzento-claro flatpack com portas de vidro/aço

This 12U freestanding network cabinet supports up to 600 kg static load, making it a robust foundation for your IT infrastructure. Its light grey steel enclosure (RAL 7035) houses 19-inch mounting rails with depth adjustment, accommodating equipment up to 680 mm deep.

Overview

The IT-BUDGET SRK 12U is a flatpack network cabinet measuring 600 mm wide and 800 mm deep. It features a lockable safety glass front door with 180° opening angle and a solid steel rear door, both reversible for left or right mounting. Side panels are removable and lockable, providing secure access for maintenance.

What stands out

• High static load capacity of 600 kg for heavy equipment
• Flatpack delivery for easy transport and on-site assembly
• Reversible doors and removable side panels for flexible installation
• Prepared for roof fan units to enhance ventilation
• Includes 2 keys, 20 cage nuts, and 4 leveling feet

Technical details

• Rack units: 12U
• External dimensions: 600 x 800 mm (W x D)
• External height: 640 mm
• Material: Steel sheet
• Protection class: IP20
• Mounting rails: 19-inch, front and rear, depth-adjustable
• Max. installation depth: 680 mm
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, prepared for fan units in roof
• Colour: Light grey (RAL 7035)

Our verdict

A sturdy and versatile 12U cabinet ideal for small to medium network setups, offering excellent load capacity and flexible configuration options.
