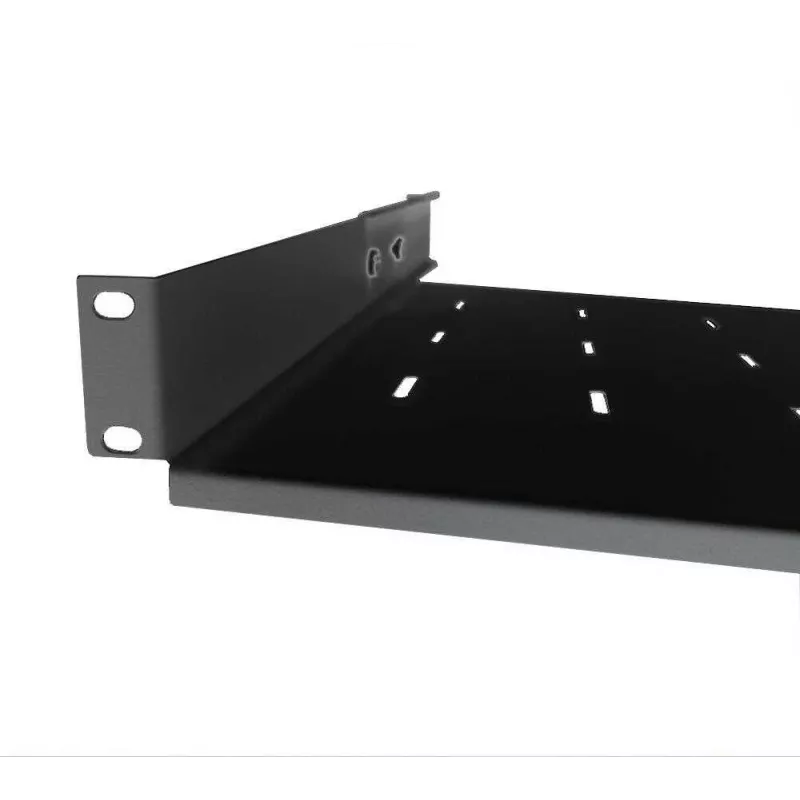

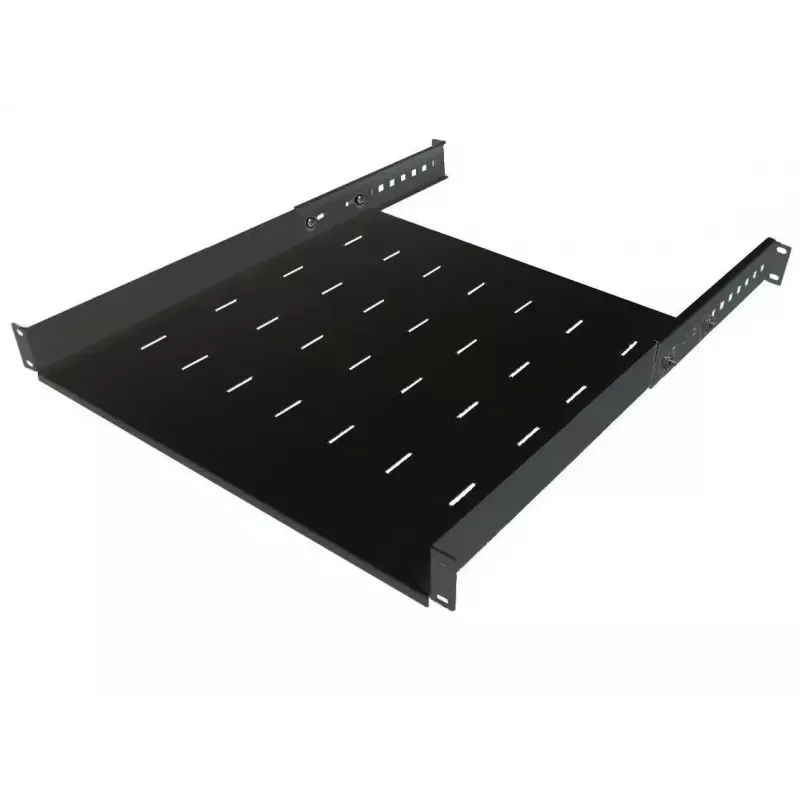

IT-BUDGET Prateleira para rack de 19" / Bandeja para equipamentos - Carga 40 kg - Profundidade 550 mm - montagem com profundidade variável - preto (90ITB19FB550S)

Network administrators and data center technicians often need a sturdy, fixed shelf to support non-rackmountable equipment inside a 19-inch server rack. The IT-BUDGET 90ITB19FB550S is a solid steel shelf designed for exactly that purpose, offering a 40 kg load capacity and a 550 mm depth to accommodate devices such as small UPS units, switches, or test equipment.

Key specifications

• Rack compatibility: 19-inch
• Load capacity: 40 kg
• Shelf depth: 550 mm
• Mounting type: Depth-variable 4-point mounting
• Material: Steel, powder-coated
• Color: Black
• Rack units: 1U
• Surface: Solid (non-vented)
• Overall width (incl. mounting ears): 482.6 mm
• Overall height: 44.45 mm
• Usable shelf width: Approx. 450 mm
• Usable shelf depth: Approx. 540 mm
• Mounting hardware: Included (screws, cage nuts)
• Installation type: Fixed shelf

Why choose it

The shelf’s depth-variable mounting allows flexible positioning within the rack, accommodating different cabinet depths. Its solid steel construction and powder-coated finish ensure durability and a clean appearance in professional environments.

Ideal use cases

• Supporting non-rackmountable equipment in server racks
• Organizing network cabinets and data centers
• Holding small UPS units, KVM switches, or audio/video gear

Good to know

The shelf is designed for fixed installation and includes the necessary mounting hardware. It occupies 1U of rack space and provides a solid, non-vented surface for equipment that does not require airflow from below.
