IWH Interruptor basculante azul 12V/24V 10A SPST ON-OFF iluminado para montagem em painel 19028

Controlling a 12V or 24V circuit in a vehicle or boat often means choosing between a switch that is easy to see and one that is easy to install. This IWH rocker switch solves that problem with a built-in blue illumination that makes it visible in low light, and a snap-in panel mount that requires no tools or extra hardware.

Who is it for

This switch is for anyone wiring accessories in cars, trucks, boats, caravans, or other 12V/24V DC systems. It suits DIY enthusiasts, auto electricians, and marine technicians who need a reliable, illuminated ON-OFF switch that fits a standard rectangular cutout.

Main features

• Blue illuminated rocker actuator – clearly shows switch status at a glance, even in the dark.
• SPST (single pole, single throw) contact configuration – simple ON-OFF operation for one circuit.
• Rated for 10 A at 12V DC and 24V DC – handles a wide range of accessory loads.
• Three spade terminals (6.3 mm) – standard quick-connect wiring for fast installation.
• Snap-in panel mounting – fits a 20 x 30 mm cutout, no screws or brackets needed.
• Black plastic body and actuator – durable and blends with most dashboards and panels.

Specifications

• Switch type: rocker switch
• Function: ON-OFF
• Number of positions: 2
• Illumination: yes, blue
• Operating voltage: 12V DC / 24V DC
• Current rating: 10 A
• Number of terminals: 3
• Terminal type: spade terminals (6.3 mm)
• Mounting type: panel mount (snap-in)
• Panel cutout dimensions: 20 x 30 mm
• Contact configuration: SPST
• Actuator colour: black
• Body material: plastic

Tips

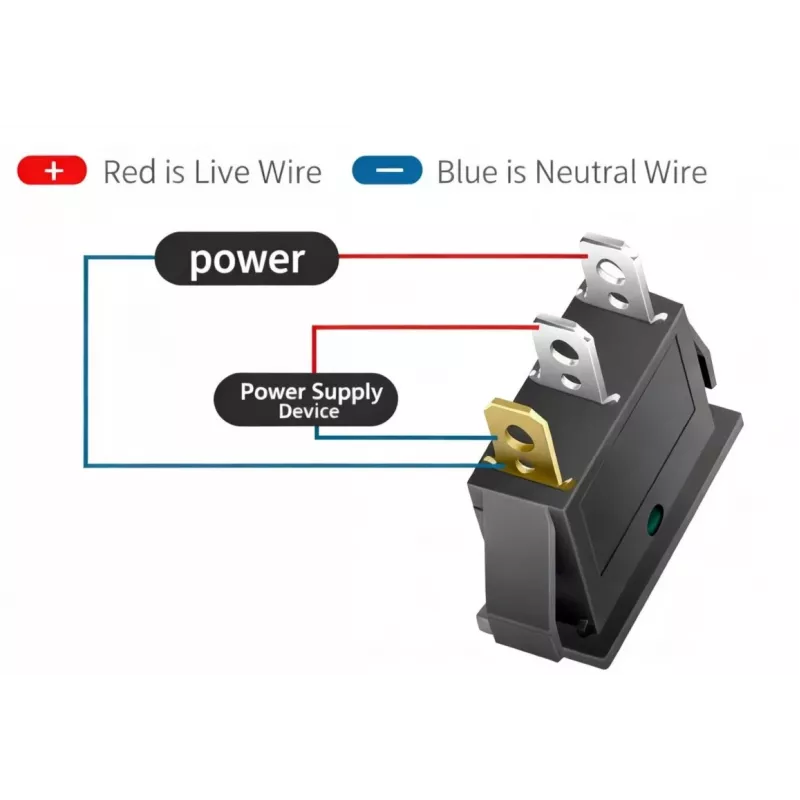

When wiring, use the centre terminal as the common or feed, and one of the outer terminals for the load. The third terminal is for the illumination ground, which may be connected to the negative side of the circuit or a separate ground, depending on your wiring scheme. Always check the polarity of the illumination circuit to ensure the blue light works correctly.
