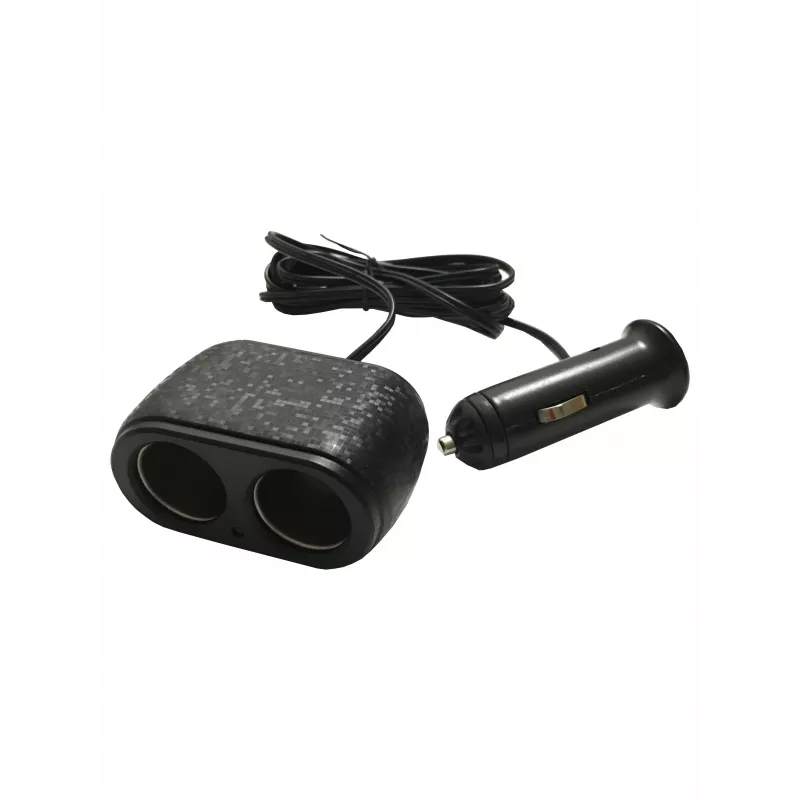

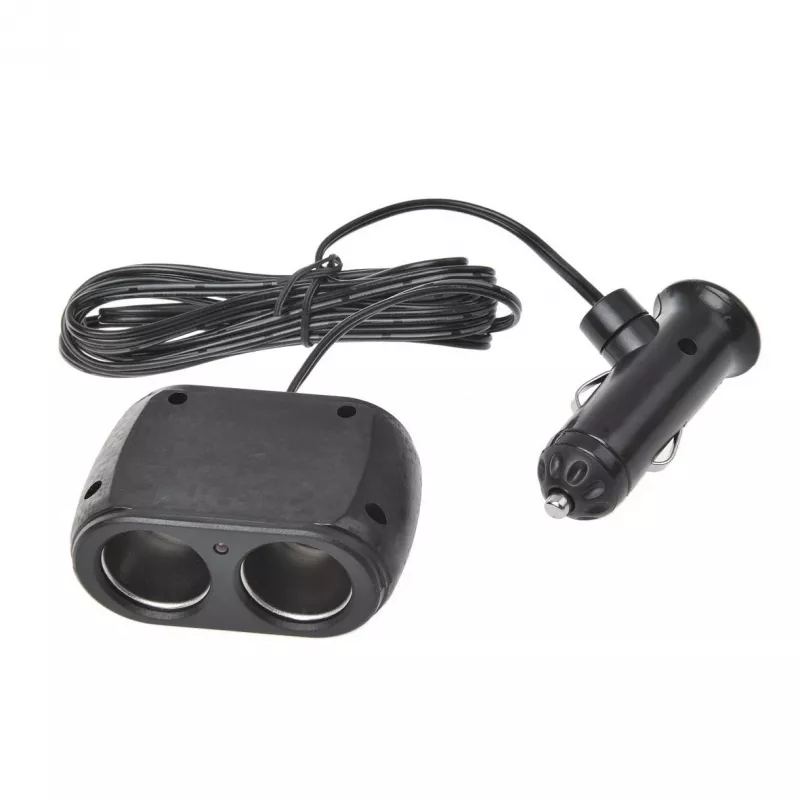

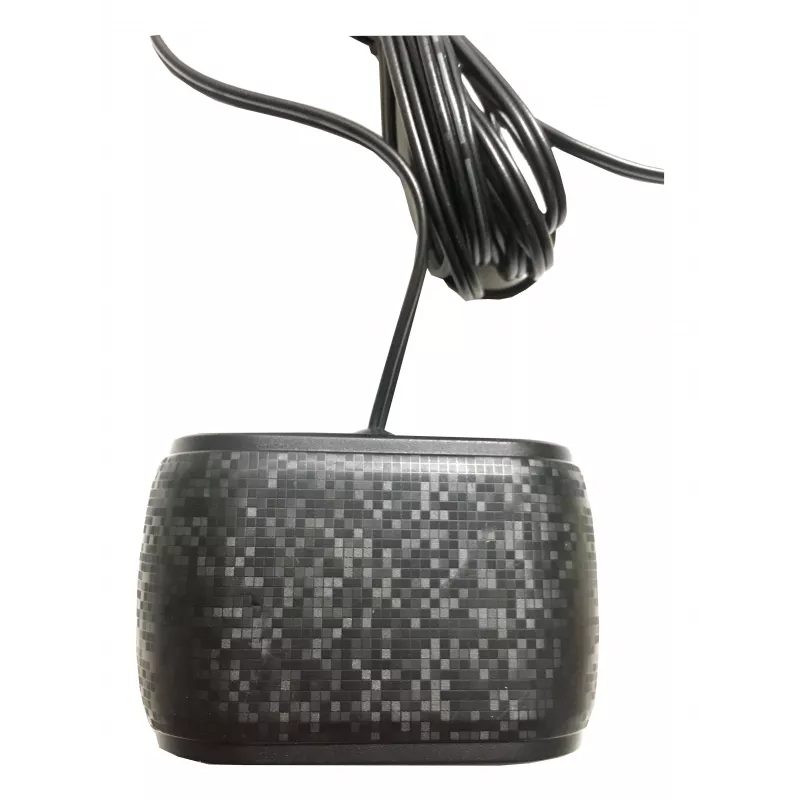

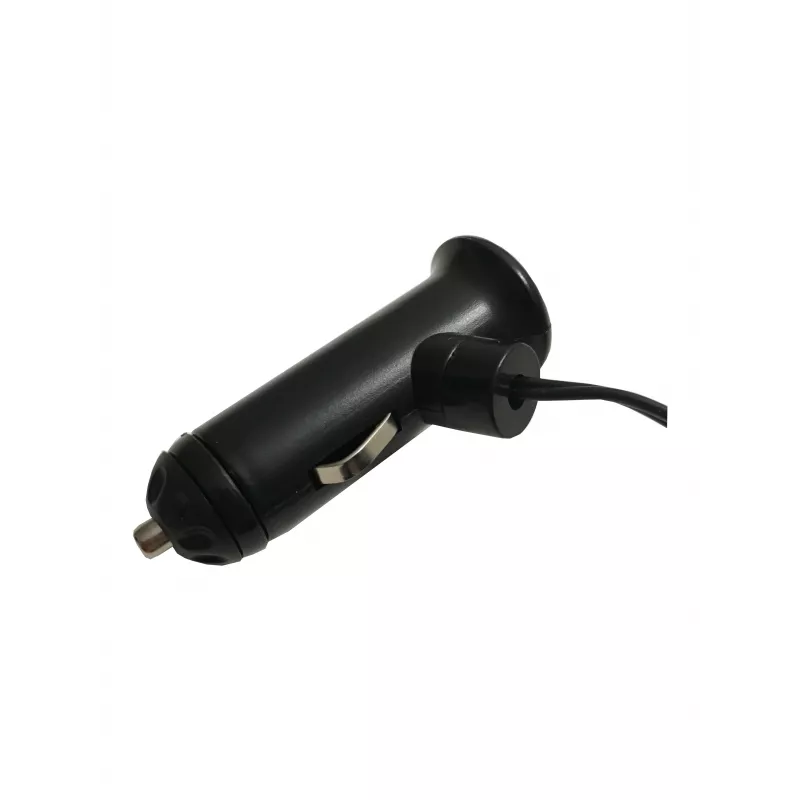

IWH tomada dupla corrente máxima 10 A 12/24 V DC (019012)

In vehicles, boats, and caravans, the lack of sufficient power outlets often forces users to choose between devices. The IWH Double Socket solves this by providing two 12/24 V DC accessory sockets in a single surface-mount unit, allowing simultaneous operation of two devices without rewiring.

Who is it for

This double socket is ideal for drivers, campers, and marine enthusiasts who need to power multiple 12/24 V devices such as coolers, air compressors, or chargers. It suits anyone upgrading their vehicle's power distribution with a simple screw-terminal installation.

Main features

• Two vehicle accessory sockets (cigarette lighter type) in one housing
• Maximum total current load: 10 A
• Compatible with 12 V and 24 V DC systems
• Surface mount with screw terminals for easy connection
• Durable ABS plastic housing in black

Specifications

• Input voltage: 12 V DC / 24 V DC
• Max current load: 10 A (total)
• Number of sockets: 2
• Socket type: Vehicle accessory socket (cigarette lighter type)
• Mounting type: Surface mount
• Connection type: Screw terminals
• Material: ABS plastic
• Colour: Black
• Max power output: 120 W (12 V), 240 W (24 V)
• Internal fuse: No (requires external fuse)

Tips

Install the socket in a location protected from moisture and ensure the wiring is rated for at least 10 A. Always use an external fuse in line with the power supply to protect your devices.
