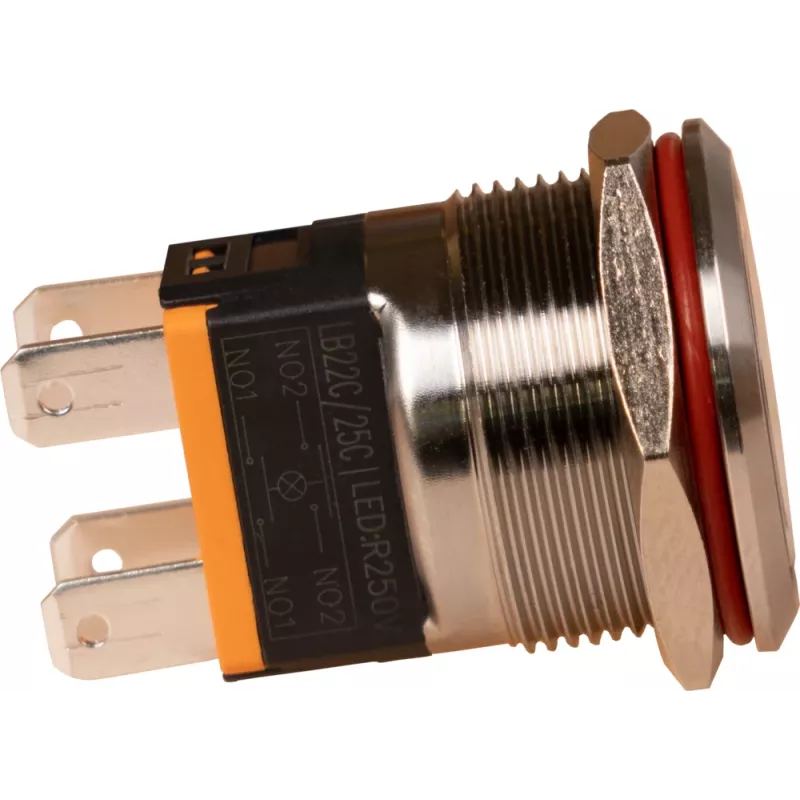

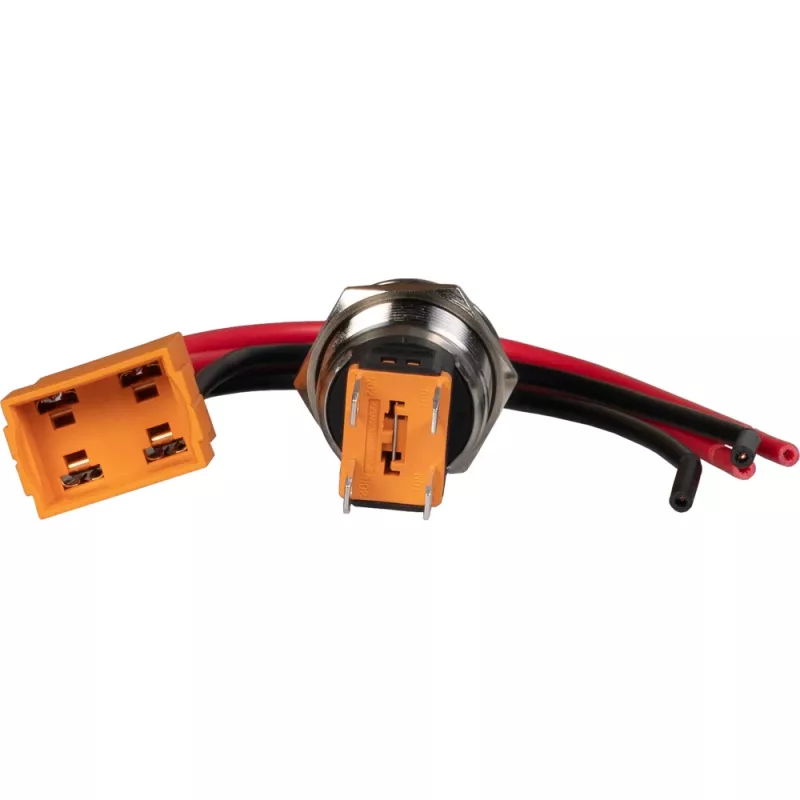

JOY-IT Button22C-02 interruptor de pressão com função de retenção, vermelho, 240 V AC, 15 A, IP67, IK10, montagem em painel

For control panels and industrial equipment that need a robust, weatherproof switch, the JOY-IT Button22C-02 provides a reliable latching push button in red. It mounts in a 24.8 mm panel cutout and handles up to 240 V AC and 15 A, making it suitable for power control in machinery, kiosks, or outdoor enclosures.

Key specifications

• Switch operation: Latching (maintained)
• Actuator colour: Red
• Maximum switching voltage: 240 V AC
• Maximum switching current: 15 A
• Mounting cutout diameter: 24.8 mm
• Overall length: 34.5 mm
• Ingress protection: IP67
• Impact protection: IK10
• Contact configuration: SPST
• Illumination: Non-illuminated
• Mounting type: Panel mount
• Actuator shape: Round
• Number of terminals: 2

Why choose it

The IP67 rating means the switch is dust-tight and protected against temporary immersion, while IK10 indicates resistance to high impact. The latching action keeps the circuit in the selected state until pressed again, ideal for on/off control.

Ideal use cases

• Industrial control panels
• Outdoor equipment enclosures
• Machinery power switching
• Kiosks and vending machines

Good to know

The switch is non-illuminated and has a simple SPST contact arrangement with two terminals for easy wiring.
