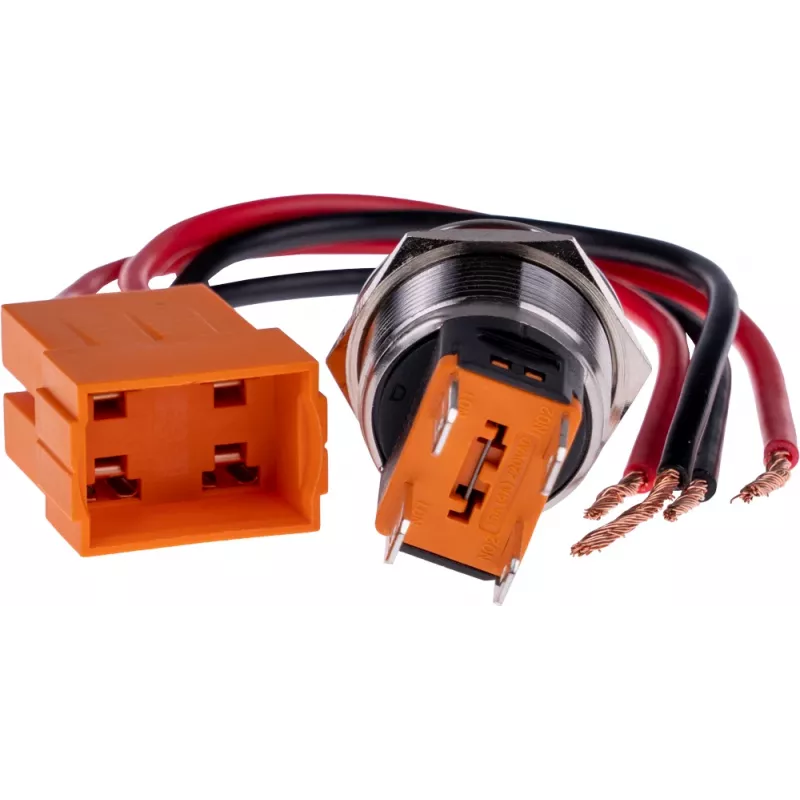

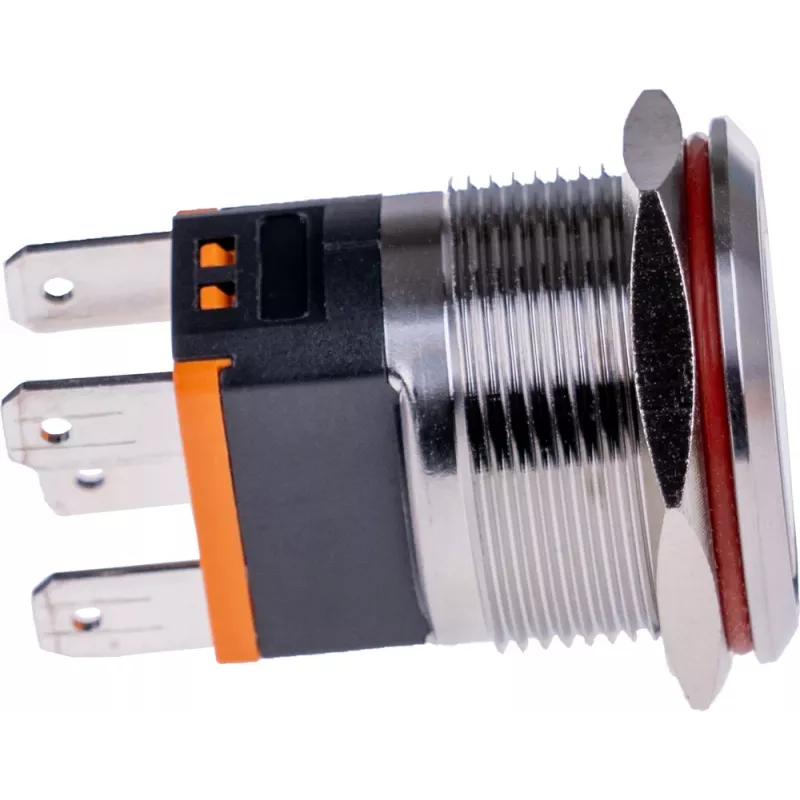

JOY-IT BUTTON22C-M-RD Botão interruptor 250V AC 15A SPST NO IP67 IK10 vermelho

On a busy industrial control panel, every second counts. The JOY-IT BUTTON22C-M-RD is a robust momentary push button switch built for demanding environments. With its red flush actuator and 22 mm mounting diameter, it provides clear visual feedback and reliable operation for start/stop functions, machine jogging, or signaling. Rated at 250 V AC and 15 A, it handles substantial loads while its IP67 and IK10 ratings ensure protection against dust, water, and mechanical impact. Screw terminals make installation straightforward, and the metal housing guarantees long-term durability. Whether you're upgrading an existing panel or building a new one, this switch delivers consistent performance when it matters most.

Key specifications

• Switch type: Push button switch
• Operation: Momentary (non-latching)
• Contact configuration: 1 x SPST (single pole, single throw)
• Switching function: Normally open (NO)
• Rated voltage: 250 V AC
• Rated current: 15 A
• Ingress protection: IP67 (dust-tight and protected against temporary immersion)
• Impact protection: IK10 (highest impact resistance)
• Mounting diameter: 22 mm
• Actuator color: Red
• Actuator type: Round, flush
• Terminal type: Screw terminals
• Housing material: Metal
• Number of positions: 2 (ON/OFF)
• Panel thickness: Up to 6 mm (typical)

Why choose it

This switch is built to withstand harsh conditions. The IP67 rating means it is completely protected against dust and can survive temporary immersion in water, making it suitable for outdoor or washdown applications. The IK10 rating indicates it can resist impacts up to 20 joules, equivalent to a 5 kg mass dropped from 40 cm. The metal housing adds extra durability, and the screw terminals ensure a secure connection even in high-vibration environments. Its momentary action prevents accidental sustained operation, enhancing safety.

Ideal use cases

• Industrial control panels for start/stop or jog functions
• Machinery requiring a momentary signal, such as presses or conveyors
• Outdoor equipment exposed to weather and dust
• Automotive or marine applications needing waterproof switches
• Test and measurement setups where a temporary connection is needed

Good to know

The switch fits standard 22 mm panel cutouts and is compatible with panels up to 6 mm thick. It is a single-pole switch, so it breaks or makes one circuit. The red actuator is easily visible, aiding quick identification in emergency or critical functions. For installation, use a suitable screwdriver to tighten the terminal screws to the recommended torque. Always ensure the power is disconnected before wiring.
