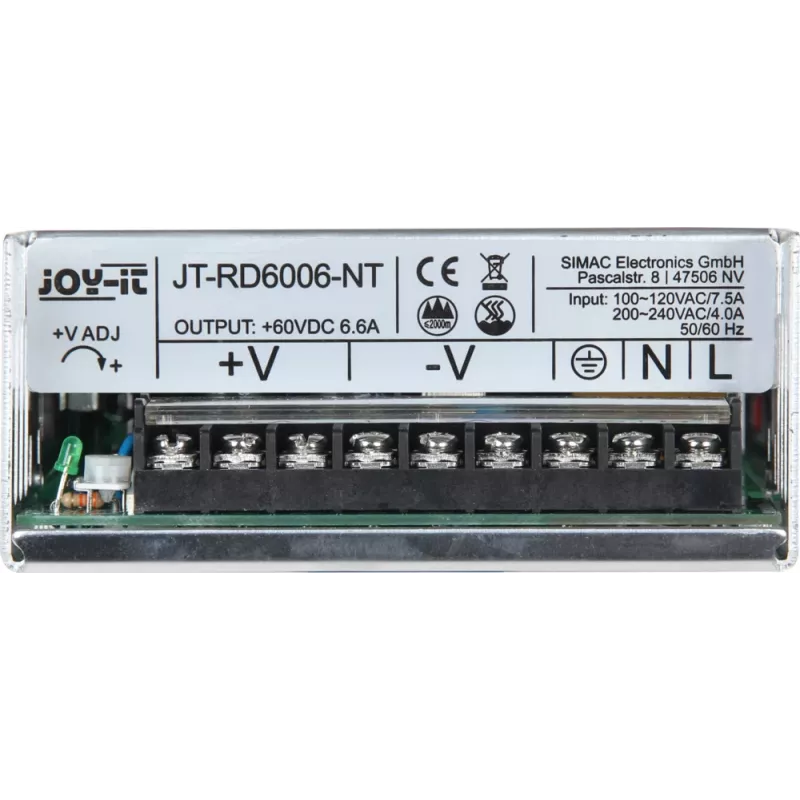

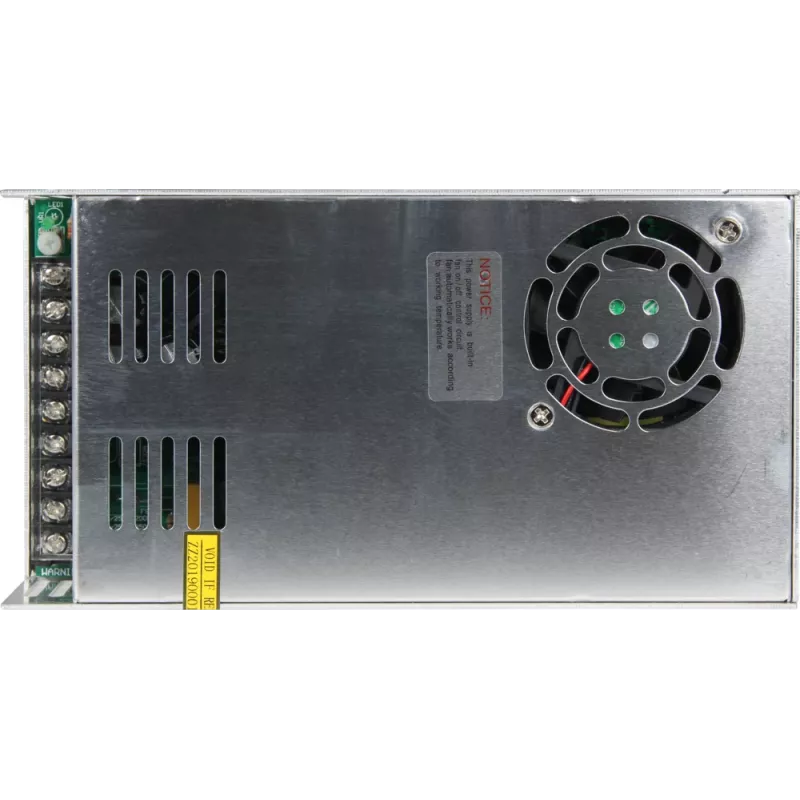

JOY-IT RD6006 NT - fonte de alimentação comutada fechada 400W 60V 6,6A jt-rd6006-nt

Deliver 400W of clean DC power with the JOY-IT RD6006 NT, an enclosed AC-DC switching power supply engineered for demanding applications. With a 60V output at 6.6A, it provides stable and efficient power conversion in a compact, fan-cooled enclosure.

Overview

The RD6006 NT converts 100-240V AC input into a regulated 60V DC output, making it suitable for industrial automation, LED lighting, test equipment, and other high-power DC devices. Its active cooling ensures reliable operation even under full load, while comprehensive protection features safeguard both the supply and connected equipment.

What stands out

• High efficiency: >85% reduces energy waste and heat generation.
• Robust protection: Overload, overvoltage, short circuit, and overtemperature protection.
• Low ripple and noise: <150mVp-p for clean power delivery.
• Wide operating temperature range: -10°C to +50°C.
• Convenient screw terminal connections for secure wiring.

Technical details

• Input voltage: 100-240V AC, 50/60 Hz
• Output voltage: 60V DC
• Output current: 6.6A DC
• Output power: 400W
• Efficiency: >85%
• Cooling: Active fan
• Ripple & noise: <150mVp-p
• Hold-up time: >20ms at 230V AC full load
• Operating temperature: -10°C to +50°C
• Operating humidity: 20-90% RH non-condensing
• Safety standards: EN60950-1, EN62368-1
• EMC: EN55032 Class B
• Connections: Screw terminal block (input and output)

Our verdict

A reliable and efficient enclosed power supply for professional use, with the protection and cooling needed for continuous operation.
