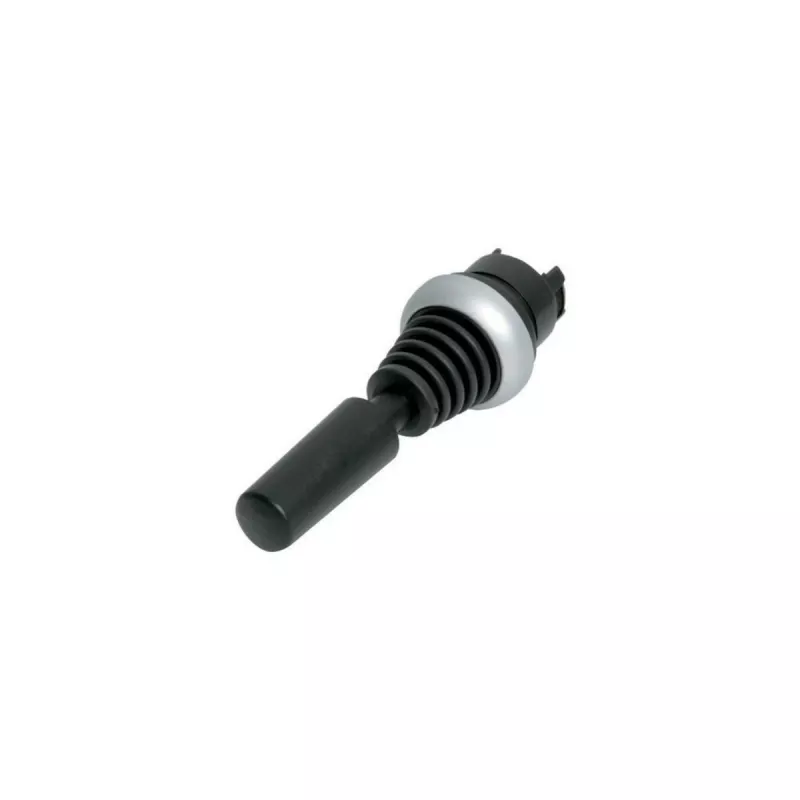

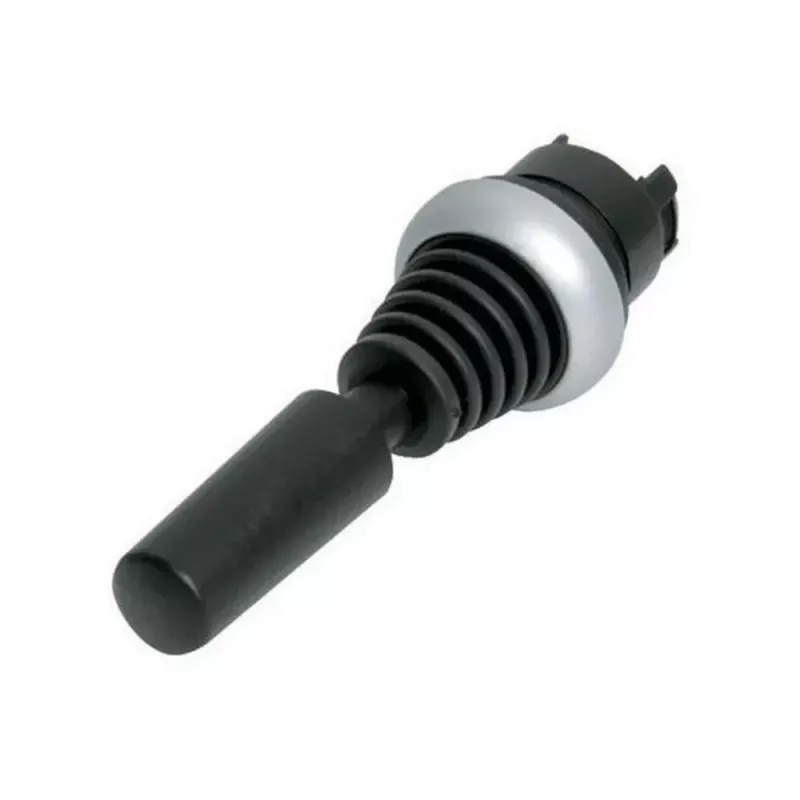

Joystick Eaton (M22-WJ2V) – atuador de pressão vertical de 2 posições, 22,5 mm

Control vertical motion with precision using the Eaton Joystick (M22-WJ2V). Designed for panel mounting, this 2-position momentary actuator provides reliable up/down switching for industrial control applications. Its 22.5mm mounting diameter fits standard cutouts, and the black plastic bezel and handle ensure durability and a professional appearance.

Who is it for

Ideal for machine builders, panel designers, and maintenance technicians who need a compact, robust joystick for manual control of hoists, lifts, or other equipment requiring vertical directional commands.

Main features

• 2-position momentary actuation (up/down)
• Vertical movement direction
• 22.5mm panel mounting diameter
• Black plastic bezel and handle
• Front protection: IP66, NEMA 4X, 13
• Compatible with Eaton M22 contact blocks

Specifications

• Series: Eaton Moeller M22
• Product Type: Joystick Actuator
• Number of Positions: 2
• Actuation Type: Momentary
• Direction of Movement: Vertical (Up/Down)
• Mounting Diameter: 22.5 mm
• Actuator Color: Black
• Operating Temperature Range: -25 to +70 °C
• Storage Temperature Range: -40 to +80 °C
• Mechanical Life: > 1,000,000 operations
• Bezel Material: Plastic
• Handle Material: Plastic
• Shock Resistance: 15 g (IEC/EN 60068-2-27)
• Vibration Resistance: 5 g (IEC/EN 60068-2-6)

Tips

Pair with Eaton M22 contact blocks to complete the switching function. Ensure the panel cutout is exactly 22.5mm for a secure fit. For outdoor or washdown environments, the IP66 rating provides protection against dust and powerful water jets.
