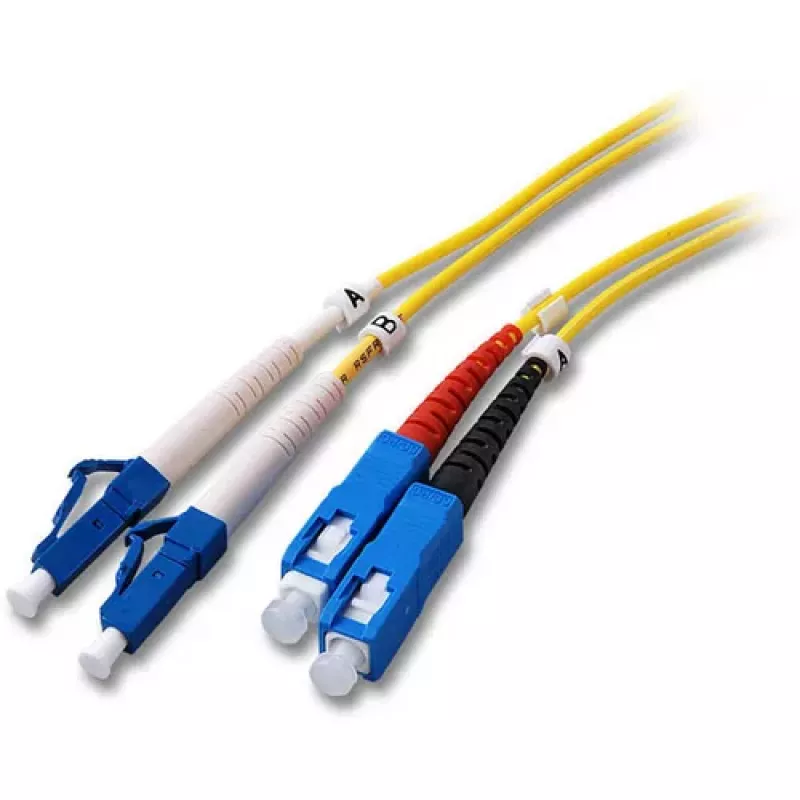

Jumper duplex EFB Elektronik LC-SC OS2 cabo de patch de fibra ótica monomodo, 9/125µm, LSZH, amarelo, 2,0 mm, 25 m

The EFB Elektronik O0360.25 Duplex Jumper LC-SC is a high-performance single-mode fiber optic patch cable designed for reliable data transmission in demanding network environments. With a 9/125µm core/cladding and OS2 standard, it ensures low signal loss and high bandwidth over long distances. The cable features LC to SC connectors with UPC polish, providing excellent insertion and return loss characteristics. The LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in confined spaces, emitting minimal smoke and toxic fumes in case of fire. The yellow jacket color indicates single-mode fiber, and the 2.0mm diameter offers flexibility while maintaining durability. This 25-meter cable is ideal for data centers, LAN, SAN, FTTx, and telecommunications applications.

Advantages

High-quality single-mode fiber ensures low attenuation and high data rates. LSZH jacket enhances safety in indoor installations. Duplex design supports bidirectional communication. UPC polished connectors minimize signal reflection. Robust construction ensures long-term reliability.

Suitable for

• Data centers
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Fiber to the x (FTTx)
• Telecommunications

Key specifications

• Product Type: Fiber Optic Patch Cable
• Cable Configuration: Duplex
• Fiber Type: Single-mode
• Fiber Standard: OS2
• Core/Cladding Diameter: 9/125 µm
• Connector A: LC
• Connector B: SC
• Connector Polishing: UPC
• Jacket Material: LSZH
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Cable Length: 25 m
• Insertion Loss: ≤ 0.3 dB (typical)
• Return Loss: ≥ 50 dB (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10D (20 mm)
• Ferrule Material: Ceramic
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is suitable for indoor use only. Pair with compatible SFP modules for best results.
