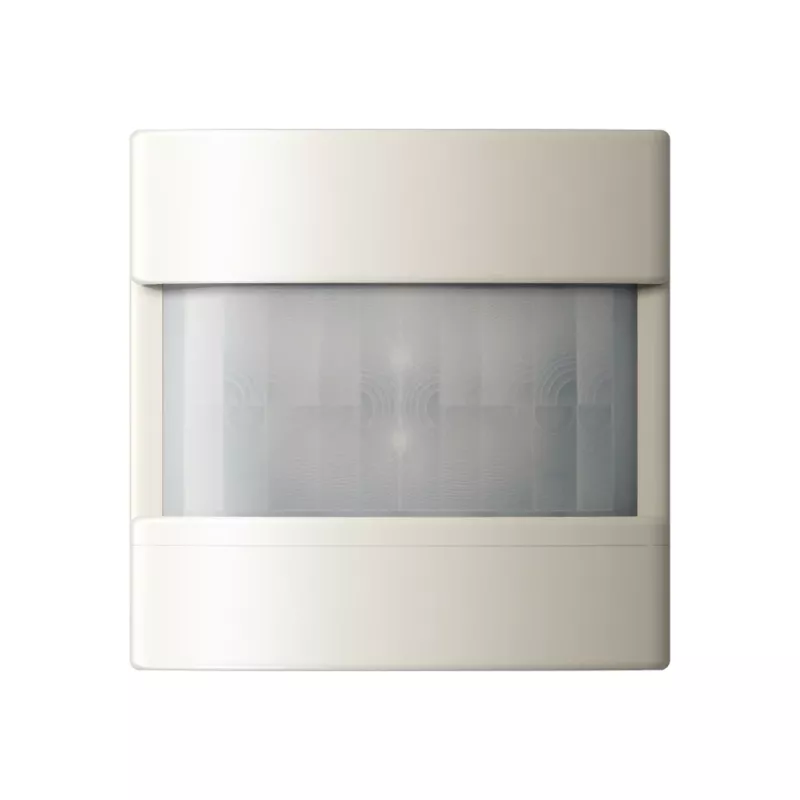

JUNG A17180 interruptor automático 1,1 m detetor de movimento PIR padrão

Install the JUNG A17180 automatic switch in a hallway or utility room to activate lighting when someone enters. The flush-mounted PIR sensor detects movement within a 180° field at a recommended height of 1.1 m, switching connected loads on and off automatically.

Key specifications

• Passive infrared (PIR) motion sensor
• Flush-mounted installation, recommended height 1.1 m
• Detection angle 180°, range up to 8 m front and 4 m sides
• Adjustable brightness threshold 5–1000 lux
• Adjustable time delay 10 s – 30 min
• Switching capacity up to 2300 W incandescent/halogen, 400 W LED
• Operating voltage 230 V AC, 50/60 Hz
• Standby power consumption approx. 0.5 W
• Colour: Alpine White (WW)
• Material: Thermoplastic (PC)

Why choose it

This automatic switch combines reliable motion detection with flexible settings for brightness and switch-off delay. It suits standard flush-mounted boxes and handles a wide range of lighting loads, including LED lamps.

Ideal use cases

• Hallways, staircases, and corridors
• Utility rooms and storage areas
• Commercial spaces requiring automatic lighting control

Good to know

The sensor is designed for indoor use with an IP20 rating and operates in ambient temperatures from -20 to +45 °C. Connection requires a 3-wire supply (L, N, switched L).
