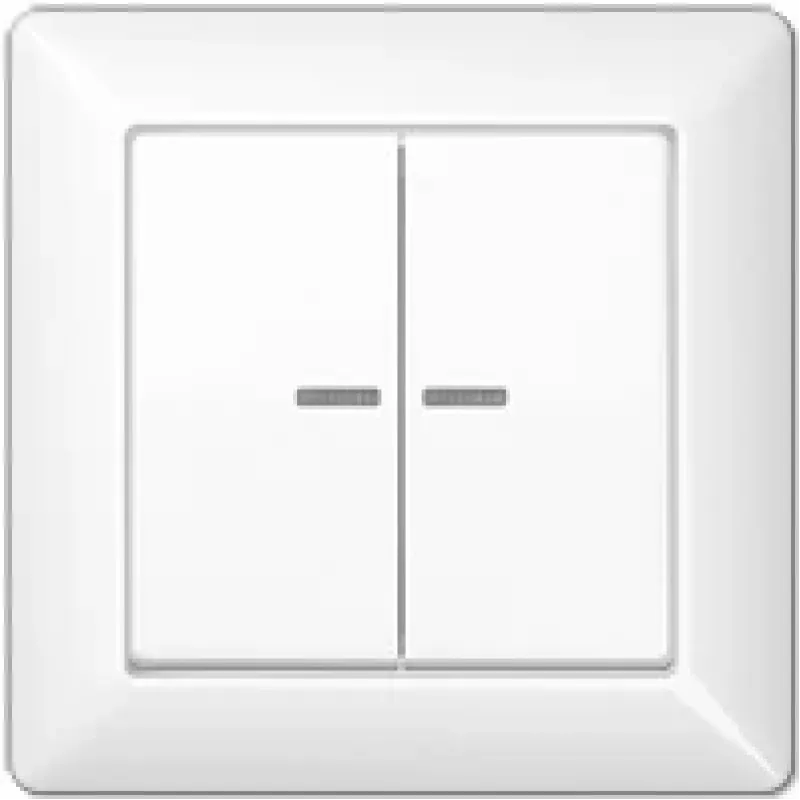

JUNG AS 590-5 KO5 WW Tecla com moldura integrada 2 módulos, com guia de luz, duroplástico, Série AS, branco alpino

The Jung AS 590-5 KO5 WW is a flush-mounted 2-way switch insert built on the proven AS 500 series platform. Its thermoset construction and screw terminals deliver the dependable switching performance expected in fixed installations, while the alpine white finish pairs cleanly with standard Jung rockers.

Highlights

• 2-way switching function for staircases and corridors
• Thermoset body for high mechanical stability
• Screw terminals accept 1.5–2.5 mm² conductors
• Rated for 250 V AC, 10 A
• Halogen-free material
• VDE certified

In daily use

This insert is the core of a rocker switch system. It mounts flush in a standard wall box and is intended to be completed with a suitable Jung rocker from the AS 500 range. The screw terminals provide a secure connection for solid or stranded conductors, and the thermoset body resists heat and impact over years of operation.

Full specifications

• Product type: Switch insert
• Switch function: 2-way switch
• Series: Jung AS 500
• Colour: Alpine white
• Material: Thermoset
• Mounting type: Flush-mounted
• Nominal voltage: 250 V AC
• Nominal current: 10 A
• Connection type: Screw terminals
• Number of rockers: 1
• Halogen-free: Yes
• Protection class: IP20
• Suitable for: Rocker
• Terminal capacity: 1.5–2.5 mm²
• Operating temperature: -5 to +40 °C
• Certification: VDE
• Type of actuation: Rocker/toggle
• Illumination: Not illuminated

Final note

A reliable 2-way switch insert for flush mounting, designed to be paired with Jung AS 500 rockers.
