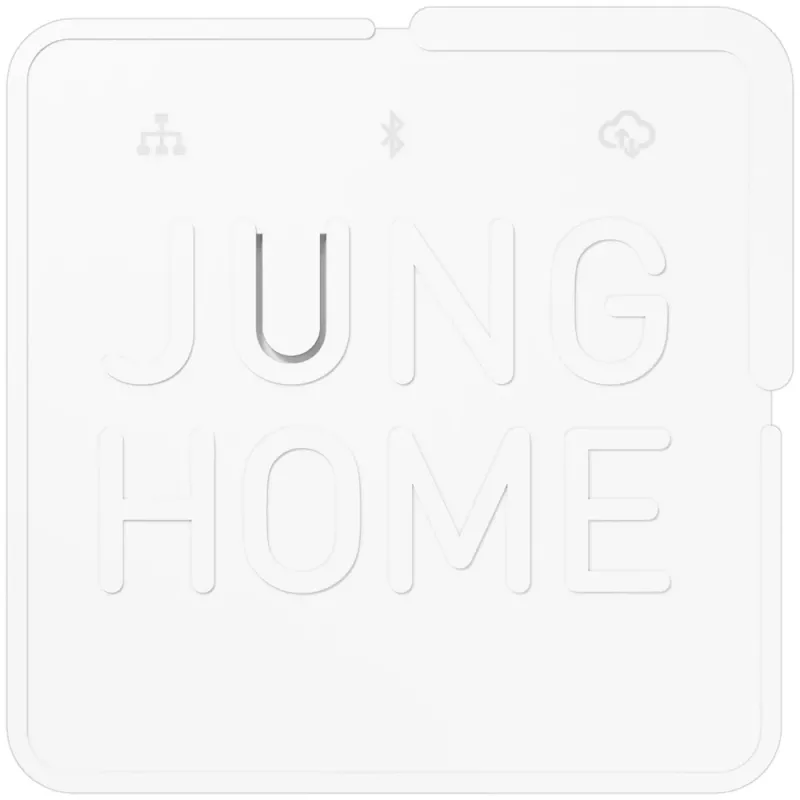

JUNG BTSGATEWAY JUNG HOME Gateway (BTSGATEWAY)

The JUNG BTSGATEWAY is a central control unit for the JUNG HOME smart home system. It enables the integration of Bluetooth Mesh devices, allowing for centralized control, automation, and remote access via the JUNG HOME App. The gateway is designed for DIN rail mounting and provides reliable connectivity through Ethernet or Wi-Fi.

Advantages

Central control of all JUNG HOME devices; easy setup and configuration via app; secure encrypted communication; regular firmware updates for enhanced functionality; compact design for space-saving installation.

Suitable for

• Smart home installations requiring a central gateway
• Residential and commercial buildings
• Integration with JUNG HOME Bluetooth Mesh devices

Key specifications

• Product Type: Smart Home Gateway
• Radio Standard: Bluetooth Mesh (JUNG HOME)
• Network Connectivity: Ethernet (RJ45), Wi-Fi
• Power Supply: 230 V AC, 50/60 Hz
• Power Consumption: Max. 2 W

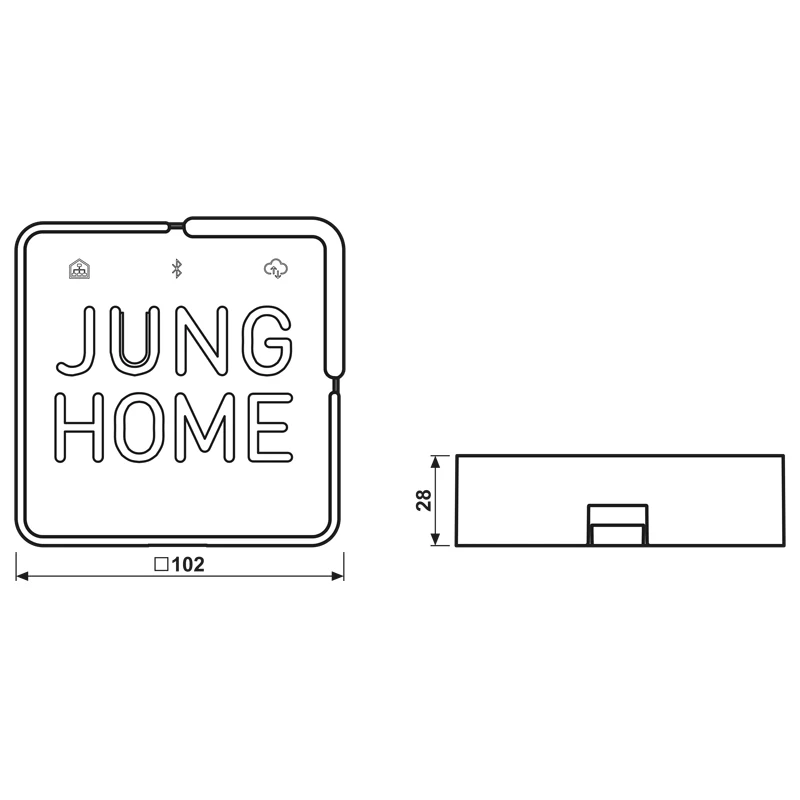

• Mounting Type: DIN rail (4 TE)
• Control Functions: Central control, Visualization, Automation, Remote access, Scene management, Time programs
• App Control: JUNG HOME App (iOS/Android)
• Cloud Integration: JUNG Cloud for remote access
• Interfaces: 1x RJ45 Ethernet, 1x USB (service)
• Protection Class: IP20
• Operating Temperature: 0 °C to +45 °C
• Storage Temperature: -20 °C to +70 °C
• Relative Humidity: 5% to 93% (non-condensing)
• Housing Material: Plastic
• Color: Light grey
• Firmware Updates: Via JUNG HOME App / Cloud
• Security: Encrypted communication

Recommendations

For optimal performance, ensure the gateway is connected to a stable network and placed in a central location. Use the JUNG HOME App for initial setup and ongoing management.
