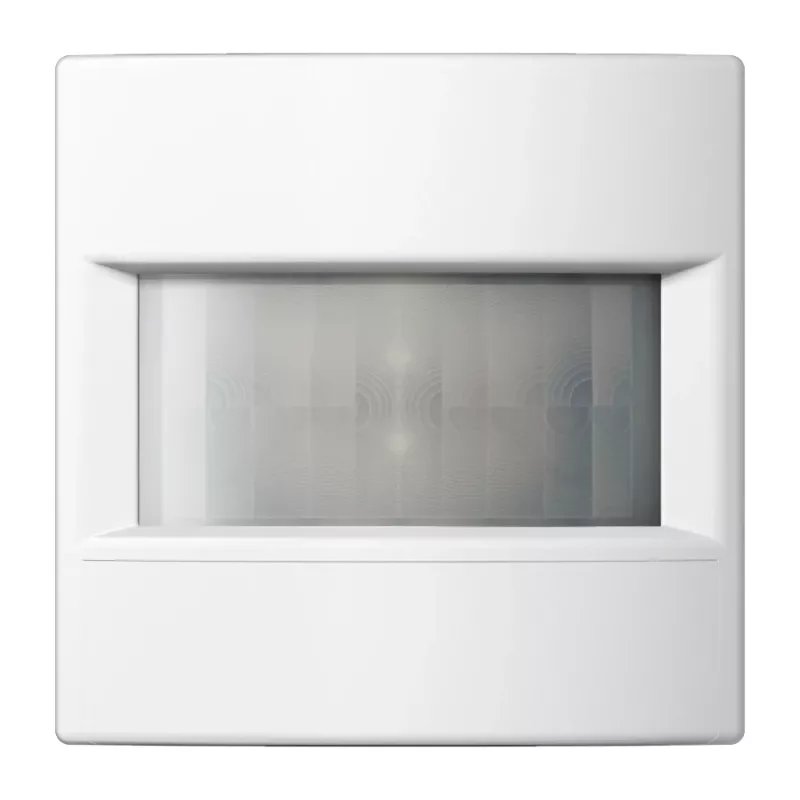

JUNG KNX Detetor de presença Standard 1,10 m LS 3181 WW (LS3181WW) detetor de presença branco alpino

The JUNG KNX Automatic Switch LS 3181 WW is a high-quality presence detector and motion sensor designed for flush-mounted installation in KNX building automation systems. With an optimal mounting height of 1.10 m, it provides reliable detection for presence and motion in indoor environments. The device features passive infrared (PIR) technology and integrates a brightness sensor with a range of 10 to 2000 Lux. It is compatible with the JUNG LS-Design series (e.g., LS 990, LS design, LS plus) and comes in an elegant Alpine White (Alpinweiß) finish.

Advantages

This KNX automatic switch offers two independent channels for controlling lighting, HVAC, or other loads. It supports fully automatic and semi-automatic operating modes, and parameters such as sensitivity, time delay, and brightness threshold are adjustable. Additional functions include short-term presence, staircase function, master/slave operation, and scene control, providing flexibility for various automation scenarios.

Suitable for

• Indoor KNX building automation systems
• Presence and motion detection in offices, meeting rooms, classrooms, and residential spaces
• Integration with JUNG LS-Design switch ranges

Key specifications

• Product Type: KNX Presence Detector / Automatic Switch
• Bus System: KNX
• Mounting Height (Optimal): 1.10 m
• Detection Technology: Passive Infrared (PIR)
• Detection Area (Presence): approx. 10 x 10 m (at 1.10 m mounting height)
• Detection Area (Motion): approx. 16 x 16 m (at 1.10 m mounting height)
• Integrated Sensors: Motion sensor, Presence sensor, Brightness sensor
• Brightness Sensor Range: 10 - 2000 Lux
• Color: Alpine White
• Design Line Compatibility: JUNG LS-Design series (e.g., LS 990, LS design, LS plus)
• Protection Class: IP20
• Operating Temperature: -5 to +45 °C
• Channels: 2 independent channels
• Operating Modes: Fully automatic, Semi-automatic
• Adjustable Parameters: Sensitivity, Time delay, Brightness threshold
• Additional Functions: Short-term presence, Staircase function, Master/slave operation, Scene control
• Installation Type: Flush-mounted
• Material: Thermoplastic (PC)
• Supply Voltage: Via KNX bus

Recommendations

For optimal performance, install the device at the recommended height of 1.10 m. Ensure the KNX bus is properly connected and configured. This device is ideal for creating energy-efficient and comfortable lighting and HVAC control in smart buildings.
