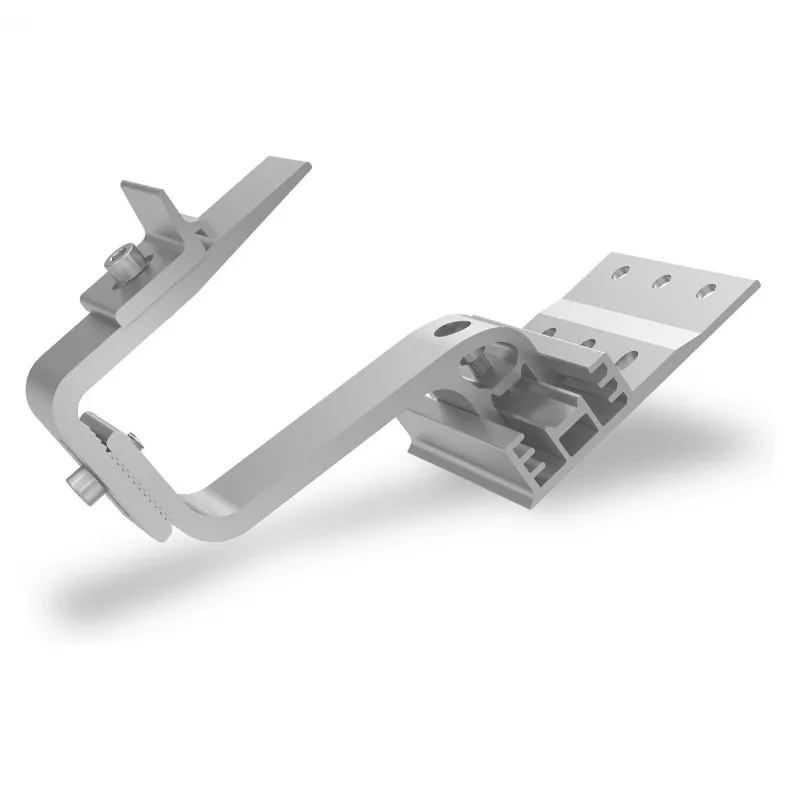

Gancho de telhado K2 Systems SingleHook 4S para montagem fotovoltaica, aço inoxidável, altura ajustável, certificado TÜV

Securing solar panels on tiled or slate roofs demands a mounting component that combines strength, adjustability, and long-term corrosion resistance. The K2 Systems SingleHook 4S roof hook delivers exactly that, providing a reliable anchor point for PV rails on pitched roofs. Crafted from high-grade stainless steel (1.4301 / AISI 304), it withstands harsh weather and ensures decades of service. Its adjustable height (40–55 mm under the tile) accommodates various batten heights and roof profiles, while the slotted base plate allows precise positioning. With TÜV Rheinland certification, this hook meets stringent safety and quality standards, making it a trusted choice for professional solar installers.

Who is it for

Professional PV installers and roofers working on residential or commercial pitched roofs with tile or slate coverings. It is ideal for projects using K2 SolidRail or CrossRail systems, where a single rail is mounted per hook. The hook suits both new installations and retrofits, offering flexibility in rafter spacing and batten alignment.

Main features

• High-grade stainless steel (AISI 304) for excellent corrosion resistance and durability.
• Adjustable height from 40 to 55 mm under the tile, allowing fine-tuning for different roof profiles.
• Slotted base plate (140 x 55 x 8 mm) with two 9 mm holes for secure fastening to rafters or battens.
• Compatible with K2 SolidRail and CrossRail systems; supports one rail per hook.
• TÜV Rheinland certified for safety and reliability.
• Natural stainless steel finish blends with roof aesthetics.

Specifications

• Product type: Roof hook
• Material: Stainless steel (1.4301 / AISI 304)
• Roof compatibility: Tiled roofs, slate roofs
• Rail system compatibility: K2 SolidRail, K2 CrossRail
• Height adjustment (under tile): 40 - 55 mm
• Base plate dimensions (L x W x T): 140 x 55 x 8 mm
• Hook dimensions (W x T): 30 x 6 mm
• Number of fastening holes: 2
• Fastening hole diameter: 9 mm
• Overall height (adjustable range): 120 - 135 mm
• Corrosion resistance: High
• Certification: TÜV Rheinland
• Mounting method: Screw to rafter/roof battens
• System component: K2 Mounting System
• Number of rails supported: 1 (SingleHook)
• Finish: Natural stainless steel

Tips

For optimal load distribution, position the hook directly over a rafter and use appropriate stainless steel screws. Verify the batten height before installation to select the correct adjustment range. When pairing with K2 rails, ensure the rail is properly seated and secured according to K2's installation guidelines. For slate roofs, consider using a slate bracket accessory to protect the slate and maintain waterproofing.
