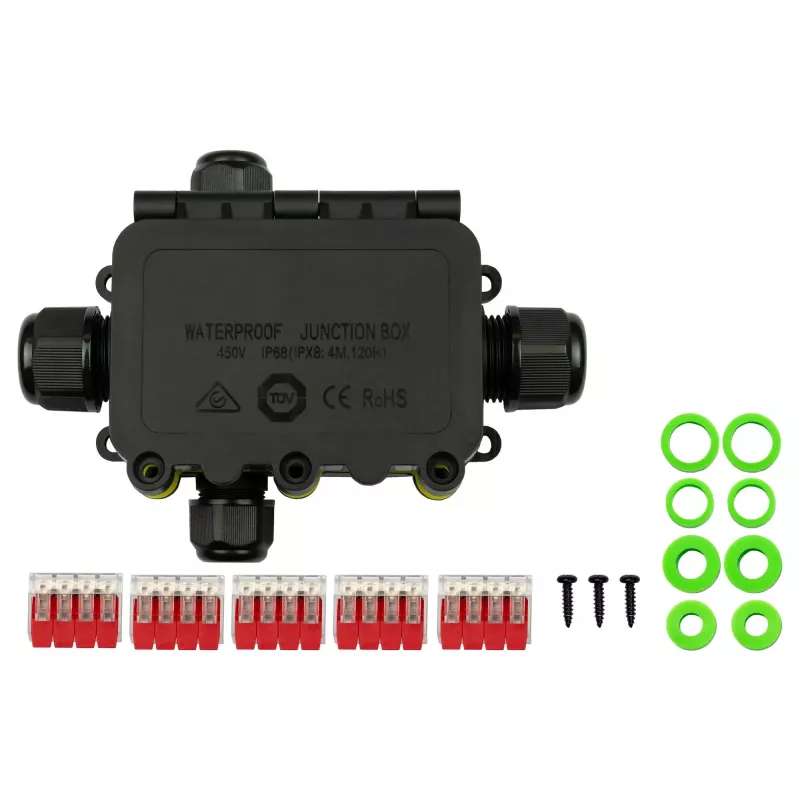

KABELMEISTER caixa de ligação de cabos IP68 sem ferramentas de 4 vias, preto

Outdoor electrical connections often fail due to moisture, dust, and mechanical stress. The KABELMEISTER 4-Way Tool-Free IP68 Cable Junction Box solves this by providing a completely sealed, waterproof enclosure that requires no tools for installation. Simply insert the cables, snap the lid shut, and your connection is protected against submersion, UV exposure, and extreme temperatures.

Who is it for

This junction box is ideal for electricians, landscapers, and DIY enthusiasts who need reliable, maintenance-free cable connections in harsh environments. Use it for garden lighting, pond pumps, underground wiring, or any outdoor electrical project where safety and durability are paramount.

Main features

• Tool-free screwless terminals for fast, secure connections without special tools
• IP68 waterproof rating: withstands submersion up to 4 meters for 72 hours
• 4 cable entries with silicone seals accommodate cable diameters from 4 to 14 mm
• Durable PA66 housing with UV resistance and UL94-V2 flammability rating
• Supports flexible and rigid conductors from 0.5 to 2.5 mm², rated up to 450V AC / 24A
• Operating temperature range from -40°C to +105°C for extreme climates
• CE and RoHS certified for safety and environmental compliance

Specifications

• Product type: Cable junction box
• Number of ways: 4
• Connection type: Tool-free screwless terminals
• Ingress protection: IP68
• Rated voltage: Max. 450V AC
• Rated current: Max. 24A
• Conductor cross-section (flexible): 0.5 - 2.5 mm²
• Conductor cross-section (rigid): 0.5 - 2.5 mm²
• Cable diameter range: 4 - 14 mm per entry
• Housing material: PA66 (Polyamide 66)
• Seal material: Silicone
• Operating temperature: -40°C to +105°C
• Max. water depth: 4 meters (up to 72 hours)
• UV resistance: Yes
• Flammability rating: UL94-V2
• Certifications: CE, RoHS
• Mounting type: Surface mount
• Colour: Black

Tips

For best results, ensure the cable outer diameter is within the specified range to maintain a watertight seal. When installing underground, place the box in a protective conduit or sand bed to avoid mechanical damage. No special tools are required, but a standard cable stripper is recommended for precise insulation removal.
