Kaiser Elektro caixa de derivação encastrada UP 1172-09, cinzento, 10 entradas de cabos, PP, isenta de halogéneos, IP30

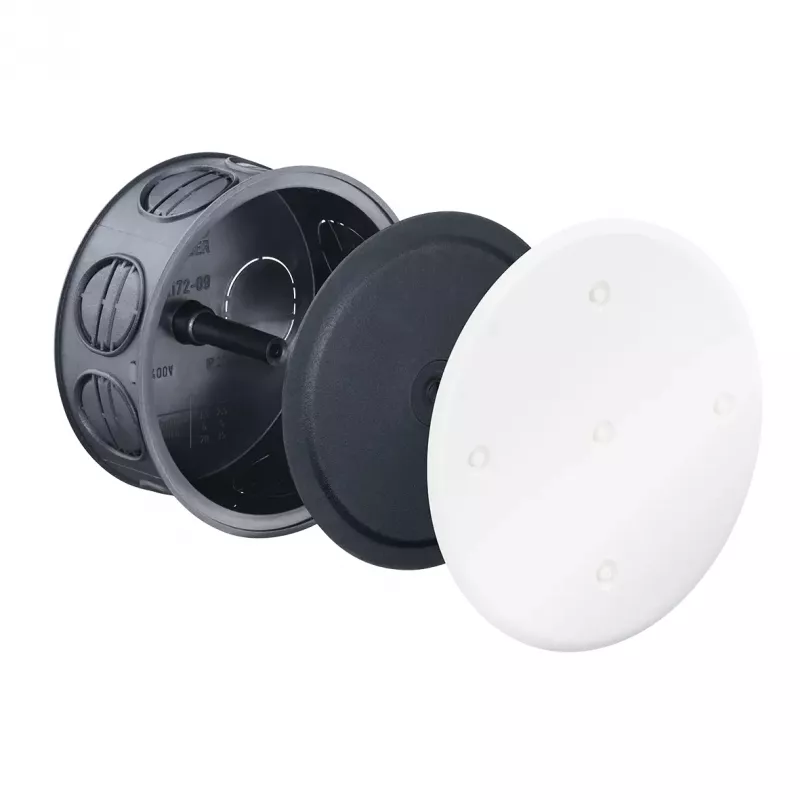

The Kaiser Elektro Flush-Mounted Junction Box UP 1172-09 is a high-quality junction box designed for dry interior installations. Manufactured from polypropylene (PP), it is halogen-free and tested to 850 °C glow wire, ensuring safety and reliability. The box features 10 pre-punched cable entries (8x Ø20 mm, 2x Ø25 mm) and a snap-on lid for quick installation. With an internal depth of 49 mm, it provides ample space for wiring connections. Rated for up to 400 V and 16 A, it complies with DIN EN 60670-1 and VDE 0606-1 standards.

Advantages

Halogen-free material reduces toxic smoke in case of fire. Snap-on lid allows tool-free access. Pre-punched knockouts simplify cable entry preparation. Compact design fits standard flush-mounted boxes.

Suitable for

• Dry interior electrical installations
• Junction and connection points in walls or ceilings
• Use with cables up to 25 mm diameter

Key specifications

• Installation: Flush-mounted (UP)
• Material: Polypropylene (PP)
• Halogen-free: Yes
• Glow wire test: 850 °C
• Protection class: IP30 (with lid)
• Number of cable entries: 10 (8x Ø20 mm, 2x Ø25 mm)
• Entry type: Pre-punched knockouts
• Lid type: Snap-on
• Internal depth: 49 mm
• Colour: Grey
• Rated voltage: 400 V
• Rated current: 16 A
• Standards: DIN EN 60670-1, VDE 0606-1

Recommendations

For optimal performance, use with appropriate cable glands or connectors. Ensure the box is securely mounted and the lid is properly closed to maintain IP30 protection.
