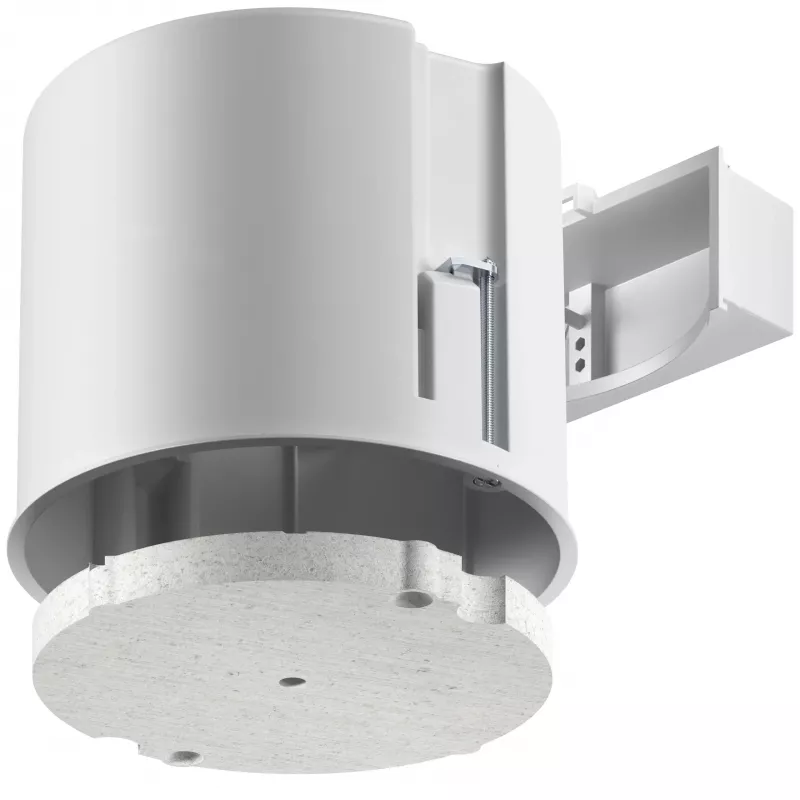

Kaiser Elektro ThermoX Caixa universal de aparelhagem com frente universal 9300-22

The Kaiser Elektro ThermoX 9300-22 is a high-performance universal device box designed for thermally insulated walls. It features an integrated thermal bridge prevention system and an airtight design, ensuring energy efficiency and compliance with modern building standards. The box comes with a universal front part, making it suitable for various installation scenarios.

Advantages

This device box offers excellent thermal insulation performance, preventing heat loss and condensation. Its halogen-free plastic material ensures safety and environmental friendliness. The flexible sealing membranes allow for easy cable entry, while the screw mounting provides secure fastening. The box is compatible with masonry, concrete, and cavity walls.

Suitable for

• Installation in thermally insulated walls
• Mounting of electrical devices with a diameter of 68 mm
• Applications requiring airtight and thermal bridge-free installation
• Use in residential and commercial buildings

Key specifications

• Box Type: Universal Device Box
• Installation Environment: Thermally Insulated Walls
• Thermal Bridge Prevention: Integrated
• Airtight Design: Yes
• Device Mounting Diameter: 68 mm
• Installation Depth: 61 mm
• Front Part Outer Diameter: Approx. 120 mm
• Material: Halogen-free Plastic
• IP Protection Rating: IP30 (installed)
• Cable Entry Type: Flexible Sealing Membranes
• Number of Cable Entries: Multiple
• Device Fastening: Screw Mounting
• Wall Compatibility: Masonry, Concrete, Cavity Walls
• Thermal Insulation Performance: High
• Standard Compliance: DIN 49073-1
• Product Series: Kaiser ThermoX

Recommendations

For optimal performance, ensure proper installation according to the manufacturer's guidelines. This product is ideal for energy-efficient buildings and renovations where thermal integrity is critical.
