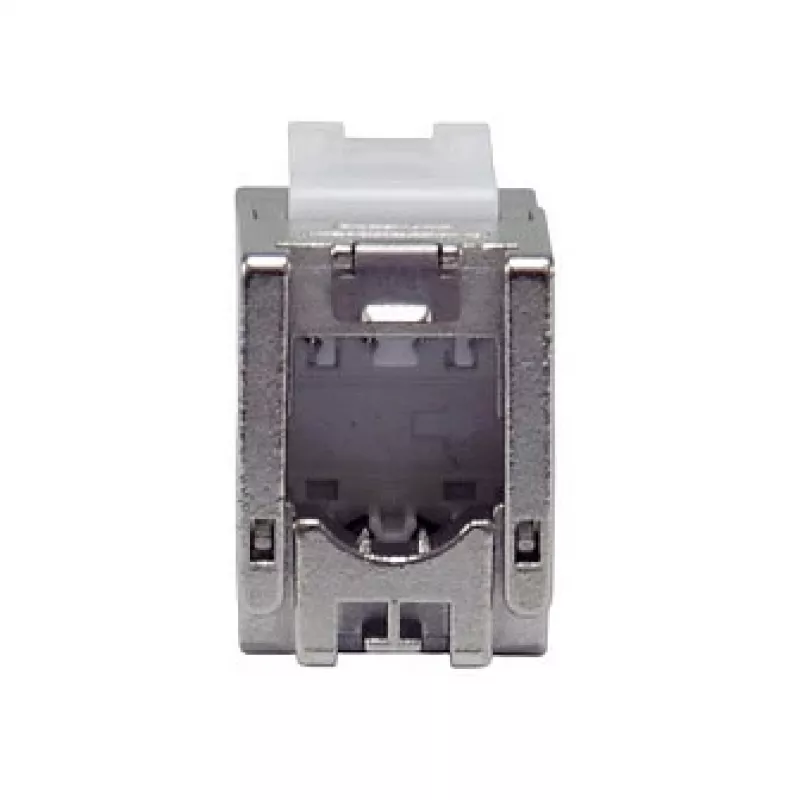

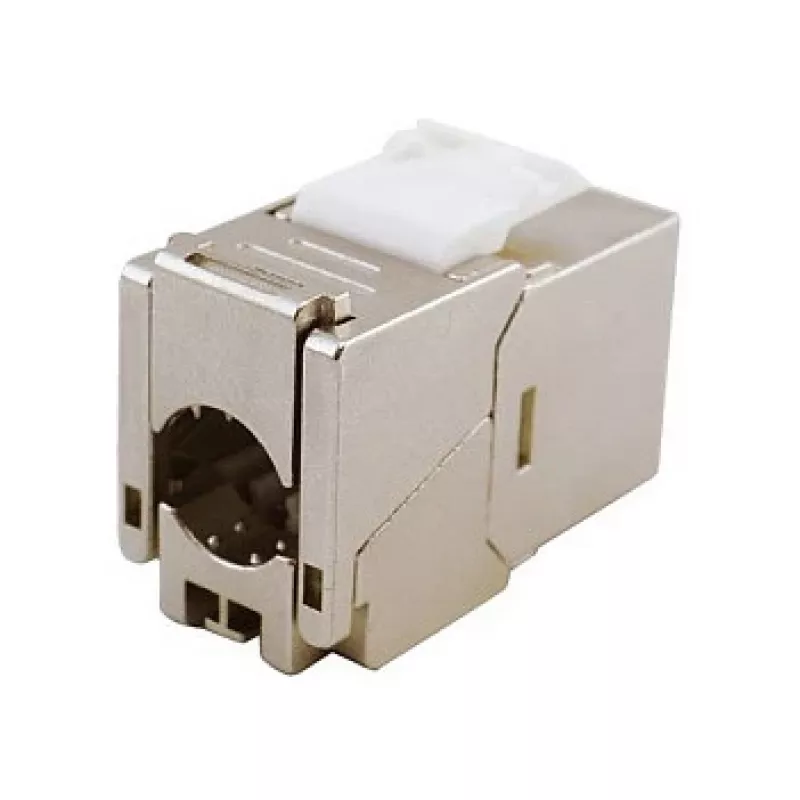

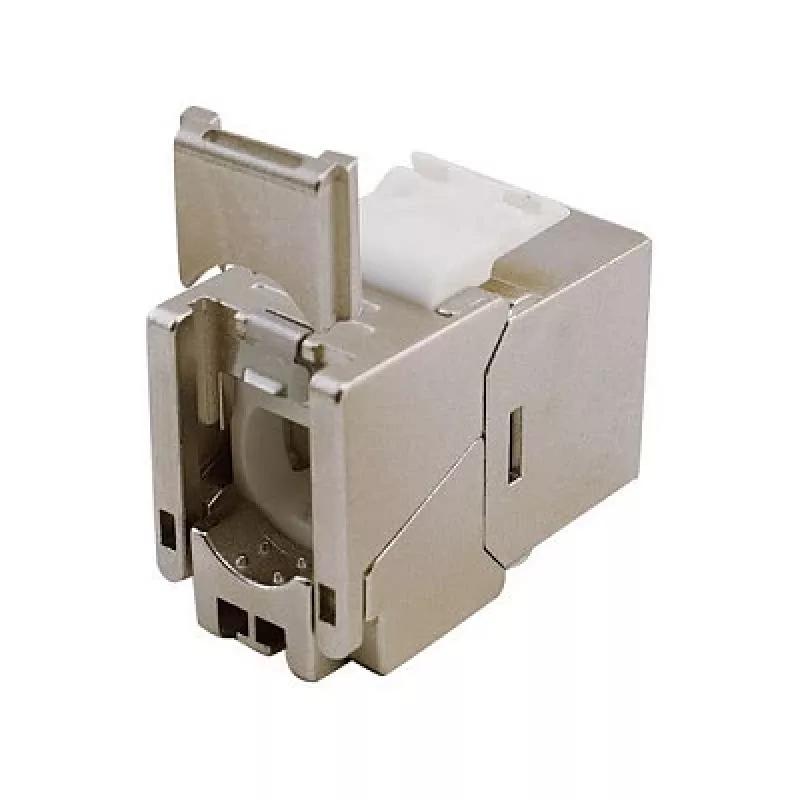

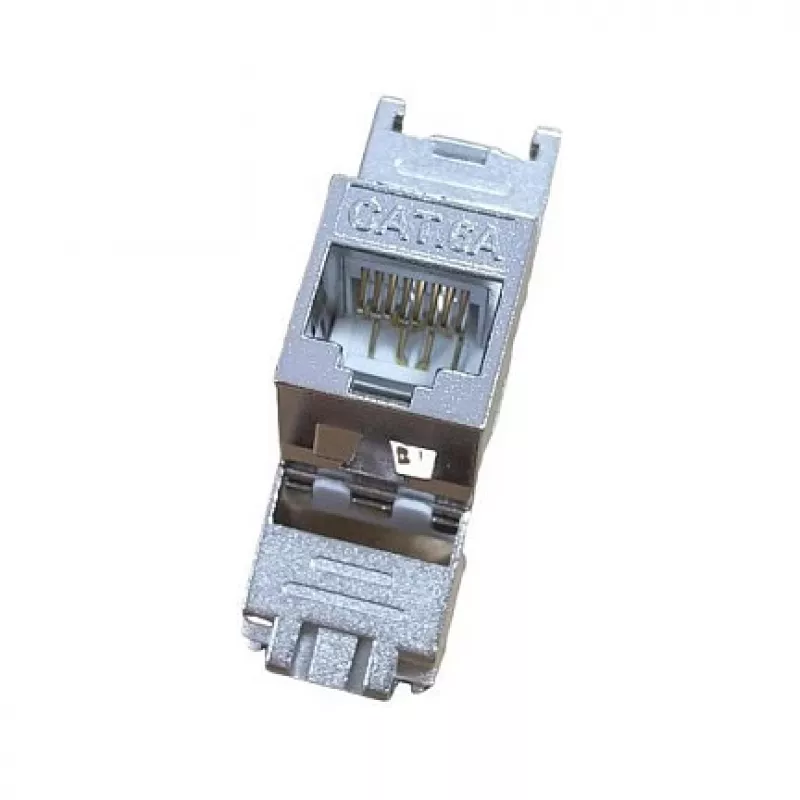

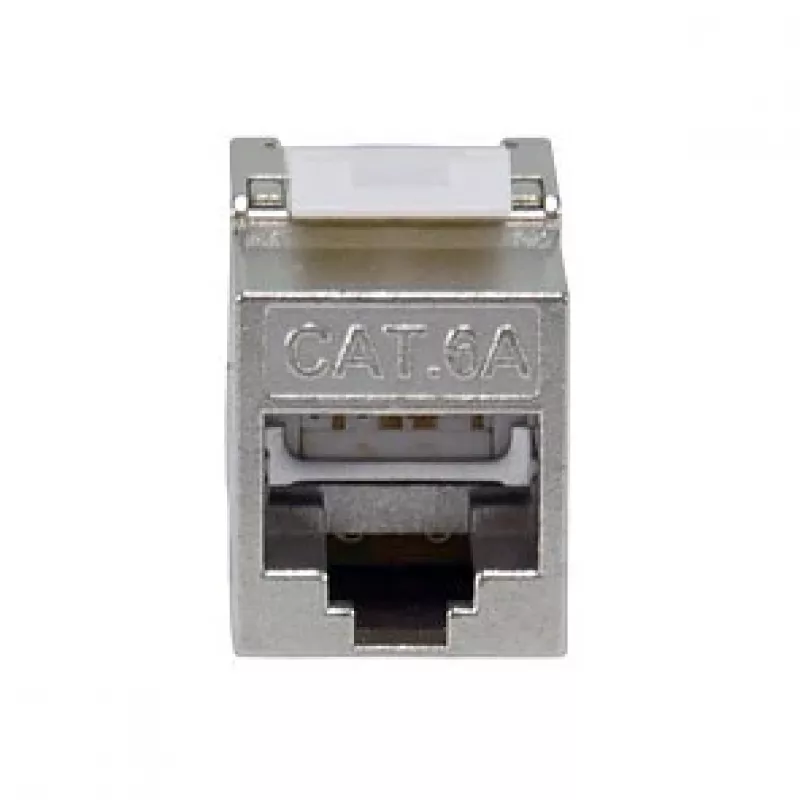

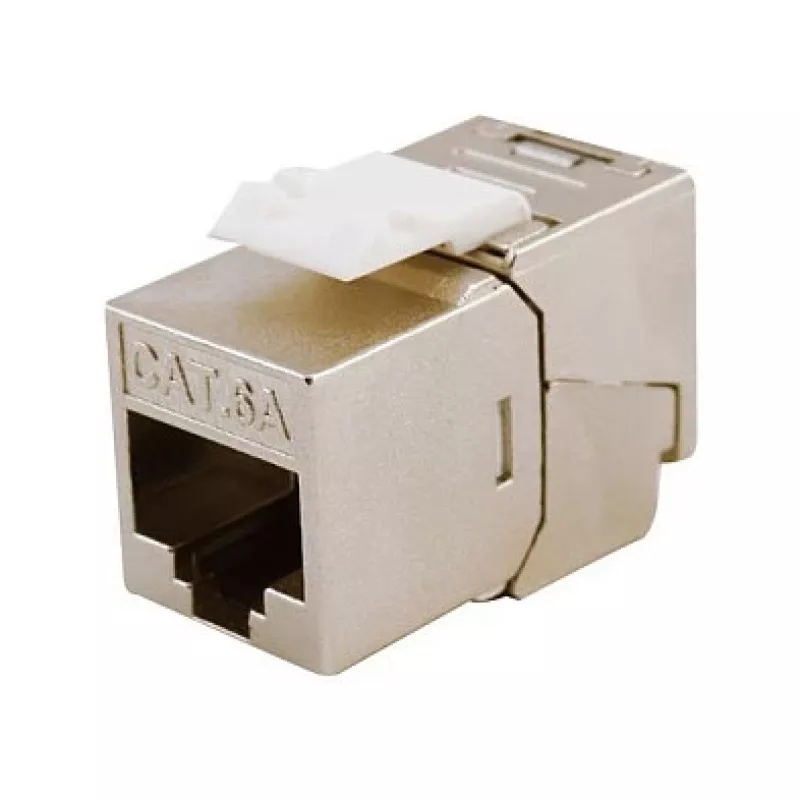

Keystone Jack Cat.6A blindado fino, EQUIP 767223, sem ferramentas, RJ-45, plano, prateado, 8 unid.

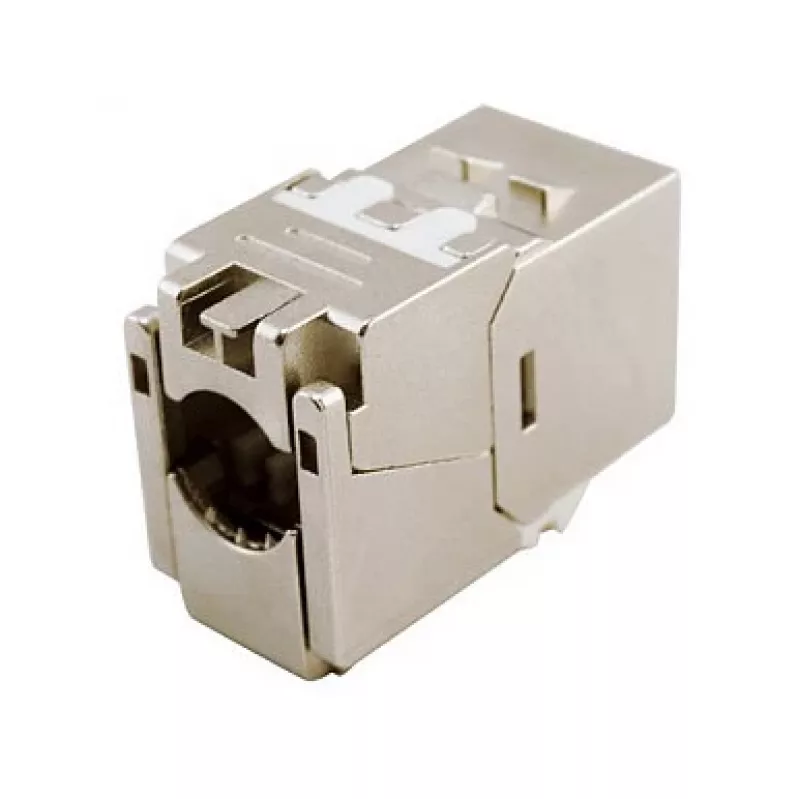

The Shielded Cat.6A Slim Keystone Jack by EQUIP (model 767223) is a tool-free, slim-profile RJ-45 connector designed for high-density structured cabling. The silver, flat keystone jack supports Cat.6A performance up to 500 MHz and 10GBase-T transmission, and is supplied as an 8-piece pack. Its shielded design reduces electromagnetic interference and it is compatible with standard keystone wall plates, patch panels and modular faceplates for space-saving terminations in commercial and residential networks.

Advantages

The toolless termination simplifies installation and reduces setup time while maintaining a secure connection. Robust shielding provides improved EMI/RFI protection to preserve signal integrity for 10 Gigabit Ethernet. The slim, flat form factor allows installation in high-density panels and narrow faceplates without sacrificing performance. Color-coded IDC (T568A/T568B) and LSA connector design ensure consistent, reliable terminations for cables with conductors from 22 AWG to 26 AWG.

Suitable for

• High-density patch panels and server racks
• Keystone wall plates and modular faceplates
• 10GBase-T LAN and data center applications
• PoE, PoE+ and PoE++ powered devices

Key specifications

• Brand: EQUIP, Model: 767223
• Category: Cat.6A (Class E), 500 MHz
• Transmission: 10GBase-T (10 Gbit/s)
• Connector: Shielded RJ-45 female, keystone format
• Termination: Tool-free / LSA, color-coded T568A/T568B
• Cable support: 22 AWG – 26 AWG
• PoE support: PoE / PoE+ / PoE++
• Material / Finish: Silver, flat design
• Certifications: GHMT; compliant with ISO/IEC 11801 and EN 50173 (Class E)

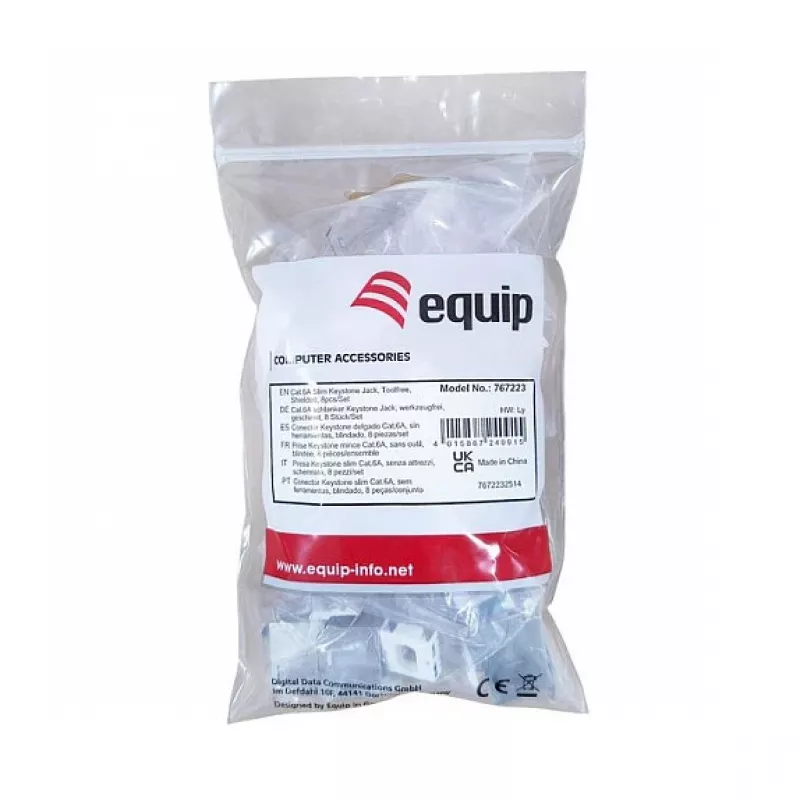

• Pack quantity: 8 pcs (selling unit)
• Dimensions (single jack): 14.5 × 29 × 19.6 mm
• EAN: 4015867240915

How to use

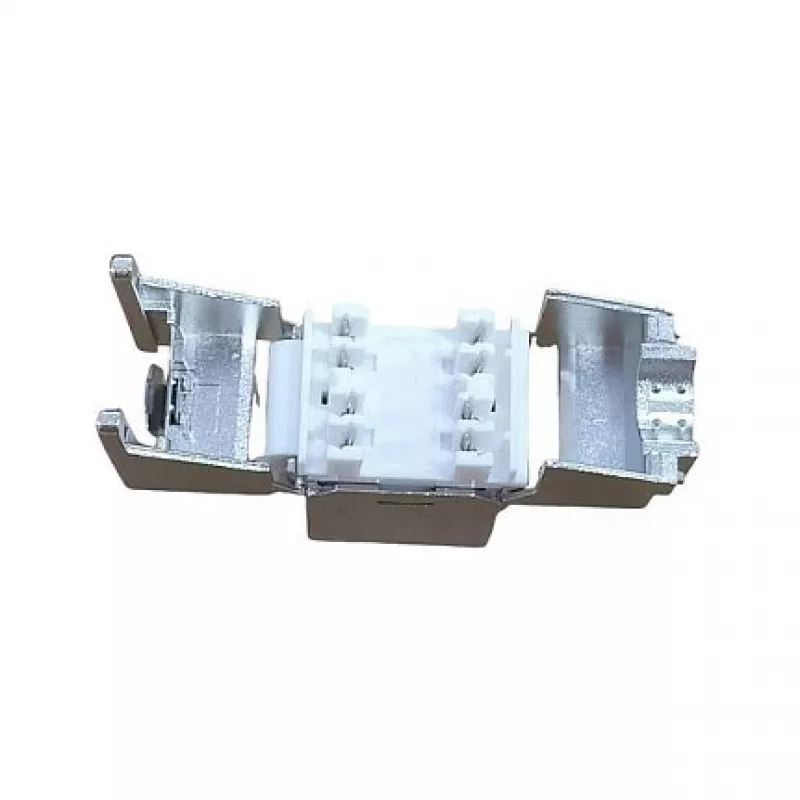

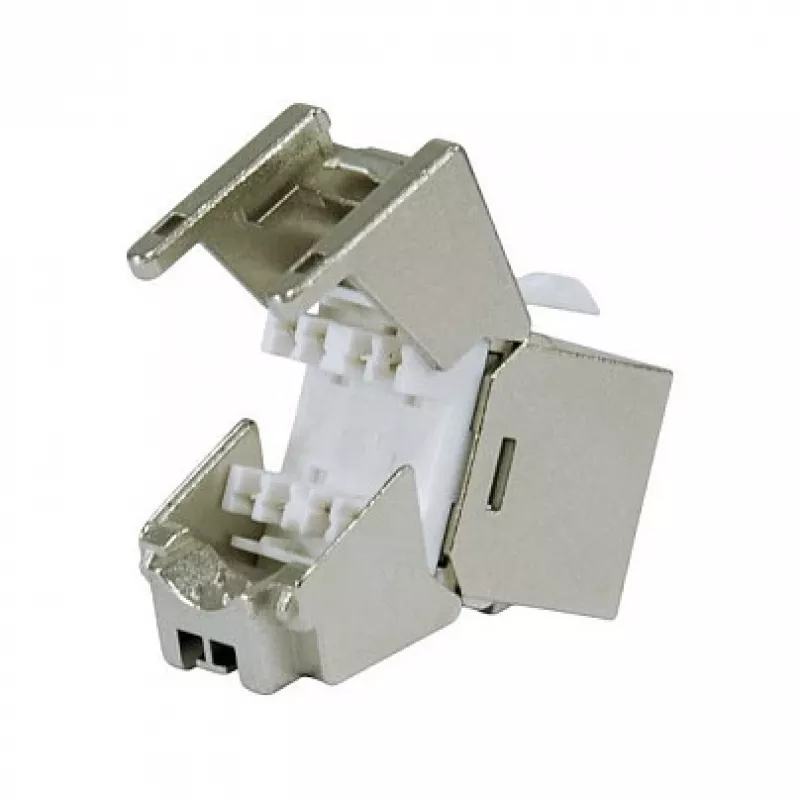

Insert the jack into a compatible keystone opening on a wall plate or patch panel. Prepare the cable by stripping the outer sheath and arranging conductors according to the printed T568A or T568B color code. Press each conductor into the LSA slots following the toolless termination procedure until they click into place and the excess conductor is trimmed by the IDC mechanism. Ensure the shield is correctly bonded to the connector and panel grounding as required. Snap the keystone jack firmly into the plate or panel and test the link with appropriate network test equipment to verify continuity and performance.

Recommendations

Use the Shielded Cat.6A Slim Keystone Jack in properly grounded installations and with shielded patch panels or metal faceplates to ensure effective EMI protection. Follow T568A/T568B wiring standards consistently at both ends and verify connections with a cable tester supporting Cat.6A/10GBase-T performance.
