Módulo Keystone compacto Digitus CAT 6A, blindado, montagem sem ferramentas, conector, 4 unid.

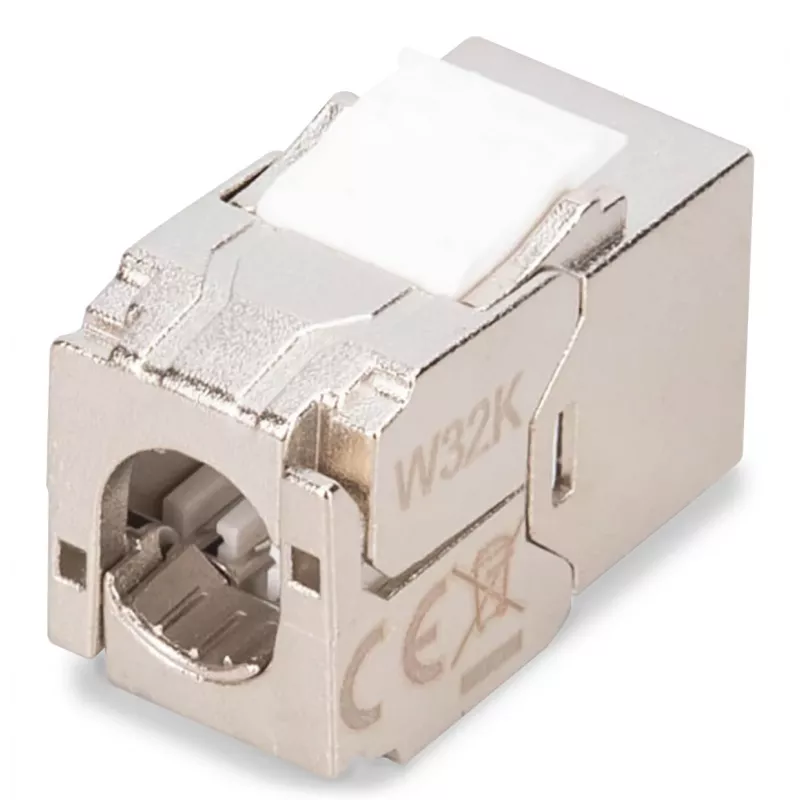

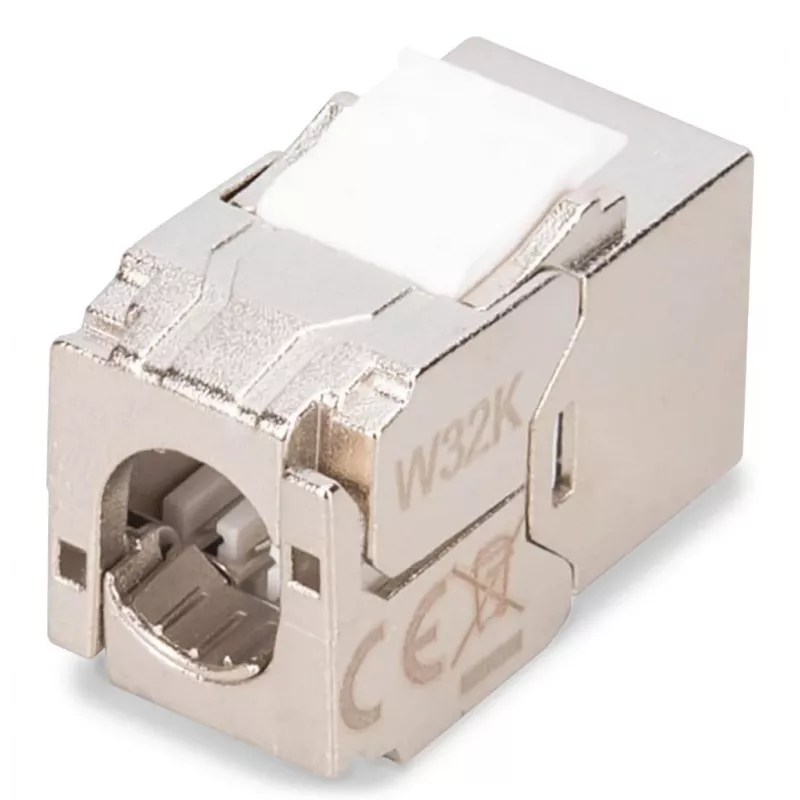

The Digitus CAT 6A compact keystone module (DN-93615-S-4) is a shielded, tool-free mounting connector designed for professional network installations. Packaged as a set of four, the module supports Cat6A 10GBase-T up to 500 MHz and offers 360° shield contacting for improved signal integrity. Its compact zinc die-cast housing with nickel plating fits into 19" 1U panels and design-compatible junction boxes while providing an RJ45 (8P8C) female socket and LSA insulation displacement connectors for quick field assembly.

Advantages

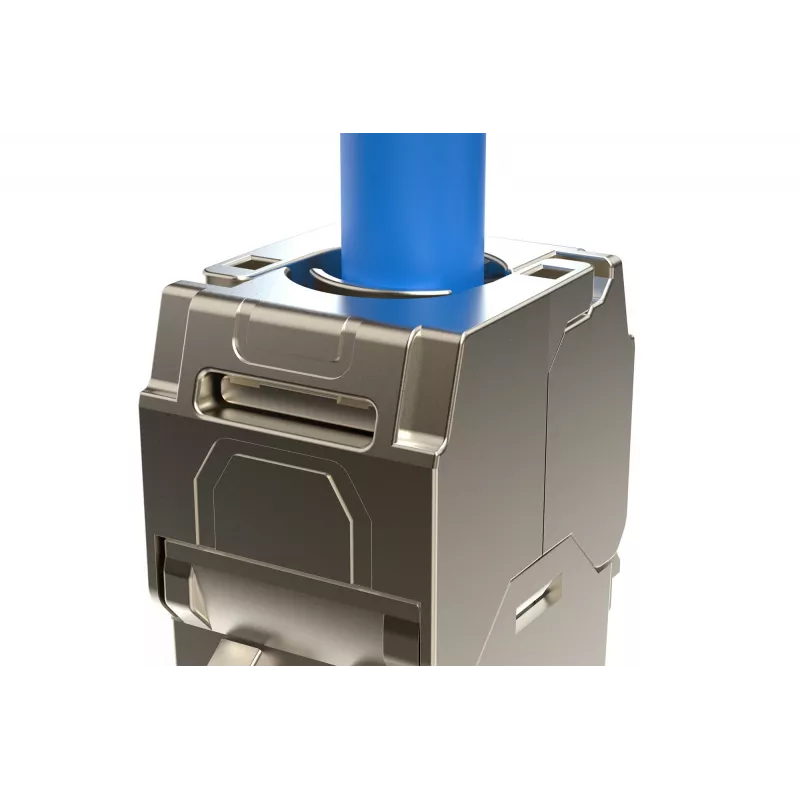

The module enables fast, tool-free installation using color-coded LSA strips (EIA/TIA 568 A & B) and includes a dust protection cap for the RJ45 socket. It supports PoE standards IEEE 802.3af/at/bt (including 4PPoE in permanent link), offers robust 360° shield contacting, and features a reclosable intelligent cable manager and strain relief for reliable cable fixation. Contacts are gold-plated over nickel to ensure stable electrical connections and durability in professional environments.

Suitable for

• High-speed Ethernet installations (10GBase-T) in server racks and distribution panels
• Field assembly and on-site wiring without special tools
• Modular junction boxes and design-compatible faceplates
• PoE and PoE+ deployments including 4PPoE permanent link applications

Key specifications

• Category: Cat6A, 10GBase-T, 500 MHz
• Standards: ISO/IEC 11801 (3rd Edition), EN 50173-1
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE in permanent link)
• Connector: RJ45 female (8P8C)

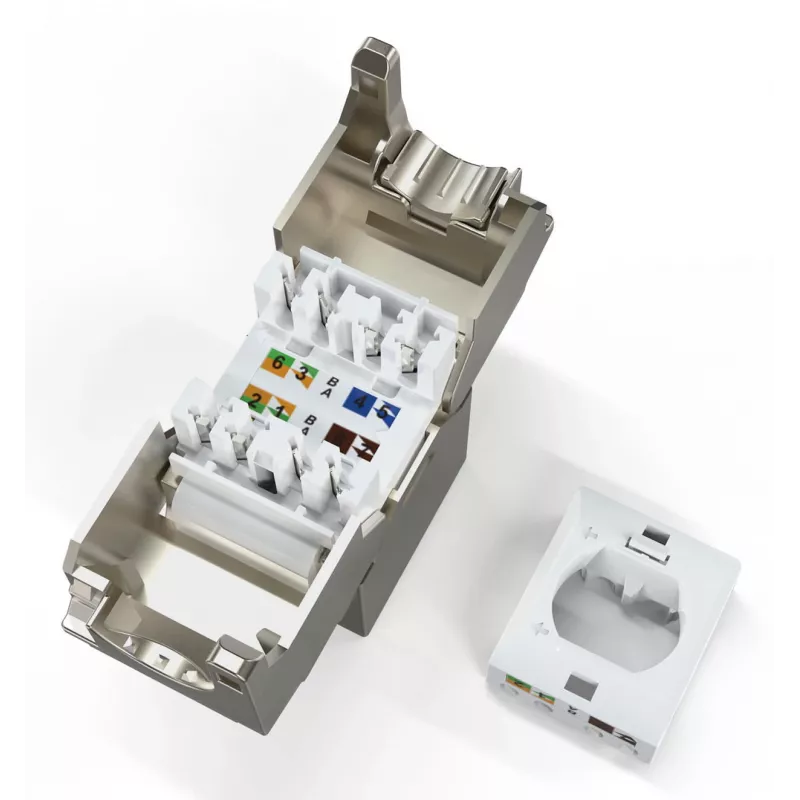

• Cable termination: LSA insulation displacement connectors, color-coded EIA/TIA 568 A & B
• Shielding: 360° shield contacting
• Housing material: Zinc die-cast, nickel-plated
• Contact material: Phosphor bronze, nickel + 0.5 μm gold-plated
• Insertion force: Max. 30 N (IEC 60603-7-51)
• Holding force: 7.7 kg (socket to plug)
• Operating temperature: -20 °C to +70 °C
• Mating cycles: ≥ 750
• Copper conductor: AWG 26/7 – 22/1, stranded and solid (tested with AWG 22/1)
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

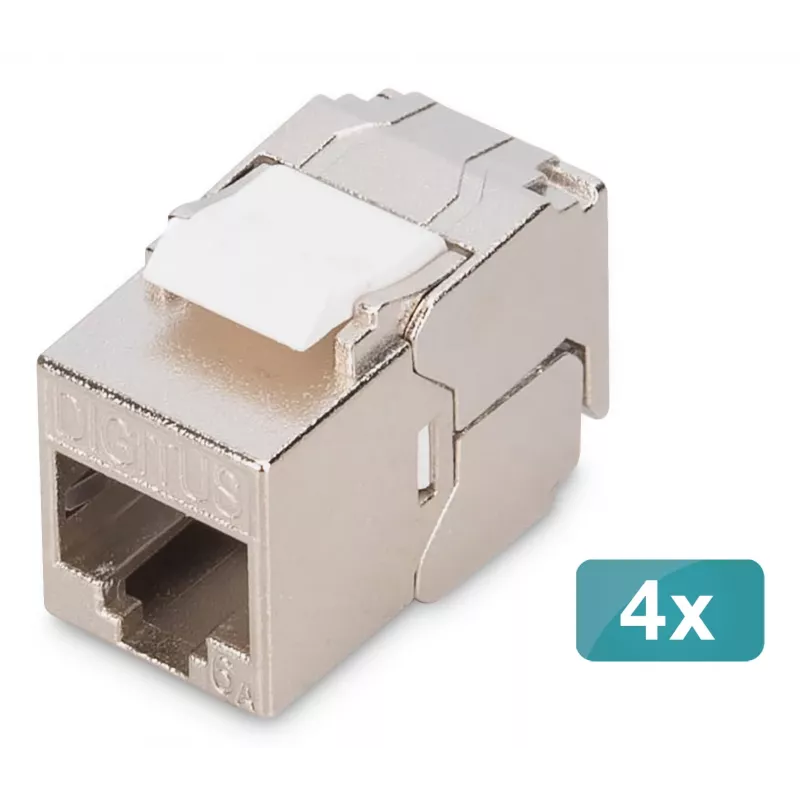

• Pack quantity: 4 pcs

How to use

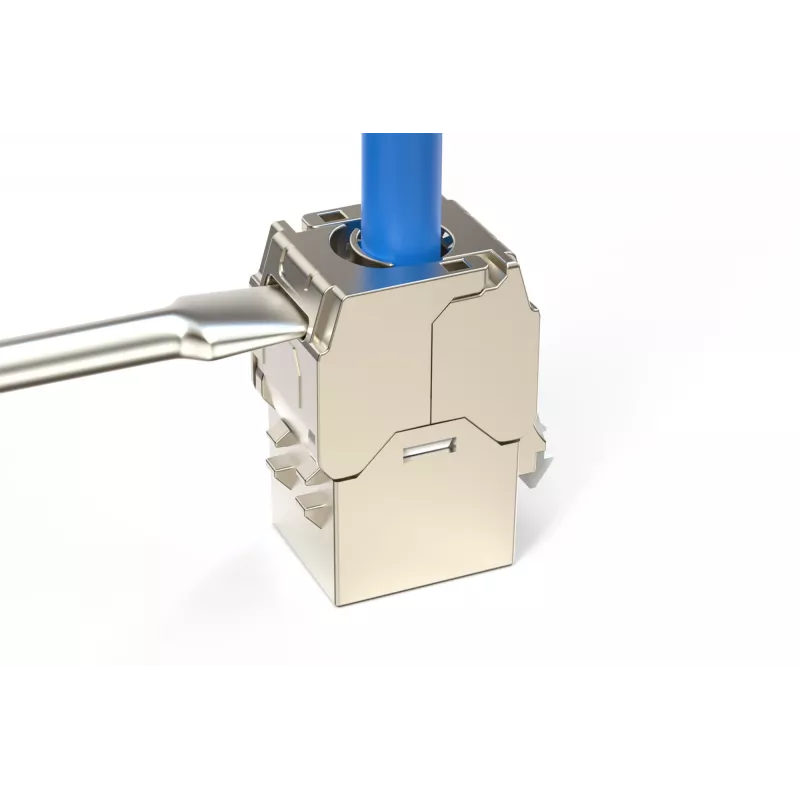

Strip the cable jacket to the recommended length, align individual conductors according to the color-coded EIA/TIA 568 A or B scheme and press them into the LSA insulation displacement connectors. Secure the cable with the integrated strain relief and reclosable cable manager, then insert the module into the distribution panel or junction box until it locks. For rack-mounted installations, install in 19" 1U panels in series as required. Use the dust protection cap when the RJ45 port is unused.

Recommendations

Use installation cable matching AWG 22/1 for optimal performance and verify PoE power requirements against the IEEE 802.3af/at/bt specifications. Ensure proper shield grounding in the distribution panel or junction box to maintain EMC performance.
