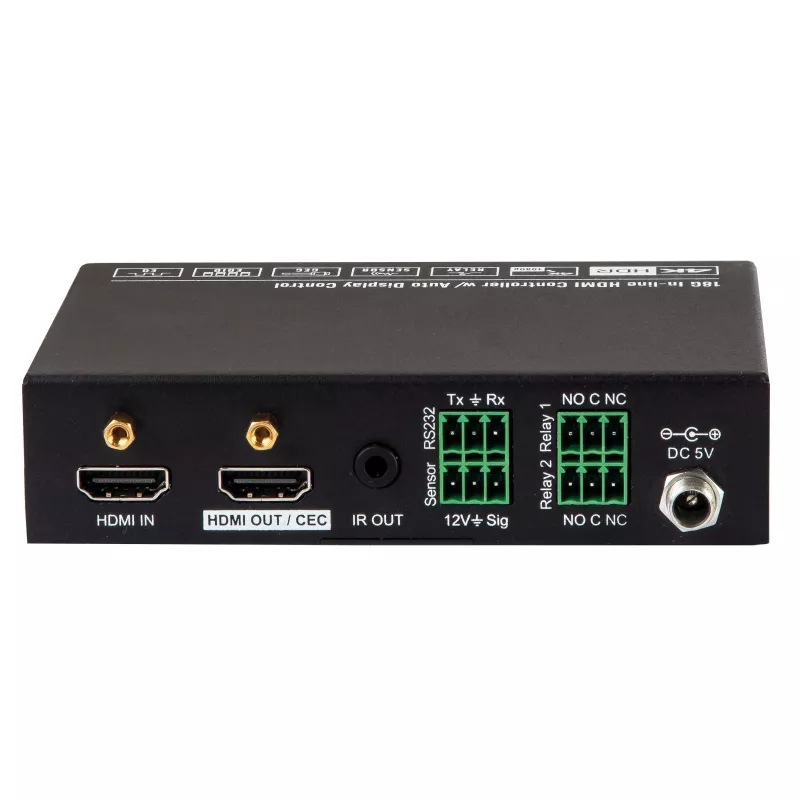

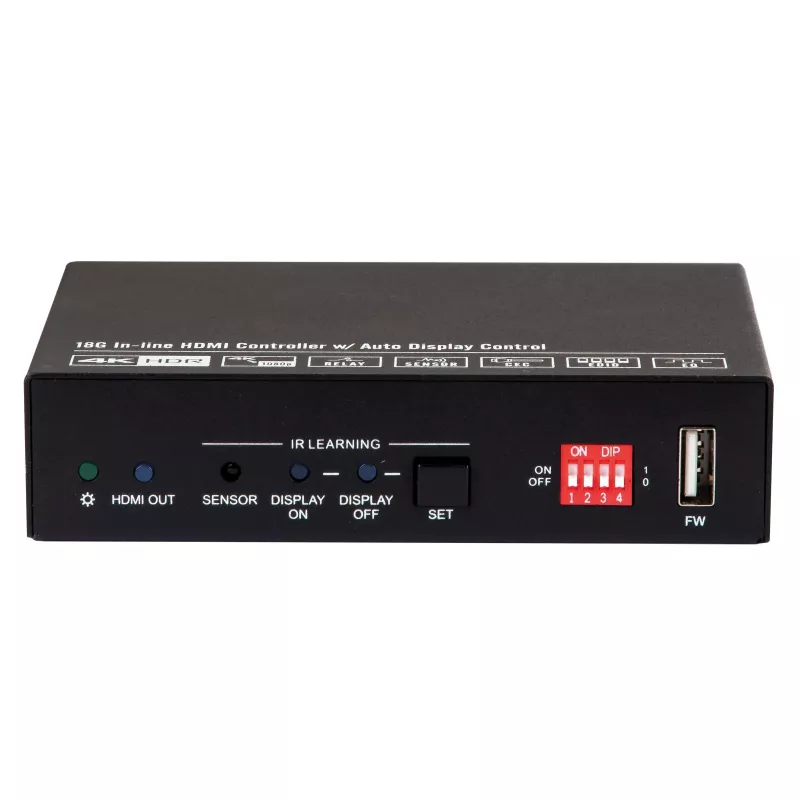

Kindermann HDMI Control Basic 4K60

The Kindermann HDMI Control Basic 4K60 is a professional-grade HDMI signal management solution designed for seamless integration into AV systems. Supporting HDMI 2.0b with 18 Gbps bandwidth, it delivers uncompromised 4K@60Hz (4:4:4) video quality along with HDR10, HLG, and Dolby Vision. The device offers comprehensive control via RS232, IR, and CEC, plus automatic EDID management for hassle-free setup. Its compact metal housing is wall-mountable, making it ideal for commercial installations, conference rooms, and digital signage.

Advantages

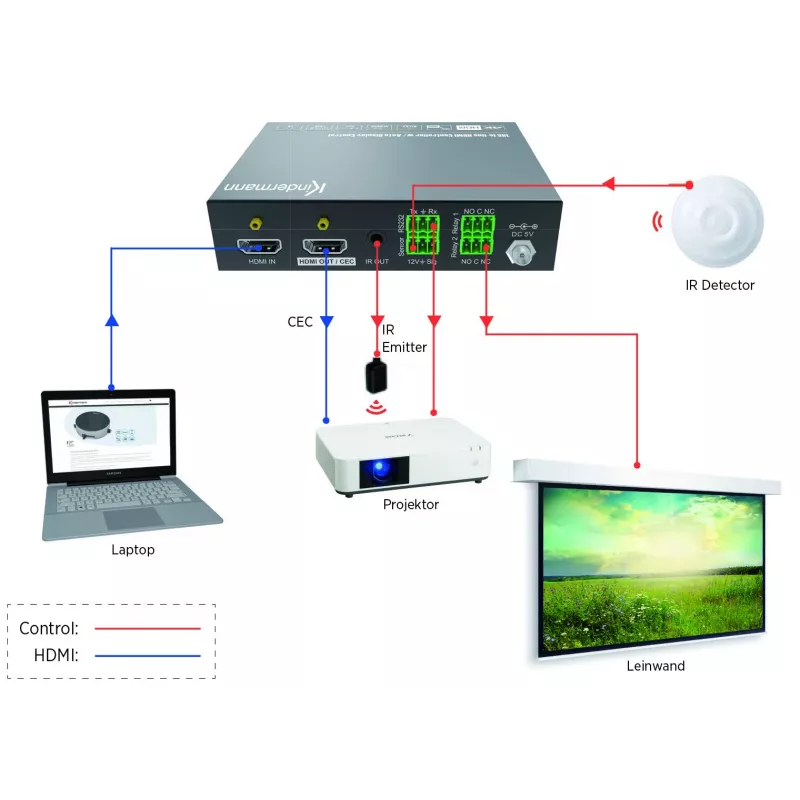

Reliable 4K60 signal distribution with full HDCP 2.2 compliance. Flexible control options (RS232, IR, CEC) allow integration with existing automation systems. Automatic EDID management ensures compatibility with a wide range of displays. Firmware updates via USB keep the device future-proof. Wall-mountable design saves space and simplifies installation.

Suitable for

• Conference rooms and meeting spaces
• Digital signage and retail displays
• Home theater systems
• Education and training facilities
• Any professional AV installation requiring reliable HDMI signal control

Key specifications

• HDMI Standard: 2.0b
• Max Resolution: 4K@60Hz (4:4:4)
• HDCP: 2.2 / 1.4
• Data Rate: 18 Gbps
• Control Interfaces: RS232, IR, CEC
• Input/Output: 1x HDMI Type A each
• Power: 5V DC, 1A (external adapter)
• Power Consumption: Max. 2.5W
• EDID Management: Automatic, programmable
• Audio Support: LPCM, Dolby Digital, DTS, HD Audio
• HDR Support: HDR10, HLG, Dolby Vision
• Color Space: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• Operating Temperature: 0°C to 40°C
• Housing Material: Metal
• Mounting: Wall mountable (brackets included)
• Firmware Update: Via USB

Recommendations

For optimal performance, use high-quality HDMI 2.0 cables. The device supports automatic input switching and CEC control, simplifying operation. Ensure adequate ventilation when mounting in enclosed spaces.
