Kingston SO DDR5 16GB PC 5600 CL46 Server Premier ECC retail - 16 GB - DDR5

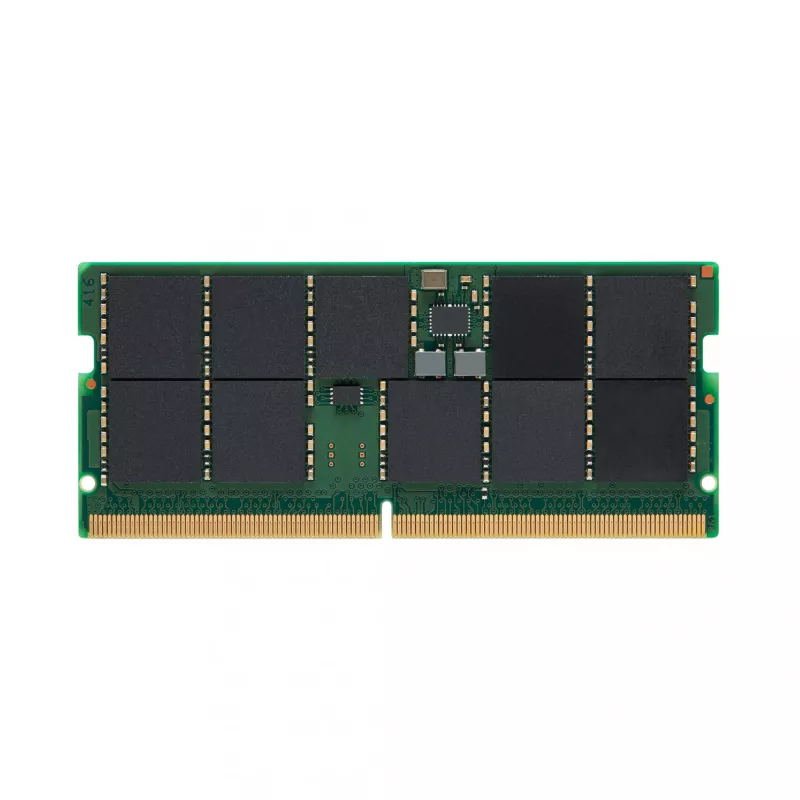

Kingston KSM56T46BS8KM-16HA is a 16GB DDR5-5600 CL46 ECC SODIMM module organized as 2G x 72-bit (1Rx8) with parity, designed for systems that require error-correcting memory. The module is built from ten 2G x 8-bit FBGA memory components and uses a 262-pin SODIMM connector with gold contact fingers. SPD is programmed to JEDEC DDR5-5600 timing of 46-45-45 at 1.1V.

Advantages

This Kingston DDR5-5600 CL46 ECC memory module provides ECC protection for improved data integrity, JEDEC-standard timings for compatibility with DDR5-5600 platforms, and a SODIMM form factor suitable for compact systems and laptops that support ECC SODIMMs. Gold contacts ensure reliable electrical connection.

Key specifications

• Capacity: 16GB (2G x 72-bit)
• Type: DDR5-5600 SDRAM
• Latency: CL46 (46-45-45)
• Voltage: 1.1V
• ECC: Yes (parity, error-correcting)
• Organization: 1Rx8
• Components: ten 2G x 8-bit FBGA
• Module: 262-pin SODIMM with gold contact fingers
• SPD: JEDEC programmed for DDR5-5600

How to use

Install the module into a compatible 262-pin SODIMM slot on a system or motherboard that supports DDR5 SODIMM and ECC functionality. Ensure the system firmware supports DDR5-5600 timing and ECC operation; insert the module at a slight angle, press until it clicks into place and the retention clips engage. After installation, verify memory is recognized in BIOS/UEFI and that ECC is enabled if required by the platform.

Recommendations

Use this ECC SODIMM in systems that explicitly support DDR5 SODIMM ECC modules. Check motherboard or system compatibility lists and ensure matching speed and ECC support when populating multiple modules for best stability and performance.
