Kit de montagem Noctua NM-I17XX-MP83 chromax.preto para dissipadores Noctua compatíveis com LGA1700

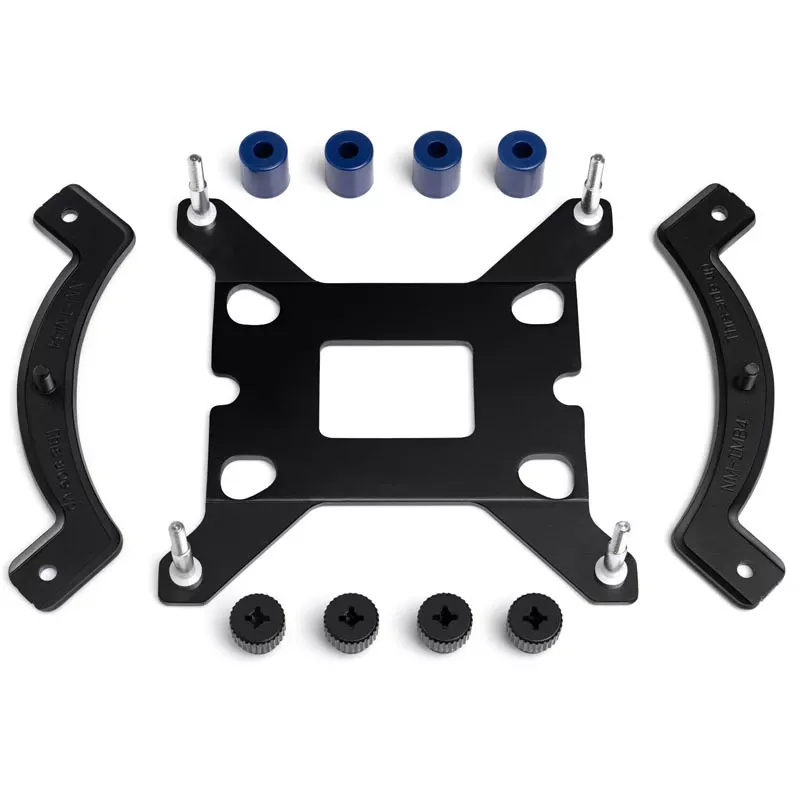

The NM-i17xx-MP83 chromax.black is a SecuFirm2 mounting upgrade kit from Noctua that enables CPU coolers with an 83mm mounting pitch to be adapted for Intel LGA1700 (LGA17xx family) sockets. It retains SecuFirm2 characteristics such as reliable retention, correct contact pressure and straightforward installation. The chromax.black edition uses all-black components to match Noctua's chromax.black cooler line.

Advantages

The upgrade kit provides a factory-designed SecuFirm2 mounting solution that preserves stability and contact pressure after conversion to LGA1700. Its all-black parts ensure visual consistency with chromax.black coolers. Noctua supplies eligible users with this kit free of charge upon verification, while it is also available through some resellers for a suggested service charge.

Suitable for

• Adapting Noctua CPU coolers with 83mm mounting pitch to Intel LGA1700 motherboards
• Users who want a chromax.black aesthetic match for their cooler
• Owners of older Noctua heatsinks that are otherwise compatible mechanically with LGA17xx clearance specifications

Key specifications

• Model: NM-i17xx-MP83 chromax.black
• Mounting pitch compatibility: 83 mm
• Socket compatibility: Intel LGA1700 (LGA17xx family)
• Colour: Black (chromax.black)
• Manufacturer part number (MPN): NM-i17xx-MP83 CH.BK
• EAN: 9010018201079

How to use

Verify that your Noctua heatsink has an 83mm mounting pitch and check the Noctua compatibility database to ensure the heatsink and your specific LGA1700 motherboard meet the required clearance and mechanical specifications. If eligible, request the free upgrade via Noctua's form by providing proof of purchase for both the Noctua cooler and either an LGA1700 motherboard or CPU, or purchase the kit from a reseller. Follow the included SecuFirm2 instructions to replace the original mounting parts with the NM-i17xx-MP83 components and install the heatsink onto the LGA1700 socket.

Recommendations

Before installation, confirm compatibility using Noctua’s database and ensure you understand the clearance differences of LGA17xx; Noctua cannot accept liability for damage caused by incompatible combinations. If immediate delivery is required, consider purchasing from a local reseller or selecting paid express shipping where available.
