Kit Wireless WLAN/Bluetooth SHUTTLE WLN-M12 com placa Intel AX210 M.2, Wi‑Fi 6E tribanda (2,4/5/6 GHz), 2x2, 2400 Mbit/s, antenas externas

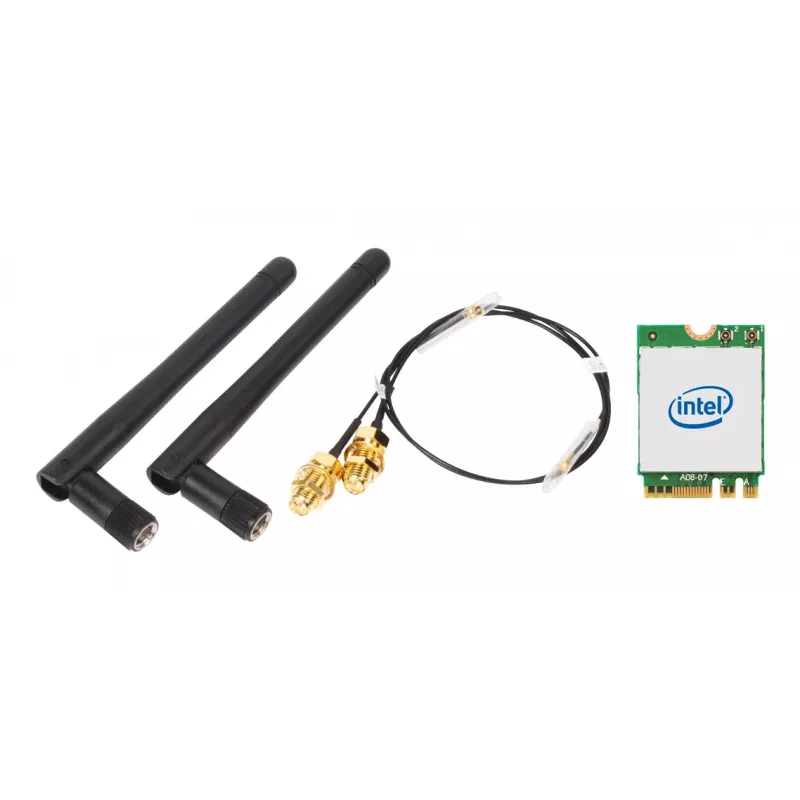

SHUTTLE WLN-M12 is a WLAN and Bluetooth combo kit designed for slim desktop systems. The kit includes an Intel AX210 M.2-2230 wireless card, antenna cables and two external antennas to provide tri-band Wi‑Fi 6E connectivity (2.4 / 5 / 6 GHz) with a 2x2 antenna configuration and maximum theoretical throughput up to 2400 Mbit/s. Bluetooth 5.2 support is included for wireless peripherals and audio.

Advantages

The kit integrates an Intel WLAN‑AX210 M.2 card and accessories needed to add wireless networking to compatible slim PCs, offering Wi‑Fi 6E performance and modern Bluetooth support in a compact internal module. Its external antennas and dedicated cables improve signal reception compared with small onboard antennas, while the M.2 interface provides a straightforward installation path into systems that accept M.2 2230 wireless cards.

Suitable for

When it may not be suitable

The WLN-M12 requires a compatible M.2 slot and appropriate driver support from the host system; it is not a USB or PCIe adapter. Systems without an M.2 2230 wireless slot or where the manufacturer blocks non‑certified modules will not be able to use this kit. Performance depends on router capabilities, environmental factors, and driver configuration, so peak throughput is achievable only with matching network infrastructure and favorable conditions.

Key specifications

How to use

Power down the PC and open the chassis according to the system manufacturer’s instructions. Insert the M.2 wireless card into an available M.2 2230 slot and secure it with the appropriate screw. Route and connect the supplied antenna cables to the card’s antenna connectors, then mount the external antennas in the desired positions for optimum reception. Close the chassis, power on the system, and install any required drivers provided by the system manufacturer or Intel. Configure wireless network settings through the operating system’s network manager once drivers are installed.

What to consider before purchase

Recommendations

For best wireless performance, pair the WLN-M12 with a Wi‑Fi 6E capable router and place the external antennas with clear line of sight to the router where possible. Keep system firmware and wireless drivers up to date and verify that the 6 GHz band is permitted and supported in your region before relying on that band for connectivity.
