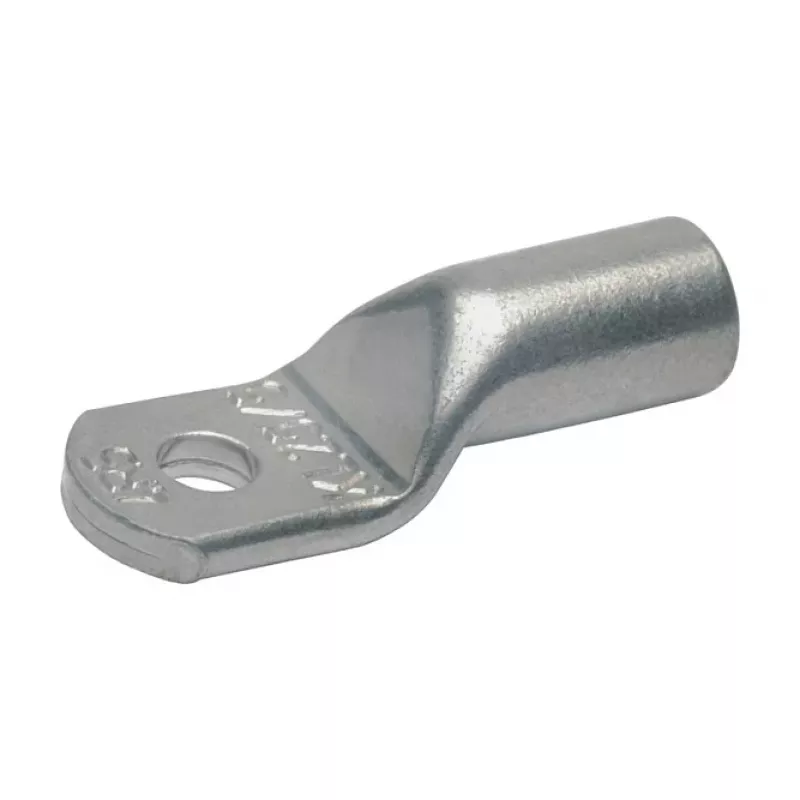

KLAUKE 3R12 terminal tubular, 16 mm², M12, cobre estanhado, reto

The KLAUKE 3R12 is a high-quality tubular ring terminal (Rohr-Kabelschuh) designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This straight terminal features a funnel entry for easy cable insertion and is suitable for fine-stranded, multi-stranded, and solid copper conductors.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. Funnel entry design simplifies cable insertion, reducing installation time. Compliant with DIN 46235 standard, ensuring consistent quality and performance. Halogen-free and RoHS compliant, making it environmentally friendly.

Suitable for

• Electrical installations requiring secure crimp connections
• Copper conductors with cross-sections up to 16 mm²
• Applications in industrial, commercial, and automotive environments
• Use with M12 bolt holes for secure fastening

Key specifications

• Product Type: Tubular Ring Terminal
• Material: Electrolytic Copper (E-Cu), Tin-plated
• Cable Cross-Section: 16 mm²
• Bolt Hole Diameter: M12
• Design: Straight
• Standard: DIN 46235
• Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V
• Connection Method: Crimp
• Halogen-free: Yes
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper cable stripping. Always follow manufacturer guidelines for installation and safety.
