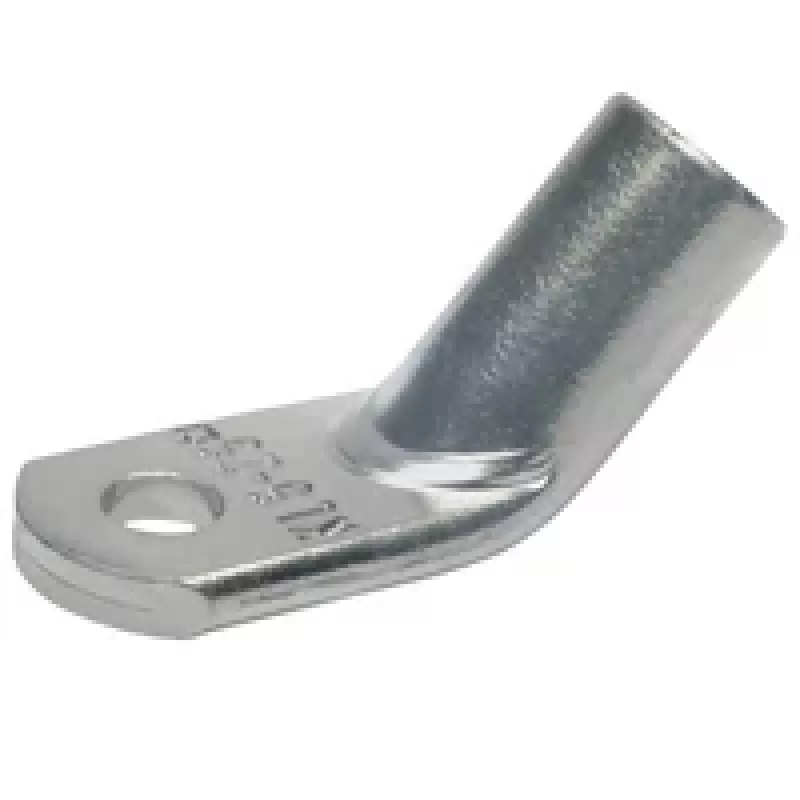

Klauke 49R1245 Terminal tubular, 120 mm², cobre estanhado, curvado 45°, furo para parafuso M12

The Klauke 49R1245 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tin-plated surface, this lug ensures excellent conductivity and corrosion resistance. The 45° angled palm facilitates easy installation in tight spaces, while the M12 bolt hole provides secure fastening. Suitable for stranded copper conductors (Class 2, 5, 6) and compliant with DIN 46235, it is ideal for power distribution, switchgear, and control panels.

Advantages

Tin-plated surface prevents oxidation and ensures long-lasting performance. The 45° angle allows for flexible routing and space-saving installations. Hexagonal crimping provides a strong, vibration-resistant connection. Wide operating temperature range (-55°C to +150°C) and voltage rating up to 1000 V make it suitable for demanding industrial environments.

Suitable for

• Power distribution systems
• Switchgear and control panels
• Electrical installations requiring high conductivity
• Stranded copper conductors (Class 2, 5, 6)

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-Section: 120 mm²
• Bolt Hole Diameter: M12
• Material: Electrolytic Copper, Tin-plated
• Angle: 45°
• Overall Length: 76 mm
• Palm Width: 28 mm
• Barrel Inner Diameter: 15.0 mm
• Barrel Outer Diameter: 19.0 mm
• Palm Thickness: 3.0 mm
• Standard: DIN 46235
• Operating Temperature: -55°C to +150°C
• Voltage Rating: Up to 1000 V

Recommendations

For optimal performance, use with appropriate hexagonal crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines for installation.
