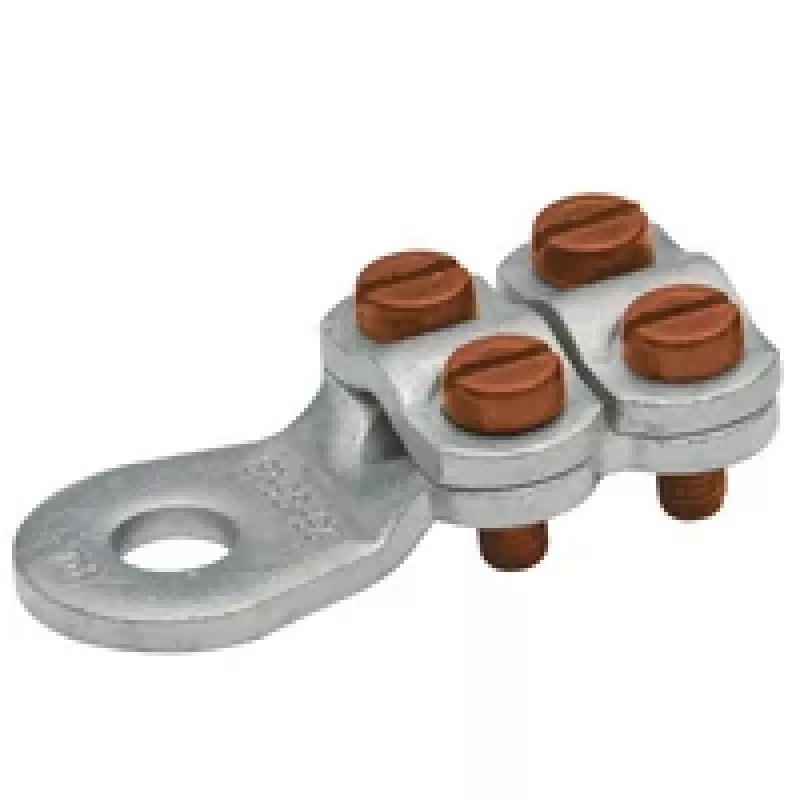

Klauke 588R10 Conector de cravação de redução, estanhado, 95 mm² para 70 mm², 57 mm

The Klauke 588R10 is a high-quality reducing crimp connector designed for joining copper and aluminum conductors of different cross-sections. Manufactured from electrolytic copper with a tinned surface, it provides excellent corrosion protection and reliable electrical conductivity. This tubular, uninsulated connector is ideal for fine-stranded, multi-stranded, and solid conductors, ensuring a secure crimp connection in demanding industrial environments.

Advantages

• Tinned surface offers superior corrosion resistance
• Suitable for both copper and aluminum conductors
• Reduces conductor cross-section from 95 mm² to 70 mm²
• Complies with DIN 46267 for quality and safety
• Wide operating temperature range from -40°C to +120°C

Suitable for

• Power distribution and transmission systems
• Electrical panel and switchgear installations
• Industrial machinery and equipment wiring
• Renewable energy systems (solar, wind)
• Automotive and transportation electrical systems

Key specifications

• Connector Type: Reducing Crimp Connector
• Conductor Material Compatibility: Copper (Cu), Aluminum (Al)
• Input Conductor Cross-Section: 95 mm²
• Output Conductor Cross-Section: 70 mm²
• Surface Finish: Tinned
• Base Material: Electrolytic Copper
• Length: 57 mm
• Max Outer Diameter: 22 mm
• Standard Compliance: DIN 46267
• Operating Temperature Range: -40°C to +120°C

Recommendations

For optimal performance, use with appropriate Klauke crimping tools and dies. Ensure conductors are properly stripped and inserted before crimping. Always follow manufacturer guidelines for torque and crimp force.
