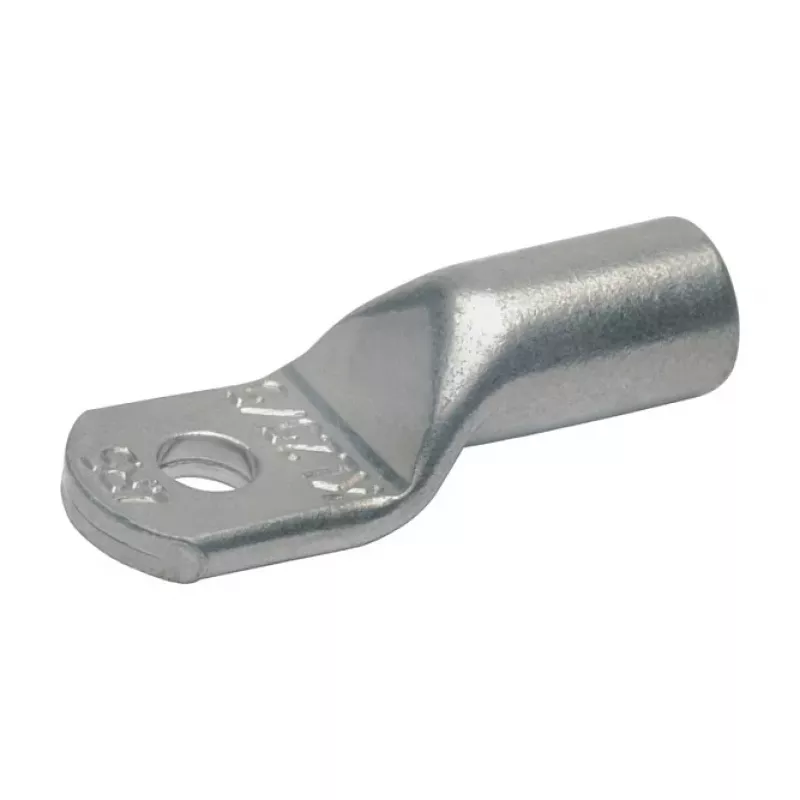

Klauke 8R10 terminal tubular, 95 mm², cobre estanhado, reto, para parafuso M10

The Klauke 8R10 is a high-quality tubular ring lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tin-plated surface, this lug ensures excellent conductivity and corrosion resistance. Suitable for stranded and fine-stranded copper conductors up to 95 mm², it is ideal for power distribution, control cabinets, and grounding applications.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. Straight design allows for easy installation in tight spaces. Compliant with DIN 46235 standard, ensuring consistent quality and performance. RoHS compliant for environmental safety.

Suitable for

• Power distribution systems
• Control cabinets
• Grounding and bonding
• Industrial electrical installations

Key specifications

• Cable cross-section: 95 mm²
• Bolt hole diameter: 10.5 mm (for M10 bolts)
• Material: Electrolytic copper, tin-plated
• Connection type: Crimp
• Design: Straight
• Lug type: Tubular ring lug
• Standard: DIN 46235
• Operating temperature: -50°C to +150°C
• Voltage rating: Up to 1000 V AC/DC
• Number of holes: 1

Recommendations

Use with appropriate crimping tool for optimal connection. Ensure conductor is properly stripped before crimping. For best results, follow manufacturer's installation guidelines.
