Klauke 94R6 terminal tubular, cobre estanhado, 4 mm², furo para parafuso M6, reto

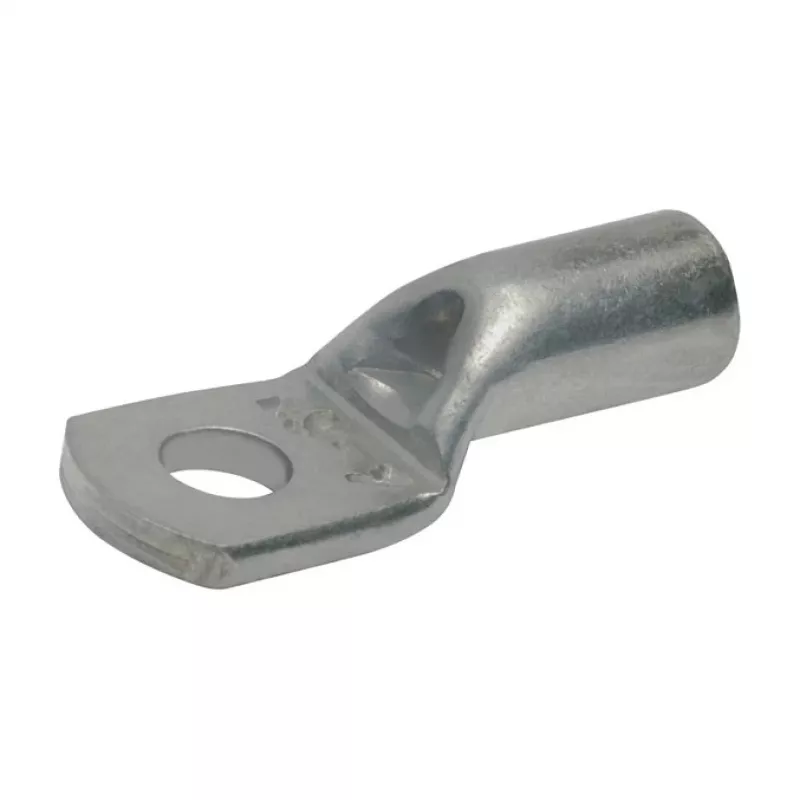

The Klauke 94R6 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it offers excellent corrosion resistance and conductivity. This straight, uninsulated lug is suitable for stranded and fine-stranded copper conductors with a cross-section of 4 mm² and features a M6 bolt hole. It complies with DIN 46235 and is ideal for hexagonal crimping.

Advantages

Tin-plated surface provides superior corrosion resistance and long-term reliability. Seamless tubular barrel ensures secure crimping and optimal electrical performance. Bell-mouth entry facilitates easy conductor insertion. Complies with DIN 46235 for standardized quality.

Suitable for

• Electrical installations and wiring
• Industrial control panels
• Power distribution systems
• Automotive and marine applications

Key specifications

• Product Type: Tubular Cable Lug
• Conductor Cross-Section: 4 mm²
• Bolt Hole Diameter: M6 (6 mm)
• Material: Electrolytic Copper (E-Cu), Tin-plated
• Connection Angle: Straight
• Insulation: Uninsulated
• Crimping Method: Hexagonal crimping
• Standard: DIN 46235
• Temperature Range: -50°C to +120°C

Recommendations

For optimal performance, use with appropriate crimping tools and ensure correct conductor preparation. Always follow manufacturer guidelines for crimping and installation.
