KNIPEX Conjunto de Ferramentas de Montagem Fotovoltaica MC4 / MC4 EVO 2

The KNIPEX PV Assembly Tool Set MC4 / MC4 EVO 2 is a comprehensive 5-piece tool kit designed for professional photovoltaic (PV) installations. It includes all essential tools for cutting, stripping, crimping, and unlocking MC4 and MC4 EVO 2 connectors, housed in a robust plastic case for convenient transport and storage.

Advantages

This set offers precise square crimping for reliable connections, self-adjusting stripping for efficient wire preparation, and ergonomic handles for comfortable use. The included unlocking tools ensure compatibility with both standard MC4 and MC4 EVO 2 connectors, making it a versatile solution for solar panel wiring.

Suitable for

• Professional PV installers and electricians
• Solar panel wiring and maintenance
• MC4 and MC4 EVO 2 connector assembly

Key specifications

• Product Type: PV Assembly Tool Set
• Number of Tools: 5 (plus case)
• Crimping Pliers Model: Knipex 97 43 200 A
• Crimping Capacity: 2.5 / 4 / 6 mm² (AWG 14 / 12 / 10)
• Stripping Tool Model: Knipex 16 39 135
• Stripping Capacity: 0.2 - 6.0 mm² (AWG 24 - 10)
• Cable Cutter Model: Knipex 95 16 165
• Cable Cutter Capacity: Up to Ø 10 mm / 50 mm²

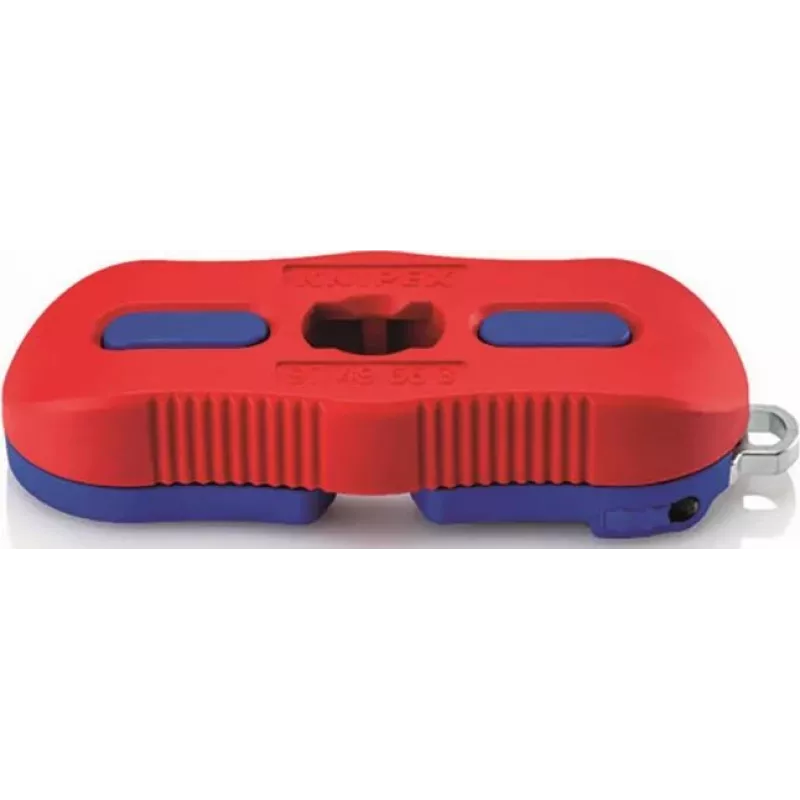

• Unlocking Tool 1 Model: Knipex 97 49 66 (for MC4)
• Unlocking Tool 2 Model: Knipex 97 49 66 2 (for MC4 EVO 2)
• Case Material: Robust Plastic
• Tool Material: High-grade special tool steel, Plastic

Recommendations

For optimal performance, use this set with genuine KNIPEX replacement parts and follow manufacturer guidelines for crimping and stripping. Always wear appropriate personal protective equipment during installation.
