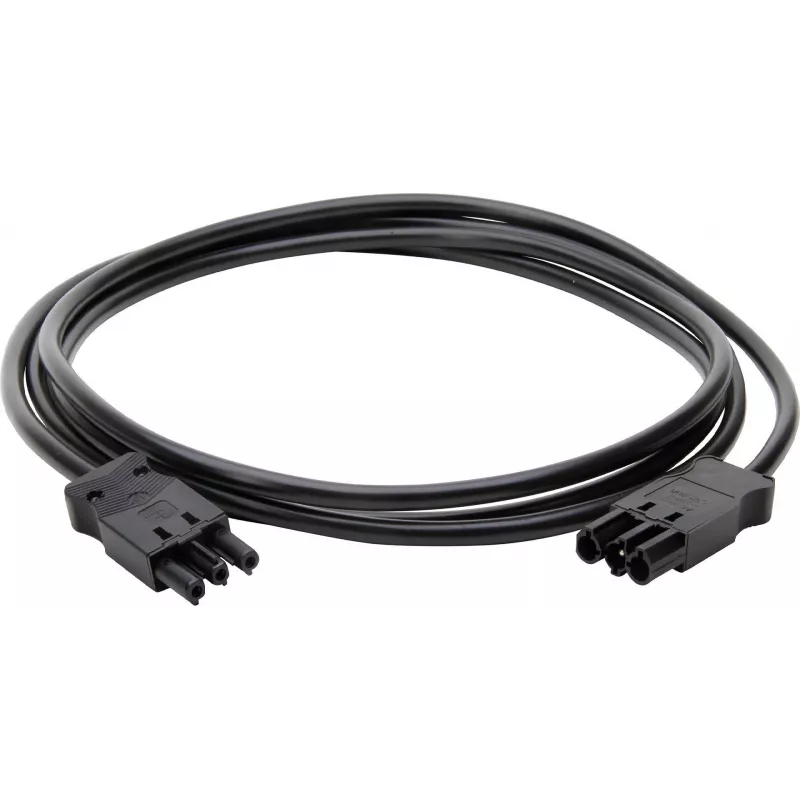

Kopp Cabo de ligação compatível com sistema de fichas GST, M/M, 1,5 mm², 3 m, preto

Power distribution in modular office and retail environments often hits a wall when connectors don't match the existing infrastructure. This 3-metre connecting cable from Kopp solves that by offering a direct, secure link between components using the widely adopted GST18i3 plug system. With male connectors on both ends, it bridges power sources and devices without the need for adapters or custom wiring, keeping installations clean and downtime minimal.

Who is it for

Electricians, facility managers, and system integrators who work with Wieland GST18i3-compatible power distribution systems will find this cable indispensable. It is particularly suited for lighting installations, office workstations, and retail displays where a reliable 3-pole connection is required. The 1.5 mm² conductor cross-section supports rated currents up to 16 A, making it a robust choice for both new setups and retrofits.

Main features

• Compatible with the GST18i3 plug system (Wieland standard), ensuring interoperability with a wide range of equipment.
• Male-to-male configuration with 3 poles (L, N, PE) for straightforward power linking.
• Generous 3-metre length provides flexibility in positioning while maintaining a tidy cable run.
• Black PVC jacket offers durability and resistance to everyday wear, suitable for indoor use.
• Rated for 250 V AC and 16 A, meeting the demands of typical commercial power circuits.
• VDE and CE certified, confirming compliance with European safety standards.

Specifications

• Cable type: Connecting cable
• Connector system: Wieland GST18i3 compatible
• Connector 1: GST18i3 plug (male)
• Connector 2: GST18i3 coupler (female)
• Number of poles: 3
• Conductor cross-section: 1.5 mm²
• Cable length: 3 m
• Cable colour: Black
• Jacket material: PVC
• Conductor material: Copper
• Rated voltage: 250 V AC
• Rated current: 16 A
• Protection rating: IP20
• Operating temperature: -5°C to +70°C
• Application: Power distribution, lighting, office installations
• Standards/Certifications: VDE, CE

Tips

Before installation, verify that the connected devices are rated for the same voltage and current to avoid overloading. Since the cable is IP20 rated, use it only in dry, indoor environments. For longer runs, consider using multiple cables with appropriate junction boxes, but ensure the total load does not exceed the cable's 16 A capacity. Store the cable loosely coiled to prevent kinks that could damage the conductors.
