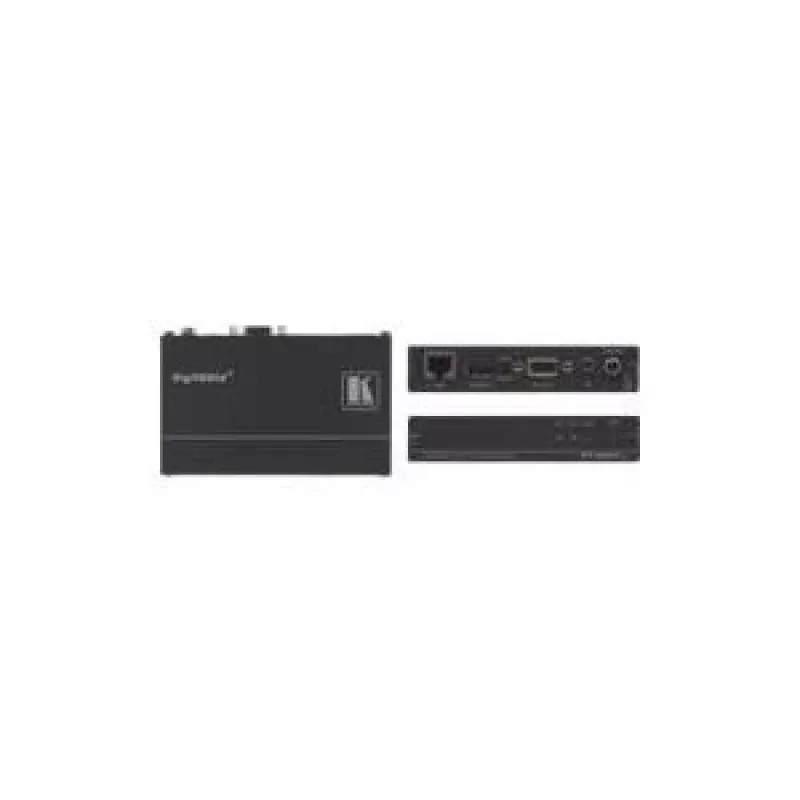

Kramer DigiTOOLS TP-580RXR Recetor HDBaseT - 4K@60Hz, HDMI, RS-232, IR, PoE, até 70m

The Kramer DigiTOOLS TP-580RXR is a high-performance HDBaseT receiver designed for extending video, audio, infrared, and serial signals over long distances. Ideal for professional AV installations, it supports 4K@60Hz (4:4:4) resolution and delivers reliable signal transmission up to 70m for 1080p and 40m for 4K. With Power over Ethernet (PoE) provider capability, it simplifies installation by eliminating the need for a local power supply at the receiver end.

Advantages

• Extends HDMI, Ethernet, RS-232, and IR signals over a single RJ-45 cable
• Supports 4K@60Hz (4:4:4) with HDMI 2.0 and HDCP 2.2 compliance
• PoE provider reduces cabling and power requirements
• Compact DigiTOOLS® enclosure for easy integration
• EDID pass-through and CEC support for seamless compatibility

Suitable for

• Professional AV systems in conference rooms, classrooms, and auditoriums
• Digital signage and video wall installations
• Home theater setups requiring long-distance signal distribution
• Any application needing reliable extension of HDMI, control, and network signals

Key specifications

• Product Type: HDBaseT Receiver
• Max Resolution: 4K@60Hz (4:4:4)
• Max Data Rate: 10.2 Gbps
• HDMI Compliance: HDMI 2.0
• HDCP Compliance: HDCP 2.2
• HDBaseT Range (4K@60Hz): Up to 40m (130ft)
• HDBaseT Range (1080p@60Hz): Up to 70m (230ft)
• Input Ports: 1x HDBaseT (RJ-45)
• Output Ports: 1x HDMI, 1x Ethernet (RJ-45), 1x RS-232 (3-pin terminal block), 1x IR (3.5mm jack)
• Power Over Ethernet (PoE): Yes (PoE Provider)
• Power Consumption: 12V DC, 300mA
• Color Depth: 8-bit, 10-bit, 12-bit
• EDID Pass-through: Yes
• CEC Support: Yes

Recommendations

For optimal performance, use shielded CAT6/6a cable. The TP-580RXR is part of the Kramer DigiTOOLS family, offering a complete solution for signal extension and distribution.
