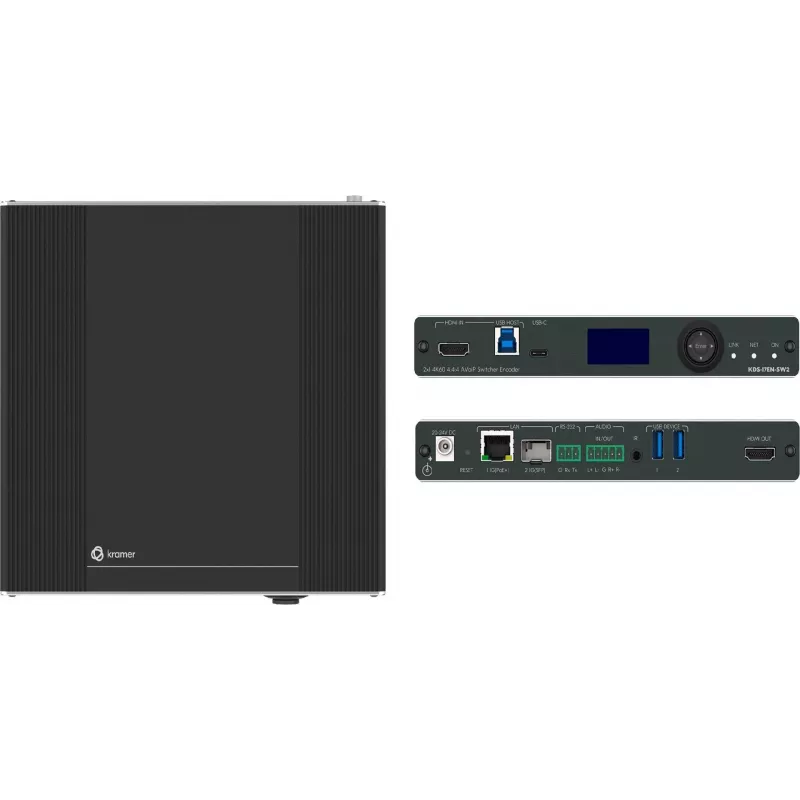

Kramer Electronics KDS-17EN-SW2 Codificador JPEG2000 4K@60Hz 4:4:4 sobre 1GbE

The Kramer Electronics KDS-17EN-SW2 is a high-performance AV over IP encoder that delivers pristine 4K@60Hz video with 4:4:4 color sampling over standard 1GbE networks. Utilizing JPEG2000 compression, it ensures visually lossless quality with near-zero latency, making it ideal for professional AV installations, broadcast, and corporate environments.

Advantages

Experience uncompromised video quality with full 4:4:4 chroma subsampling, ensuring sharp text and graphics. The encoder supports HDCP 2.2/1.4, PoE+ for simplified cabling, and includes KVM over IP functionality via USB 2.0. Its compact MegaTOOLS® form factor allows flexible mounting options.

Suitable for

• Professional AV distribution in boardrooms, classrooms, and houses of worship
• Broadcast and live event production requiring low latency
• Digital signage and video walls
• Medical imaging and simulation environments

Key specifications

• Video Encoding: JPEG2000 (J2K)
• Max Resolution: 4K@60Hz (4096x2160 or 3840x2160)
• Color Sampling: 4:4:4
• Network Interface: 1GbE (Gigabit Ethernet)
• HDCP Support: HDCP 2.2 / 1.4
• Latency: <1ms (Near-Zero)
• Video Input: 1x HDMI Type A
• Audio Input: 1x 3.5mm Stereo Audio, Embedded HDMI
• Data Ports: 1x USB 2.0 Type B (Host)
• Network Ports: 1x RJ-45 (1GbE)
• Control Ports: 1x RS-232 (3-pin terminal block), 1x RJ-45 (Ethernet)
• KVM over IP: Yes (USB 2.0)
• Power over Ethernet (PoE): Yes (PoE+)
• Power Supply: PoE+ or 12V DC
• Form Factor: MegaTOOLS®
• Management: Web UI, API, Kramer Network
• Video Bandwidth: Up to 850Mbps
• Mounting: Surface, Rack (with optional adapter)

Recommendations

For optimal performance, use with Kramer Network management software and a PoE+ switch. Pair with the matching KDS-17DE-SW2 decoder for a complete end-to-end AV over IP solution.
