KURTH EasyTest-Set KE 301 Classic conjunto de localização de cabos com emissor EasyTest 300, recetor Probe 310 e bolsa de proteção 0.49562

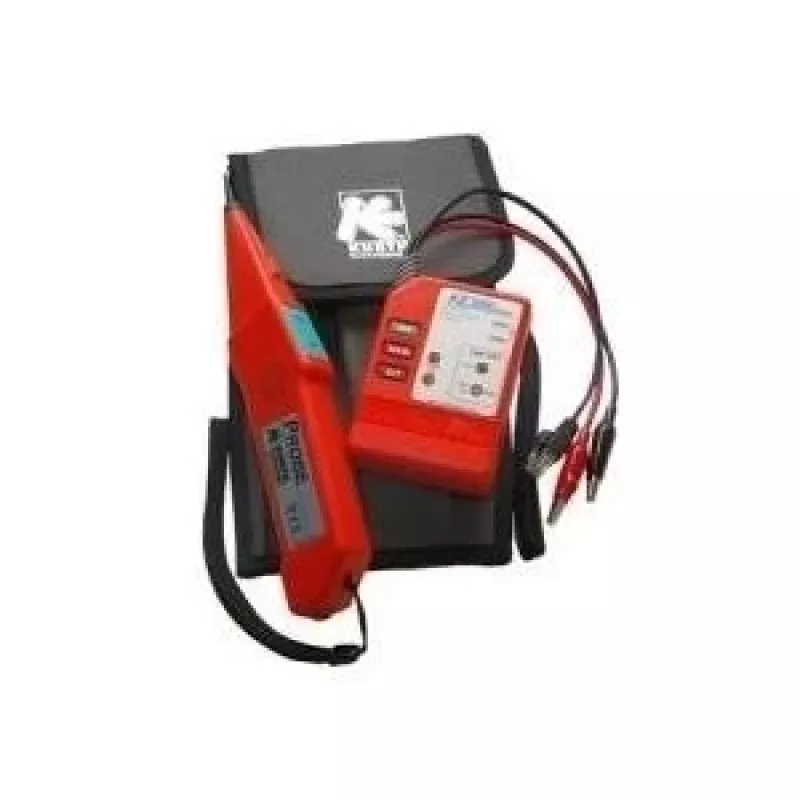

Trace and identify cables with precision using the KURTH EasyTest-Set KE 301, a professional kit that combines the EasyTest 300 transmitter and Probe 310 receiver in a convenient protective bag. The transmitter generates a 1 kHz tone that travels along the cable, while the receiver’s inductive, non-contact probe detects the signal with adjustable sensitivity—no direct contact with conductors required. With overvoltage protection up to 50V AC/DC, this kit is safe for use on de-energized circuits, making it ideal for telecom, network, coaxial, and low-voltage power cable tracing.

Overview

The KE 301 is built for installers and technicians who need a reliable, portable solution for locating and identifying cables in walls, conduits, or bundles. The EasyTest 300 transmitter connects via RJ11, RJ45, or alligator clips, and also performs continuity and polarity tests. The Probe 310 receiver provides both acoustic and LED signal strength indicators, with a 3.5mm headphone jack for noisy environments. Both units are powered by standard 9V block batteries (PP3), ensuring easy replacement in the field. The included protective bag keeps the kit organized and ready for transport.

What stands out

• Non-contact inductive tracing—no need to strip or pierce cable insulation
• Adjustable receiver sensitivity for precise signal pinpointing
• Multi-interface transmitter supports RJ11, RJ45, and alligator clips
• Overvoltage protection up to 50V AC/DC for added safety
• Acoustic and LED indicators, plus headphone jack for noisy environments
• Complete kit with protective bag for easy storage and portability

Technical details

• Transmitter output signal: 1 kHz tone frequency
• Receiver detection method: inductive, non-contact
• Supported cable types: telecommunication, network (LAN), coaxial, de-energized power cables
• Transmitter functions: cable tracing, continuity test, polarity test
• Receiver indicators: acoustic signal, LED signal strength indicator
• Receiver output: 3.5mm headphone jack
• Power source: 1x 9V block battery (PP3) for each unit
• Interference shielding: yes, against external interference
• Application environment: indoor/outdoor general installation work
• Product series: EasyTest-Set

Our verdict

The KURTH EasyTest-Set KE 301 is a dependable and user-friendly cable tracing kit that delivers professional results. Its inductive technology, versatile connections, and practical accessories make it a smart choice for any technician’s toolkit.
