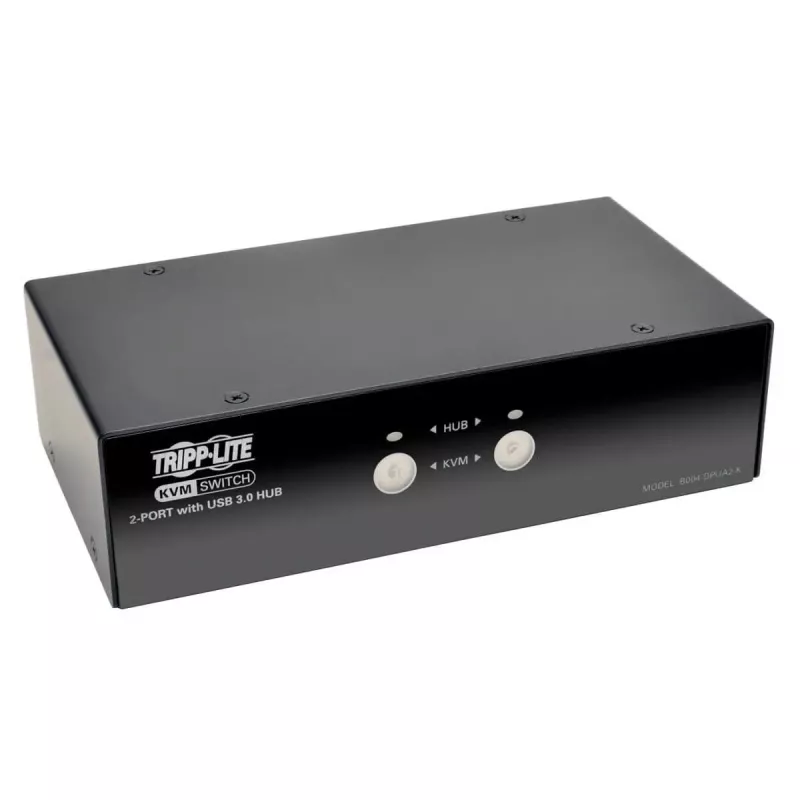

KVM switch DisplayPort de 2 portas com áudio e hub USB 3.0 EATON B004-DPUA2-K — DisplayPort, teclado/rato USB, 2560×1600, cabo de 1,2 m

The EATON B004-DPUA2-K is a 2-port DisplayPort KVM switch that enables one user to control two computers with a single USB keyboard and mouse. It supports DisplayPort video up to 2560 × 1600, includes independent audio switching via 3.5 mm jacks, and provides a built-in 2-port USB 3.0 SuperSpeed hub for sharing peripherals. The unit ships with the required DisplayPort, USB 3.0 and audio cables and requires no drivers for setup.

Advantages

This KVM switch offers high-resolution DisplayPort support (up to 2560 × 1600) and DisplayPort 1.1 compatibility while maintaining plug-and-play operation across Windows, Mac, Linux and Sun systems. Independent audio switching and a USB 3.0 hub let you share speakers, microphone and high-speed peripherals (webcams, flash drives, printers) between two computers. Front-panel buttons and keyboard hotkeys provide flexible, fast switching; the Auto Scan mode cycles between computers for easy monitoring.

Suitable for

• Workstations requiring control of two desktop computers from a single console
• Home office setups where peripherals and audio are shared between machines
• IT racks and small server environments for quick console switching
• Multimedia tasks that need 2-channel stereo audio and high-resolution DisplayPort output

Key specifications

• Model: EATON B004-DPUA2-K

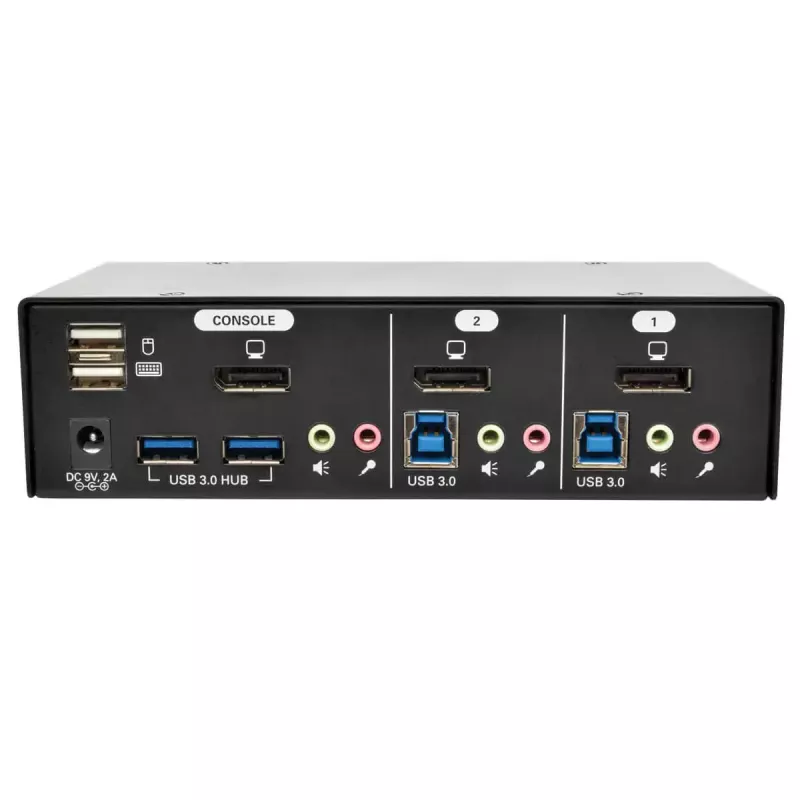

• Ports: 2 DisplayPort computer inputs, console DisplayPort output, USB keyboard/mouse (USB), 2-port USB 3.0 hub
• Audio: Independent 3.5 mm speaker and microphone jacks, 2-channel stereo
• Video support: DisplayPort 1.1, up to 2560 × 1600 resolution
• USB: USB 3.0 SuperSpeed up to 5 Gbps; backward compatible with USB 2.0/1.1

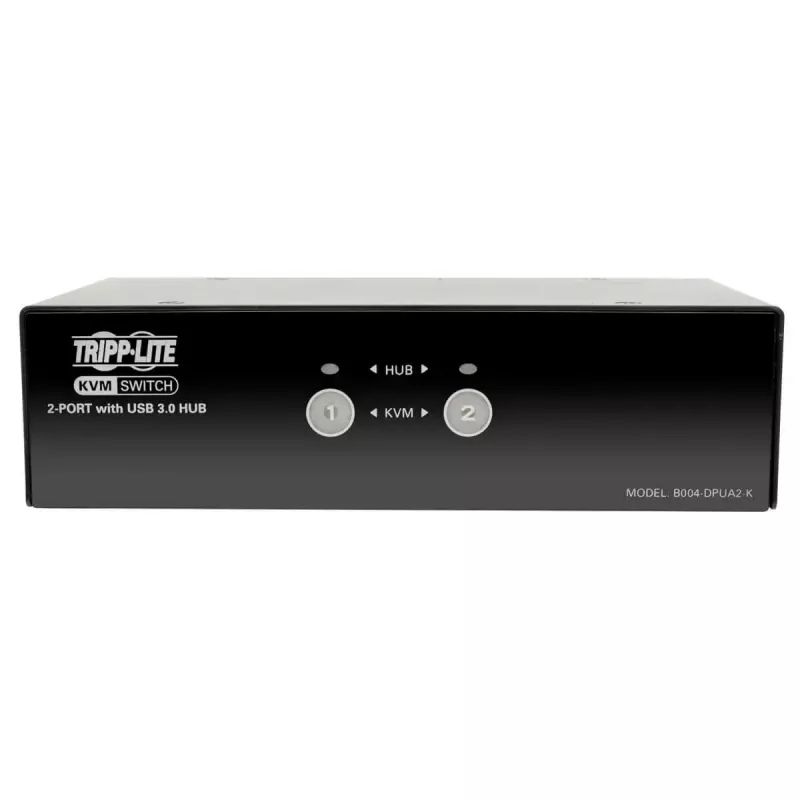

• Switching methods: Front-panel buttons, keyboard hotkeys, Auto Scan

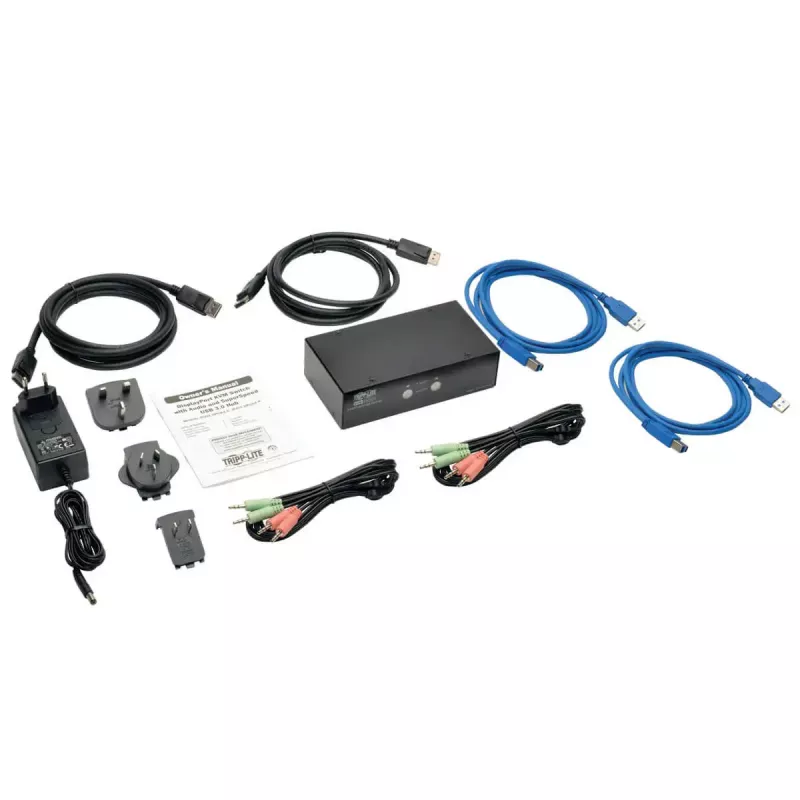

• Cables included: DisplayPort, USB 3.0 and audio cables (1.2 m)
• Power and compliance: RoHS compliant, operates from 100–240 V AC (50–60 Hz)
• Color and weight: Black, 0.59 kg

How to use

Connect each computer to the KVM switch using the supplied DisplayPort and USB cables; plug speakers and microphone into the 3.5 mm jacks if audio sharing is needed. Connect your keyboard, mouse and monitor to the console ports and power the unit. Use the front-panel buttons or keyboard hotkeys to switch control between computers. Enable Auto Scan to cycle through connected systems automatically for monitoring. No driver installation is required.

Recommendations

For optimal video performance, use the supplied DisplayPort cables and set the connected computers to the supported resolution (up to 2560 × 1600). When using high-bandwidth USB devices, connect them to the USB 3.0 ports to take advantage of SuperSpeed data rates; for legacy devices, USB 2.0/1.1 compatibility is supported.
