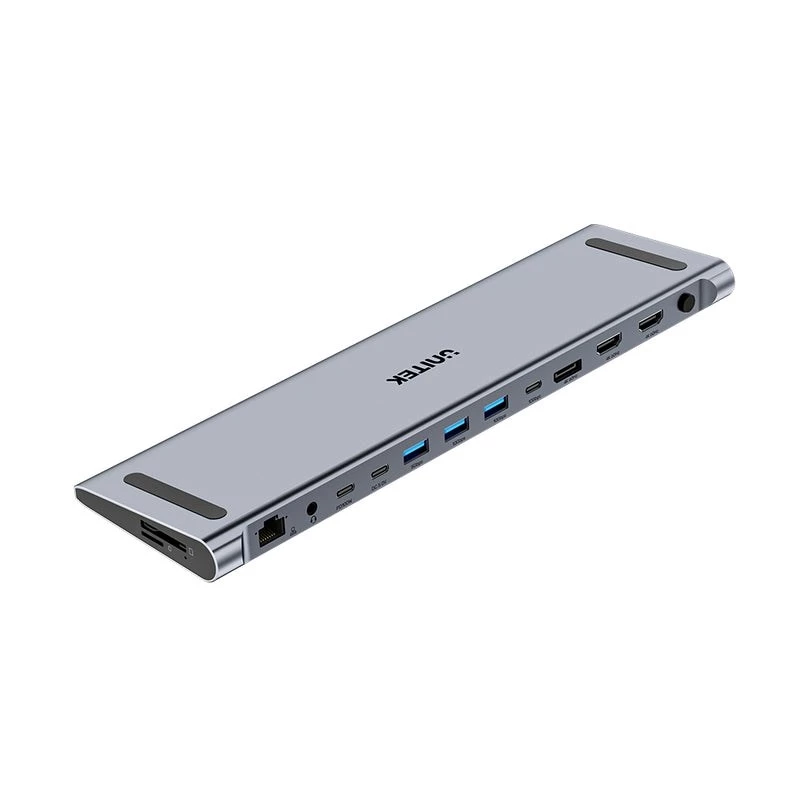

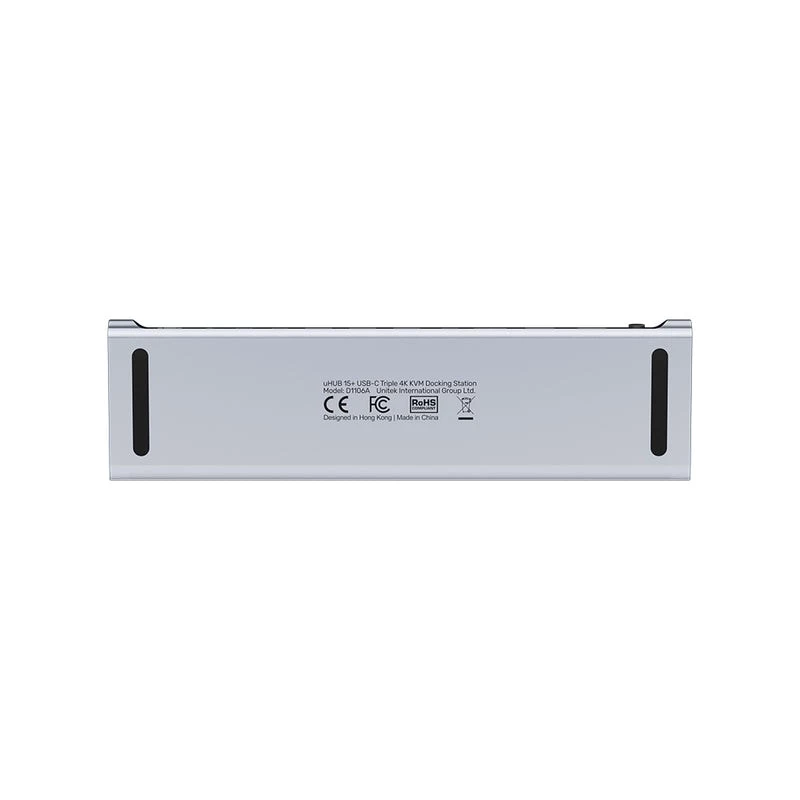

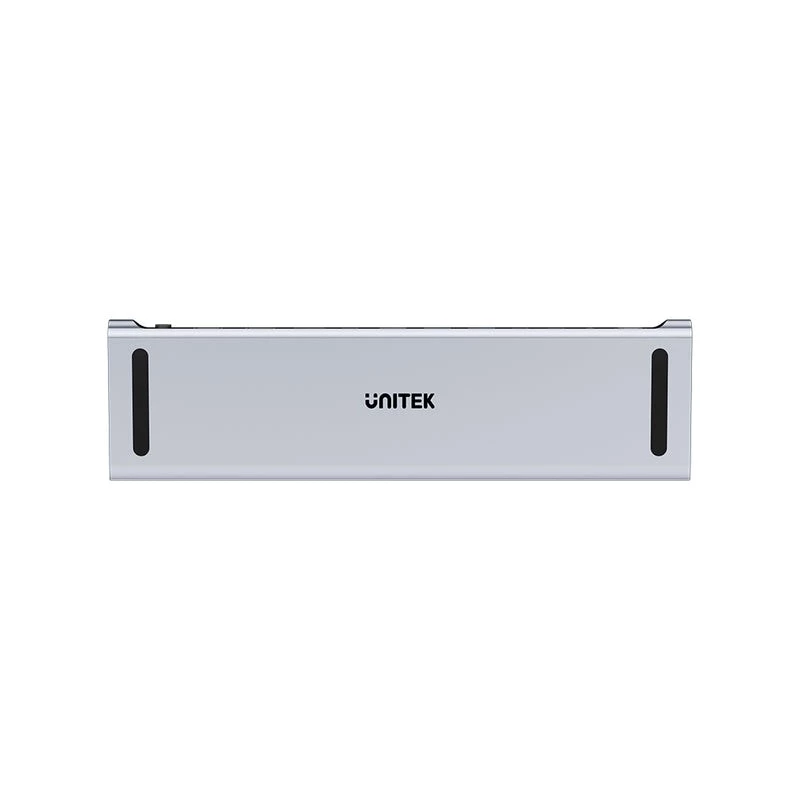

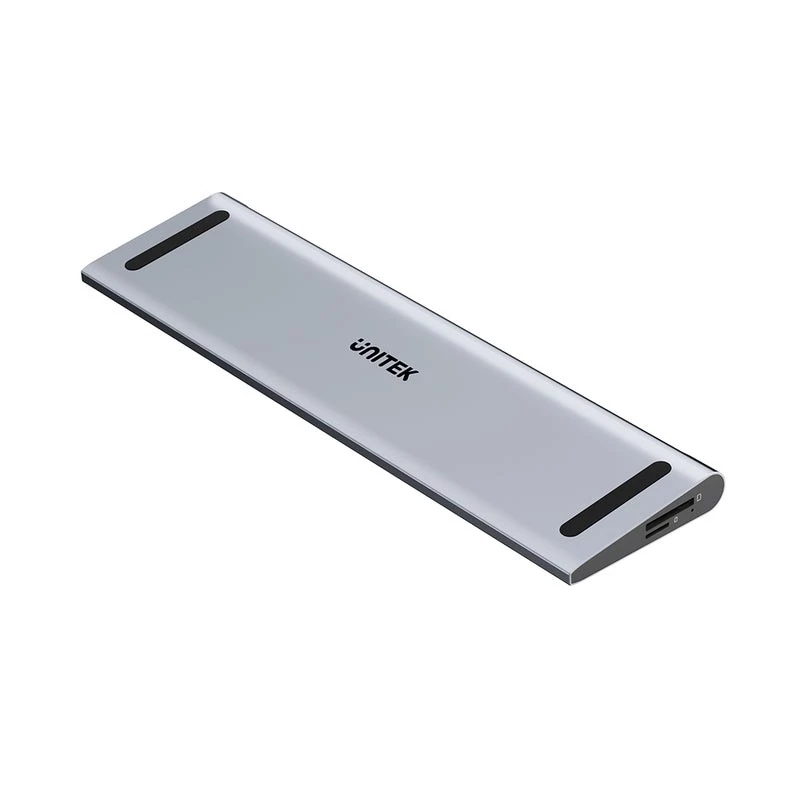

KVM-Switch Unitek D1106AGY01 estação de acoplamento USB-C Triple 4K com KVM, 3x USB-A, 5x USB-C, HDMI×2, DP×1, RJ-45, leitor SD, 3840×2160@60Hz, alumínio

Unitek D1106AGY01 is a USB-C triple 4K docking station with integrated KVM function in a grey aluminium alloy housing. It supports up to 3840×2160 at 60 Hz over HDMI or DisplayPort and provides multiple ports for expanding connectivity on laptops or desktops while allowing keyboard, mouse and video switching between hosts.

Advantages

The aluminium housing provides a compact, durable enclosure while the integrated KVM lets you control two hosts with one keyboard and mouse. Multiple video outputs and a 60 Hz video bandwidth enable 4K display compatibility, and a combination of USB-C and USB-A ports plus an SD card reader and Ethernet port cover common expansion needs.

Suitable for (tasks / use cases)

• Connecting a laptop or desktop to multiple 4K displays

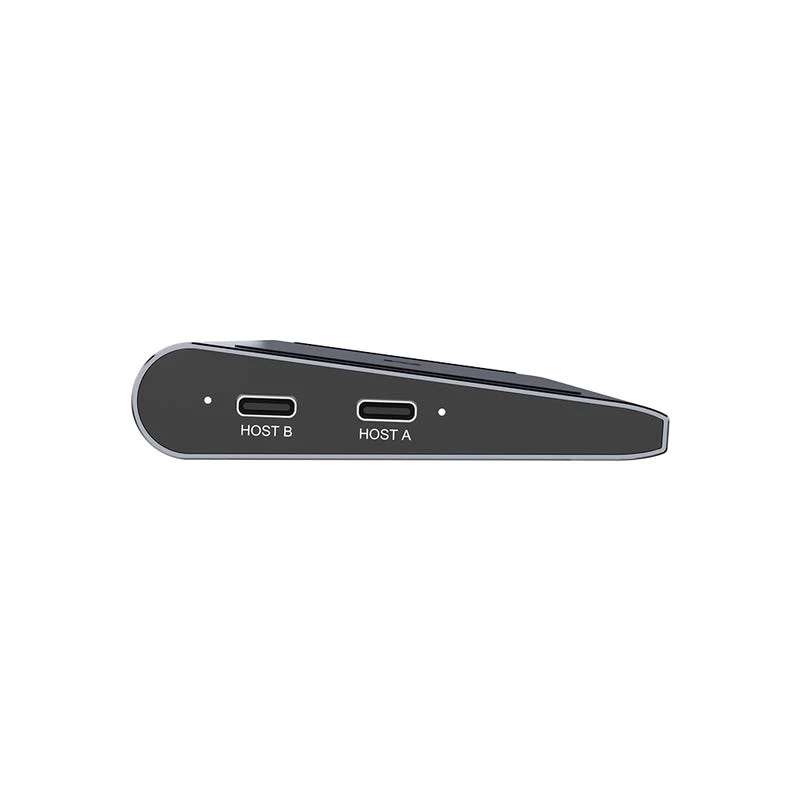

• Switching keyboard and mouse control between two host computers
• Expanding ports for peripherals such as USB drives, keyboard, mouse and SD cards
• Wired network connection via integrated RJ-45 Ethernet port

Key specifications

• Maximum resolution: 3840 x 2160 pixels at 60 Hz
• HD type: 4K Ultra HD

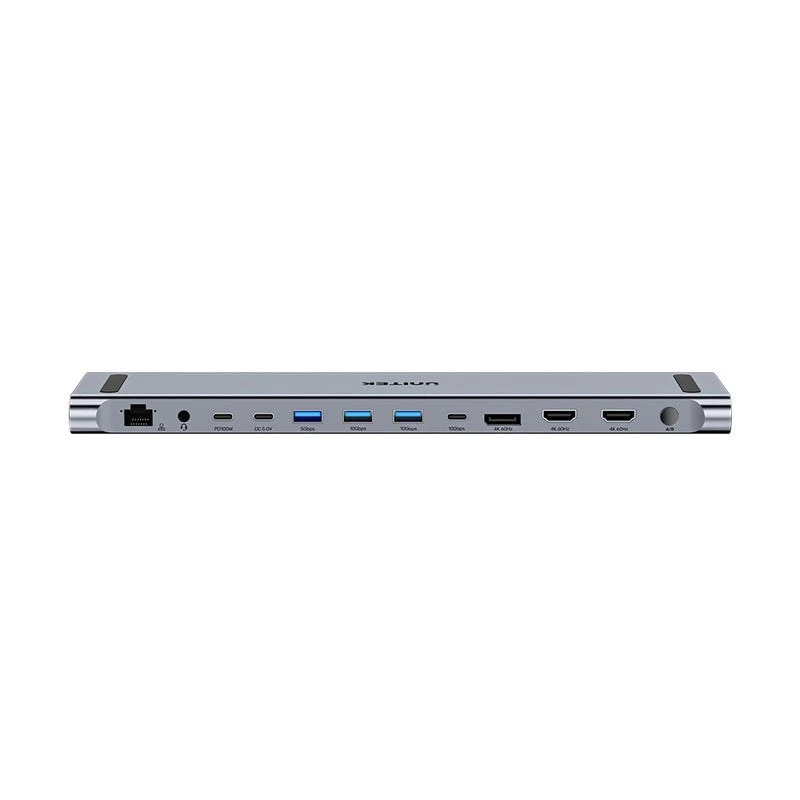

• Video outputs: 2× HDMI, 1× DisplayPort
• USB ports: 5× USB-C, 3× USB-A
• Ethernet: 1× RJ-45 LAN port

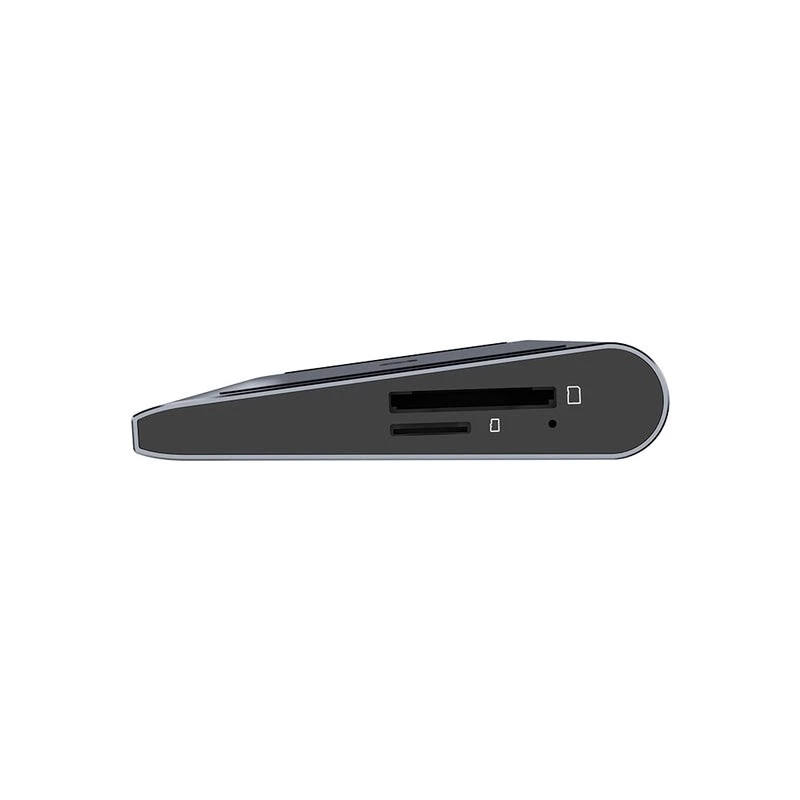

• SD memory card reader: Yes
• Housing material: Aluminium alloy; product colour: Grey
• Dimensions (W×D×H): 290 mm × 80 mm × 17.6 mm

How to use

Connect the docking station to a host computer using a USB-C port, then attach displays to the HDMI or DisplayPort outputs and peripherals to the USB-A/USB-C ports. Use the integrated KVM controls to switch keyboard and mouse control between connected hosts. Ensure connected displays and cables support 4K at 60 Hz for full resolution and set compatible display settings in the host operating system if necessary.

Recommendations

For reliable 4K@60Hz output, use high-quality HDMI or DisplayPort cables rated for 18 Gbps or higher and verify that the host's USB-C port supports required video alt-mode. Keep the docking station on a stable, ventilated surface and connect the Ethernet and SD card only when needed to reduce wear.
