Lanberg módulo SFP BiDi, até 3 km, 1 Gb/s, 1310/1550 nm, LC/UPC, tipo A (SFP1-BIDI-LU-1-03-A)

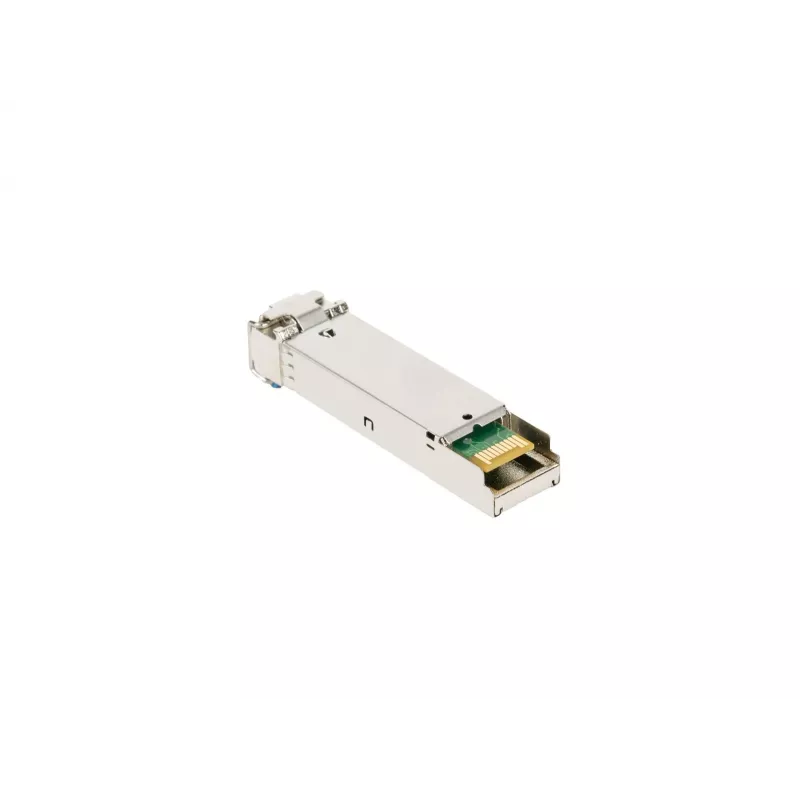

The Lanberg SFP1-BIDI-LU-1-03-A is a bidirectional SFP transceiver module designed for single-mode fiber (SMF) with an LC/UPC connector. It supports data transfer rates up to 1.25 Gb/s and uses 1310 nm and 1550 nm wavelengths for transmission and reception over a single fiber. This module is part of a complementary A+B pair, where the A version transmits at 1310 nm and receives at 1550 nm.

Key features

• Bidirectional data transmission over a single single-mode fiber
• Uses 1310 nm and 1550 nm wavelengths
• Supports speeds up to 1.25 Gb/s
• Compact Simplex LC connector
• Hot-swappable SFP form factor
• Range up to 3 km

Specifications

• Product type: Transceiver Module
• Brand: Lanberg
• MPN: SFP1-BIDI-LU-1-03-A
• Form factor: SFP
• Type / wavelength: 1310 nm
• Type / wavelength: 1550 nm
• Range: 3 km
• Fiber type: Single-mode
• Max transmission speed: 1 Gbps
• Connector: LC/UPC
• Ethernet LAN: Yes
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
• Transmitter power (Tx Power): -9 to -3 dBm
• Receiver sensitivity (Rx Sens.): -22 dBm
• Receiver overload threshold (Rx Overload): -3 dBm
