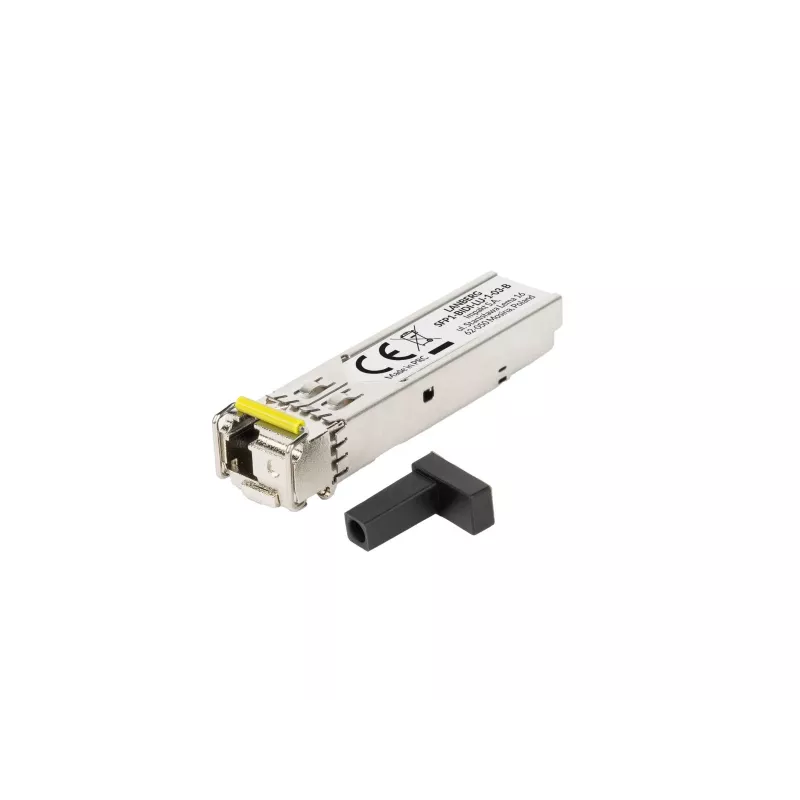

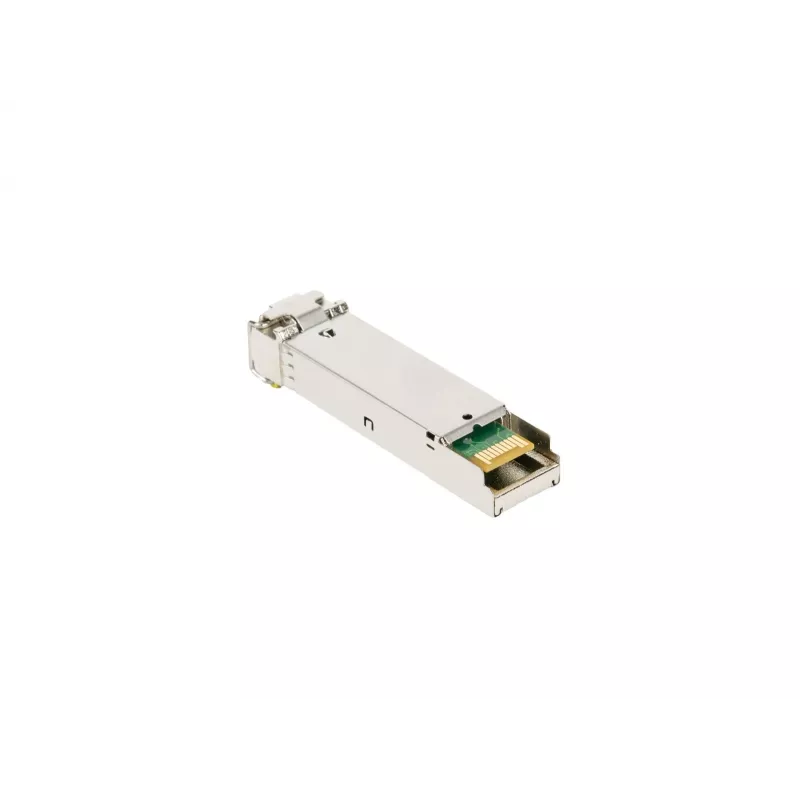

Lanberg módulo SFP BiDi, até 3 km, 1 Gb/s, 1550/1310 nm, LC/UPC, tipo B (SFP1-BIDI-LU-1-03-B)

The Lanberg SFP Bidi Module is a transceiver designed for bidirectional data transmission over a single single-mode fiber. It supports Gigabit Ethernet speeds up to 1.25 Gb/s and uses 1310 nm and 1550 nm wavelengths to separate transmission and reception. The module features a Simplex LC/UPC connector and is suitable for connections up to 3 km.

Key features

• Bidirectional data transmission over a single single-mode fiber
• Uses 1310 nm and 1550 nm wavelengths
• Supports speeds up to 1.25 Gb/s for Gigabit Ethernet
• Compact Simplex LC/UPC connector
• Hot-swappable SFP form factor
• Range up to 3 km
• BIDI modules operate only as a complementary A + B pair; BIDI B: TX 1550 nm, RX 1310 nm

Specifications

• Brand: Lanberg
• MPN: SFP1-BIDI-LU-1-03-B
• Product type: Transceiver Module
• SFP transceiver type: SFP
• Maximum data transfer rate: 1 Gbps
• Fiber optic connector: LC
• Single-mode fiber (SMF) supported: Yes
• Ethernet LAN: Yes
• Form factor: SFP
• Wavelengths: 1550 nm, 1310 nm
• Range: 3 km
• Fiber type: Single-mode
• Max transmission speed: 1.25 Gb/s
• Connector: LC/UPC
• Operating temperature: 0 - 70 °C
• Recommended ambient temperature: 0 - 70 °C
• Recommended ambient humidity: 5 - 85%
• Transmitter power (Tx Power): -9 to -3 dBm
• Receiver sensitivity (Rx Sens.): -22 dBm
• Receiver overload threshold (Rx Overload): -3 dBm
