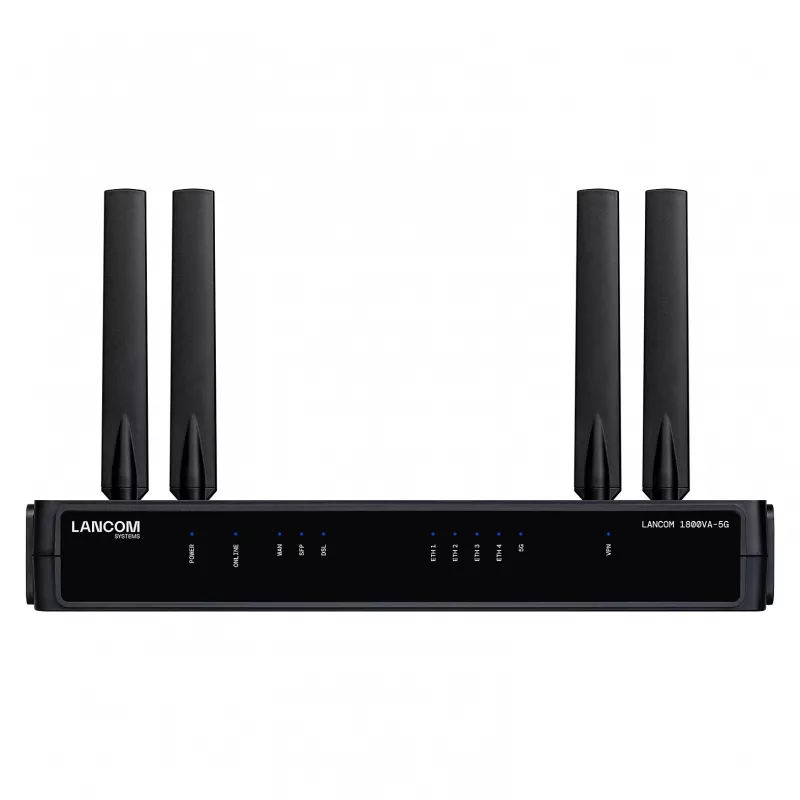

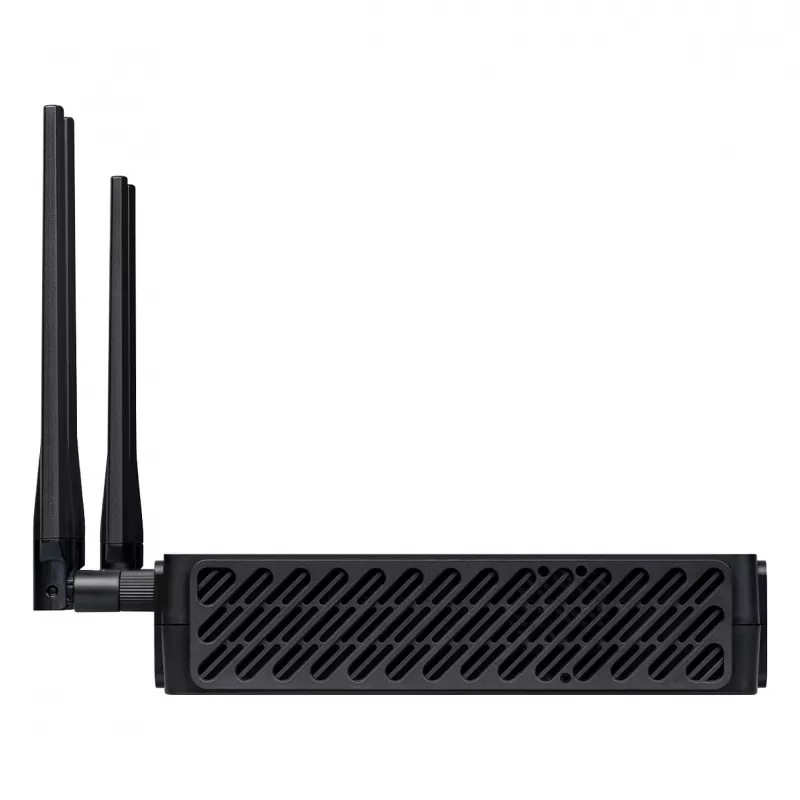

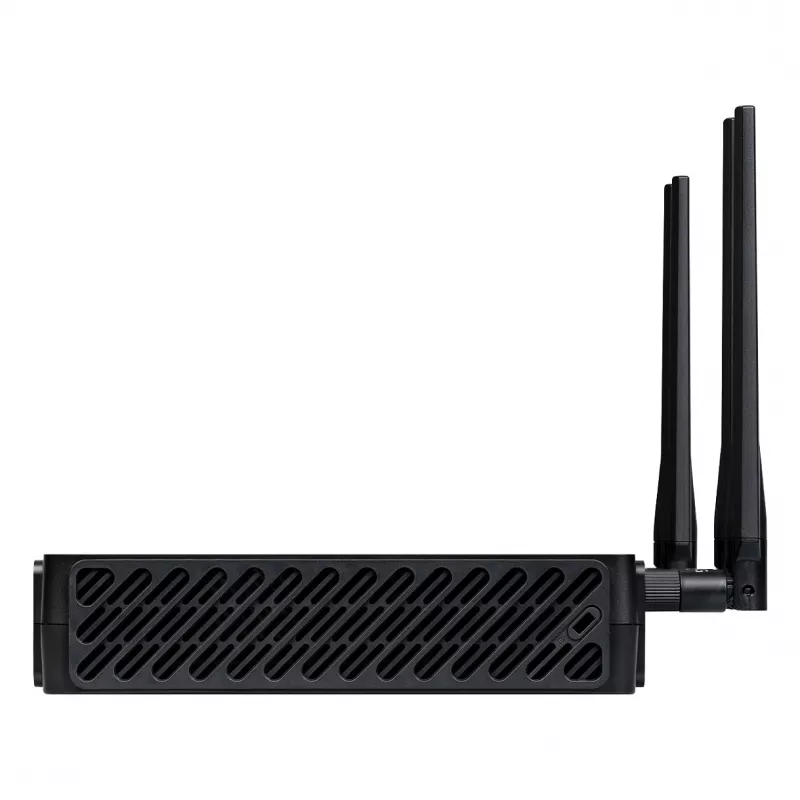

LANCOM 1800VA-5G (EU) router, preto

The LANCOM 1800VA-5G (EU) is an SD-WAN gateway in black that combines VDSL and 5G connectivity for branch networking. It supports parallel use of multiple internet connections via VDSL, fiber, and 5G, and can be integrated into the LANCOM Management Cloud (LMC) for centralized network management.

Key features

• SD-WAN gateway with VDSL and 5G
• Parallel use of multiple internet connections via VDSL, fiber, and 5G
• Integration into LANCOM Management Cloud (LMC)
• LANCOM SD-WAN with Auto-VPN, High Scalability VPN (HSVPN), and Advanced Mesh VPN
• Active/Active mode (load balancing) for multiple WAN connections
• Dynamic Path Selection and Dynamic Traffic Steering
• VDSL supervectoring support, backward compatible with VDSL2 and ADSL2+
• Stateful Inspection Firewall with Intrusion Prevention and Denial of Service Protection
• ARF and VLAN support
• External antennas with SMA connector, 4 antennas
• 1 fan
• LED indicators
• Desktop, rack, and wall mounting

Specifications

• Brand: LANCOM
• MPN: 62151
• Product colour: Black
• Antenna type: External
• Antenna connector type: SMA
• Number of antennas: 4
• Management protocols: SNMPv1, v2c, v3
• Supported network protocols: Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82
• Router protocol: BGP4, LISP, OSPFv2, RIP-2, VRRP
• Ethernet LAN data transfer rates: 10,100,1000 Mbit/s
• Network standard: IEEE 802.3q
• Mobile network generation: 5G
• Data network: 3G, 4G, 5G, HSPA, UMTS
• Supported security algorithms: 802.1x RADIUS, 1024-bit RSA, 2048-bit RSA, 4096-bit RSA, AES-CCMP, AES-GCMP, EAP-FAST, EAP-GTC
• Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
• DHCP server: Yes
• DHCP client: Yes
• VoIP protocols: SIP ALG
• DMZ support: Yes
• Load balancing: Yes
• Modulation: 256-QAM, 1024-QAM
• Dynamic DNS (DDNS): Yes
• PPTP/L2TP VPN tunnels (max.): 25
• Access control list: Yes
• MAC address filtering: Yes
• Firewall: Yes
• VLAN support: Yes
• Network address translation (NAT): Yes
• Password protection: Yes
• USB 2.0 ports: 1
• Ethernet LAN (RJ-45) ports: 5
• WAN port: Ethernet (RJ-45)
• DC-in jack: Yes
• IGMP snooping: Yes
• Multicast Listener Discovery (MLD) snooping: Y
• DHCPv6 snooping: Yes
• Quality of Service (QoS) support: Yes
• Reset button: Yes
• Syslog: Yes
• Multicast support: Yes
• Traffic shaping: Yes
• Power consumption (typical): 13 W
• Power consumption (max): 33 W
• Heat dissipation: 132 BTU/h
• Width: 293 mm
• Depth: 190 mm
• Height: 44 mm
• Weight: 790 g
• AC power adapter: Yes
• Quick start guide: Yes
• Cables included: LAN (RJ-45)
• Operating temperature: 0 - 40 °C
• Relative humidity in operation: 0 - 95%
• Sustainability compliance: Yes
• Country of origin: Germany
