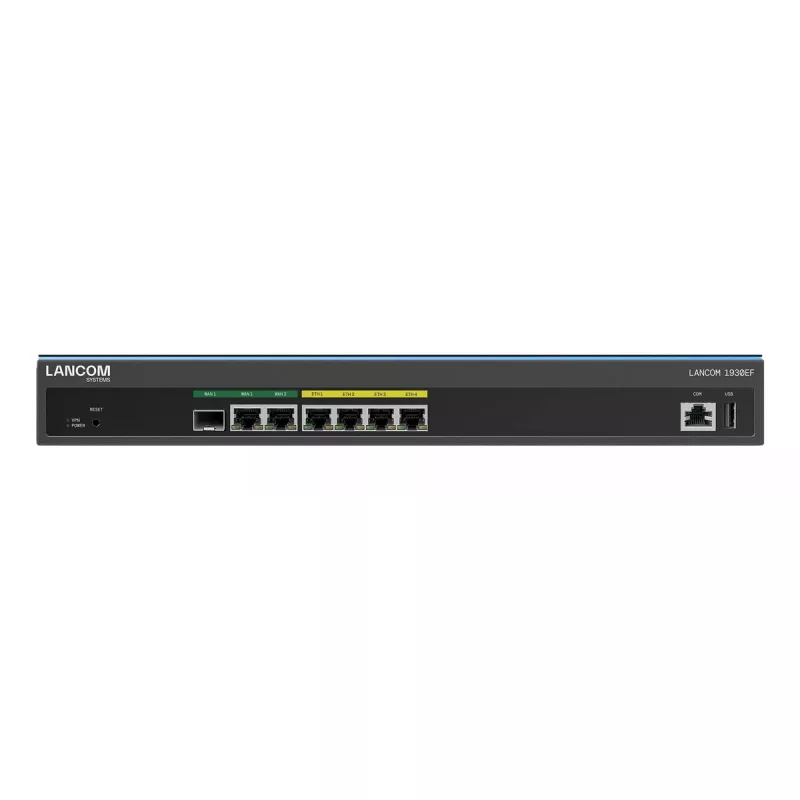

Lancom 1930EF, Ethernet-WAN, Gigabit Ethernet, DSL-WAN, preto (62146)

The Wired Router Lancom Systems 1930EF is a multi‑WAN SD‑WAN gateway designed for medium and large company sites. It supports multiple external Internet connections via Gigabit Ethernet and offers an SFP/TP combo port for direct fiber connection with an optional SFP module. The device provides advanced SD‑WAN features including centralized management with the LANCOM Management Cloud, automated site-to-site VPN setup, load balancing across WAN links and dynamic path selection for application-aware routing.

Advantages

The LANCOM 1930EF combines fiber and Gigabit Ethernet connectivity with multi‑WAN load balancing (active/active) to increase available bandwidth and resilience. High Scalability VPN (HSVPN) reduces the number of VPN tunnels by encapsulating multiple networks into a single secure tunnel, while a stateful inspection firewall with ARF and VLAN support enables logical segmentation and protection against intrusions and denial‑of‑service attacks. The device ships from a German manufacturer with regular OS updates and a focus on secure, backdoor‑free solutions.

Suitable for (tasks / use cases)

• Site networking for medium and large branch offices
• Multi‑WAN Internet access with load balancing and failover
• Centralized SD‑WAN management and automated VPN deployment
• Secure remote access for mobile employees and home offices
• Environments requiring VLAN segmentation and inspection firewall

Key specifications

• Model: LANCOM 1930EF (Wired Router Lancom Systems 1930EF)
• MPN: 62146, EAN: 4044144621468
• Interfaces: 6 × Gigabit Ethernet (RJ‑45), 1 × USB, 1 × SFP/TP combo port (SFP module optional for GPON/AON)
• Throughput: Supports 10/100/1000 Mbit/s Ethernet speeds
• Security: Stateful inspection firewall, IPSec VPN (5 channels built‑in, upgradable to 100 via LANCOM VPN Option), ARF, VLAN
• Routing & WAN features: SD‑WAN with Auto‑VPN, HSVPN, Advanced Mesh VPN, load balancing (active/active), Dynamic Path Selection
• Form factor & weight: 1U rack‑mountable metal case, approx. 2.5 kg

How to use

Install the LANCOM 1930EF in a rack or on a shelf and connect external DSL or cable modems to the Gigabit Ethernet ports. For fiber connectivity, insert the appropriate SFP module into the SFP/TP combo port and connect the fiber line. Use the LANCOM Management Cloud to centrally configure SD‑WAN, Auto‑VPN site connections, VLANs, and firewall policies. Define multiple WAN connections to enable active/active load balancing and set Dynamic Traffic Steering rules to route applications over the best path automatically.

Recommendations

For resilient site networking, deploy at least two independent WAN connections and manage device configuration centrally via the LANCOM Management Cloud. If you expect many branch connections, enable HSVPN or add the LANCOM VPN Option to scale VPN channels. Keep firmware updated regularly to maintain security and compatibility.
