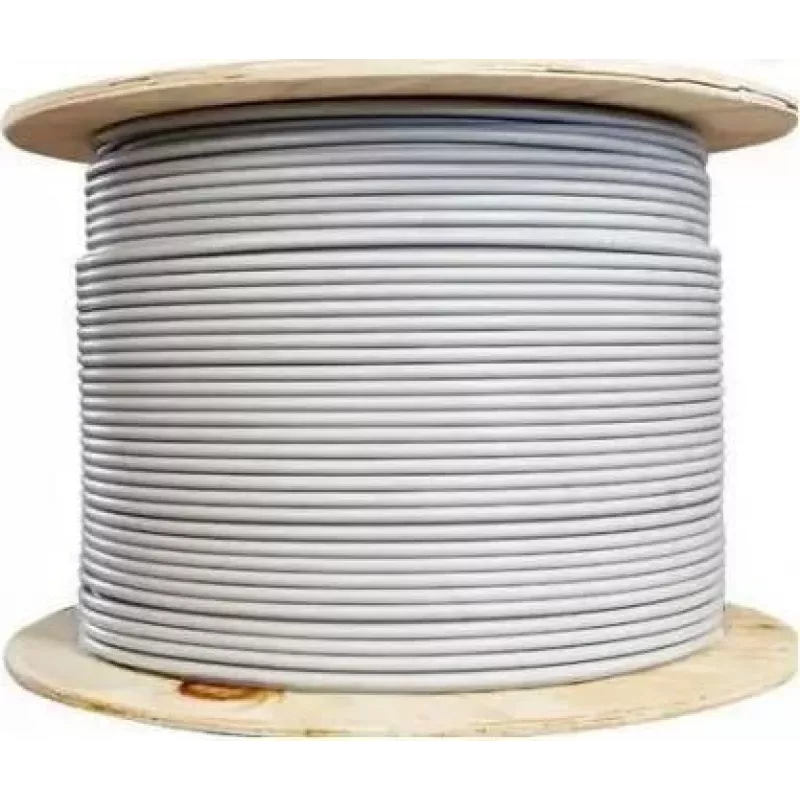

Lanview cabo de rede Cat6a F-UTP 305m LSZH cinzento (LVN122182-FTP)

For installations where performance cannot be compromised, this Lanview Cat6a F-UTP cable delivers a full 500 MHz of bandwidth over a 305‑meter reel, supporting 10GBASE‑T without the bulk of fully shielded systems. The foil‑wrapped, unshielded twisted‑pair construction keeps crosstalk and alien noise in check while remaining flexible enough for fast pulls through conduits and cable trays. A grey LSZH jacket adds fire‑safety compliance and a clean, professional look in offices, data centres, and industrial pathways.

Highlights

• Cat6a / Class EA performance: 10 Gigabit Ethernet up to 100 m, 500 MHz bandwidth
• F/UTP shielding: overall foil screen protects against EMI/RFI without sacrificing flexibility
• Solid bare copper conductors, 23 AWG – ideal for permanent links and PoE applications
• LSZH (Low Smoke Zero Halogen) grey jacket: low smoke, low toxicity, flame retardant to IEC 60332‑1
• 305 m (1000 ft) reel – convenient for structured cabling projects and bulk installations
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA‑568‑C.2

In daily use

Installers will appreciate the cable's balance of protection and handling. The foil shield is easy to terminate with standard Cat6a connectors, and the LSZH jacket strips cleanly without excessive force. Because the conductors are solid copper rather than copper‑clad aluminium, the cable supports PoE, PoE+, and PoE++ reliably over long distances, making it suitable for IP cameras, wireless access points, and other powered devices. The grey colour blends into most environments, and the reel packaging keeps the cable tangle‑free during pull‑outs.

Full specifications

• Category: Cat6a (Class EA)
• Shielding: F/UTP (foiled, unshielded twisted pairs)
• Length: 305 m (1000 ft)
• Conductor: Solid bare copper, 23 AWG
• Number of pairs: 4
• Outer diameter: approx. 7.2 mm
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Colour: Grey
• Max data rate: 10 Gbps (10GBASE‑T)
• Bandwidth: 500 MHz
• Impedance: 100 Ohms
• Operating temperature: ‑20 °C to +60 °C
• Flame retardancy: IEC 60332‑1
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA‑568‑C.2
• PoE support: PoE, PoE+, PoE++
• Application: Indoor
• Packaging: Reel / drum

Final note

When your network demands 10‑Gigabit readiness and safety compliance, this Lanview Cat6a F/UTP reel is a dependable, cost‑effective choice for professional cabling projects.
