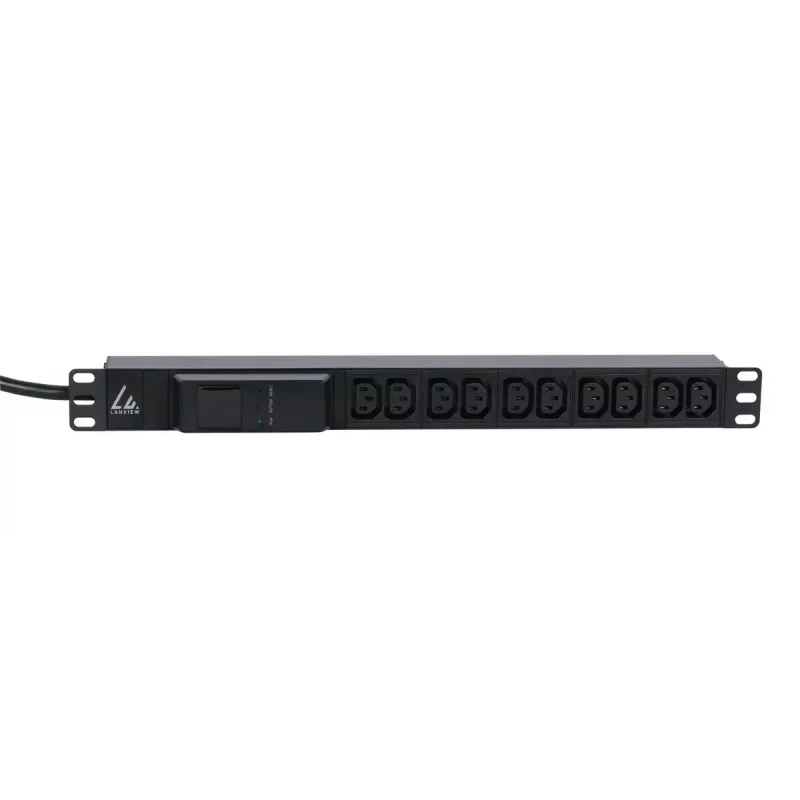

Lanview LVR261877 Unidade de distribuição de energia (PDU) 10 saídas AC 1U preto

The Lanview LVR261877 is a metered power distribution unit (PDU) in a 1U rack format, providing 10 C13 AC outlets, a built-in ammeter for current monitoring, and a 3 m power cable terminated with an IEC 60309 CEE 16A plug. Designed for installation in standard 19" rack cabinets, it supplies reliable 230 V power distribution with a maximum current rating of 16 A.

Advantages

The unit combines compact 1U rack mounting with ten C13 outlets to maximize outlet density while preserving rack space. The integrated amp meter enables quick, on-site current reading for basic power monitoring. A 3 m cable with IEC 60309 CEE 16A plug provides a robust, industry-standard connection suitable for data center power feeds. The black finish and 1.3 kg weight make it easy to handle and integrate with existing rack equipment.

Suitable for (tasks / use cases)

• Server racks in small to medium data centers
• Network cabinets and telecom equipment racks
• IT closets and edge computing enclosures
• Laboratory or workshop racks requiring multiple C13 outlets

Key specifications

• Model: Lanview LVR261877
• PDU type: Metered
• AC outlets: 10 × C13
• Nominal input voltage: 230 V
• Maximum current: 16 A
• Rack mounting: 1U

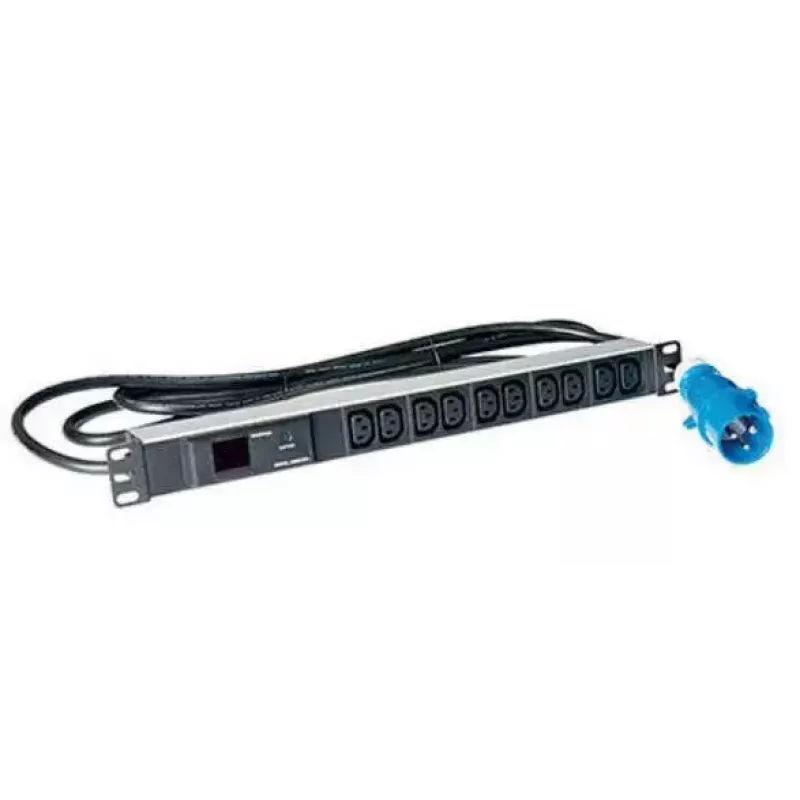

• Cable and plug: 3 m cable with IEC 60309 CEE 16A plug
• Colour: Black
• Weight: 1.3 kg

How to use

Mount the PDU into a standard 19" rack using appropriate screws and mounting hardware. Connect the IEC 60309 CEE 16A plug to a compatible 16 A power outlet or feed. Plug servers and other equipment into the C13 outlets. Monitor the current draw via the built-in ammeter to ensure the total load does not exceed the 16 A rating. Perform regular visual inspections of the cable, plug and outlets for signs of wear.

Recommendations

Do not exceed the specified maximum current of 16 A and distribute connected equipment to avoid overloading a single circuit. Use the built-in amp meter to verify load levels after adding or removing equipment. Ensure the IEC 60309 connection matches the facility's power configuration before installation.
