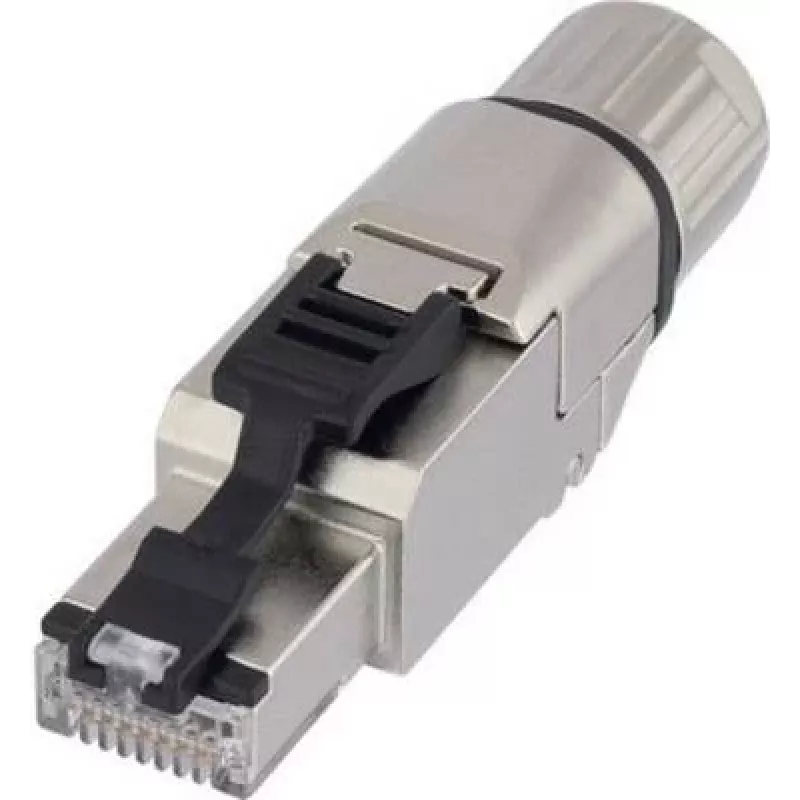

LAPP ED-IE-AXS-6A-A-20-FD-FC Ficha RJ45 Cat.6A de montagem em campo, blindada, IDC sem ferramentas, zamac, pack de 10 21700654

This LAPP field-attachable RJ45 plug stands out with its tool-free IDC termination, allowing fast on-site assembly without crimping tools. It supports 10 Gigabit Ethernet over Cat.6A and features a robust zinc die-cast housing with gold-plated contacts, making it suitable for industrial Ethernet and automation environments.

Highlights

• Tool-free IDC termination for quick field assembly
• Supports 10 Gigabit Ethernet (10 Gbps)
• Shielded design for reliable signal integrity
• Zinc die-cast housing with nickel plating
• Gold-plated contacts for corrosion resistance
• Accepts cable diameters from 4.5 mm to 8.0 mm

In daily use

Ideal for industrial Ethernet, data centers, and automation applications where on-site termination of Cat.6A cables is required. The straight connector design and PoE+ support make it versatile for various network devices. The operating temperature range of -40°C to +70°C ensures performance in harsh environments.

Full specifications

• Connector Type: RJ45 Plug (8P8C)
• Cable Category: Cat.6A
• Transmission Speed: 10 Gigabit Ethernet
• Shielding: Shielded (STP/FTP)
• Connection Type: Field-attachable, Tool-free IDC
• Contact Material: Gold-plated
• Housing Material: Zinc die-cast, nickel-plated
• Protection Class: IP20
• Operating Temperature Range: -40°C to +70°C
• Cable Diameter Range: 4.5 mm - 8.0 mm
• Wire Gauge: AWG 26/7 - 22/7 (stranded), AWG 24/1 - 22/1 (solid)
• PoE Support: PoE+ (IEEE 802.3at)
• Standard Compliance: IEC 60603-7-51, TIA/EIA-568-B.2-10
• Flammability Rating: UL 94 V-0 (housing)
• Mounting Type: Cable Mount

Final note

A reliable choice for professionals needing high-performance Ethernet connectivity in demanding field conditions, with the convenience of tool-free installation.
