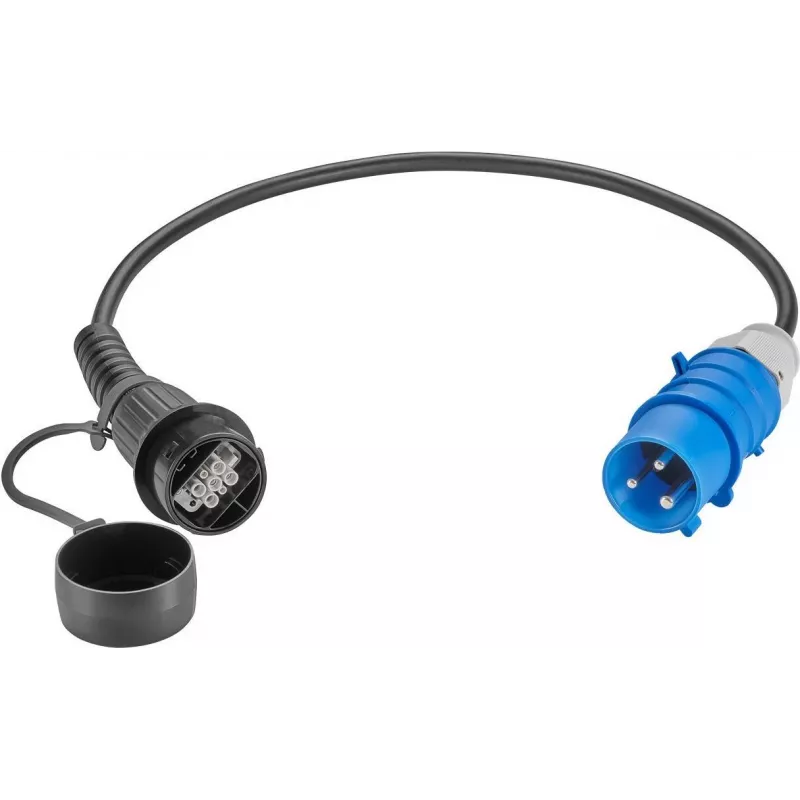

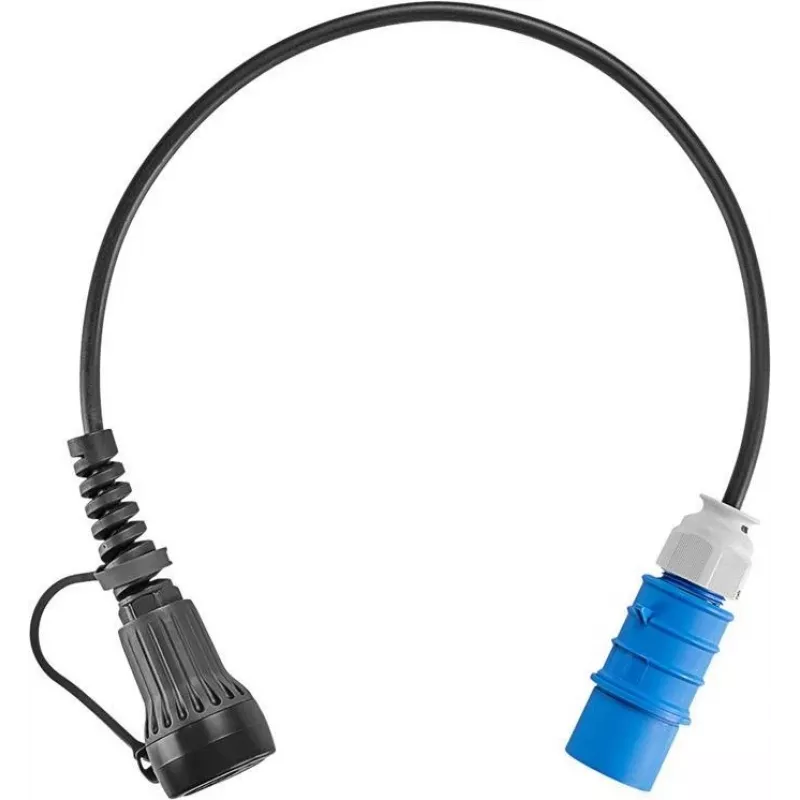

LAPP MOBILITY adaptador de carregamento CEE universal, até 7,4 kW, 1 fase (64704)

The LAPP MOBILITY CEE Charging Adapter Universal bridges a standard CEE 16A blue socket to the LAPP MOBILITY system connector, enabling single-phase charging up to 7.4 kW. Its robust thermoplastic housing and IP44 rating make it suitable for outdoor and indoor use.

Highlights

• Max charging power: 7.4 kW, 1-phase
• Input: CEE 16A (3-pin, blue), 230V AC
• Output: LAPP MOBILITY System Connector
• IP44 protection rating
• Operating temperature: -30°C to +50°C

In daily use

Connect the adapter to a CEE 16A socket and plug your LAPP MOBILITY charging cable into the system connector. The compact design and sturdy housing ensure reliable charging sessions at home or on the road.

Full specifications

• Adapter Type: CEE Charging Adapter
• Number of Phases: 1-Phase
• Input Plug Type: CEE 16A (3-pin, blue)
• Input Voltage (Nominal): 230V AC
• Input Current (Max): 16A
• Frequency: 50/60 Hz
• Output Interface: LAPP MOBILITY System Connector
• Protection Rating: IP44
• Operating Temperature Range: -30°C to +50°C
• Housing Material: Robust Thermoplastic
• Color: Black / Blue
• Certifications: CE, RoHS

Final note

Designed for compatibility with LAPP MOBILITY charging systems, this adapter provides a secure connection for EV charging up to 7.4 kW.
