LAPP MOBILITY cabo de carregamento EV Type 2, 7,4 kW, 5 m, laranja 61786

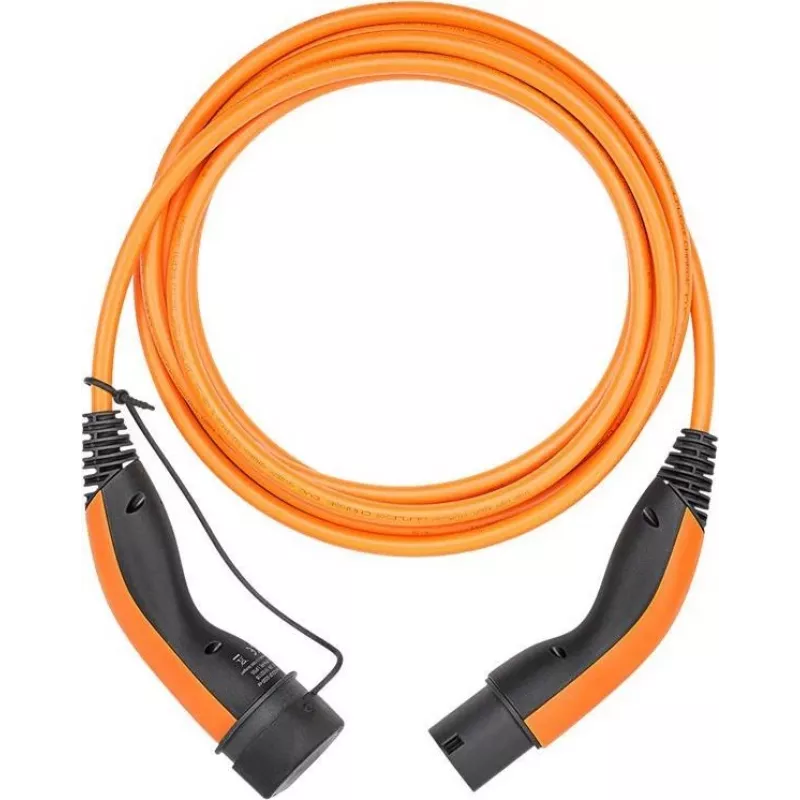

Charge your electric vehicle at any public Type 2 charging station or home wallbox with this 5-metre orange charging cable from LAPP MOBILITY. The cable connects the charging station to your vehicle using the standard Type 2 plug on both ends, supporting single-phase charging up to 7.4 kW (32 A, 230 V). The halogen-free TPE jacket is UV and oil resistant, making it suitable for outdoor use in temperatures from -30 °C to +50 °C. With an IP44 rating when connected, the connectors are protected against splashing water. The cable has a conductor cross-section of 3G6mm² + 1x0.5mm² and is certified by TÜV Rheinland.

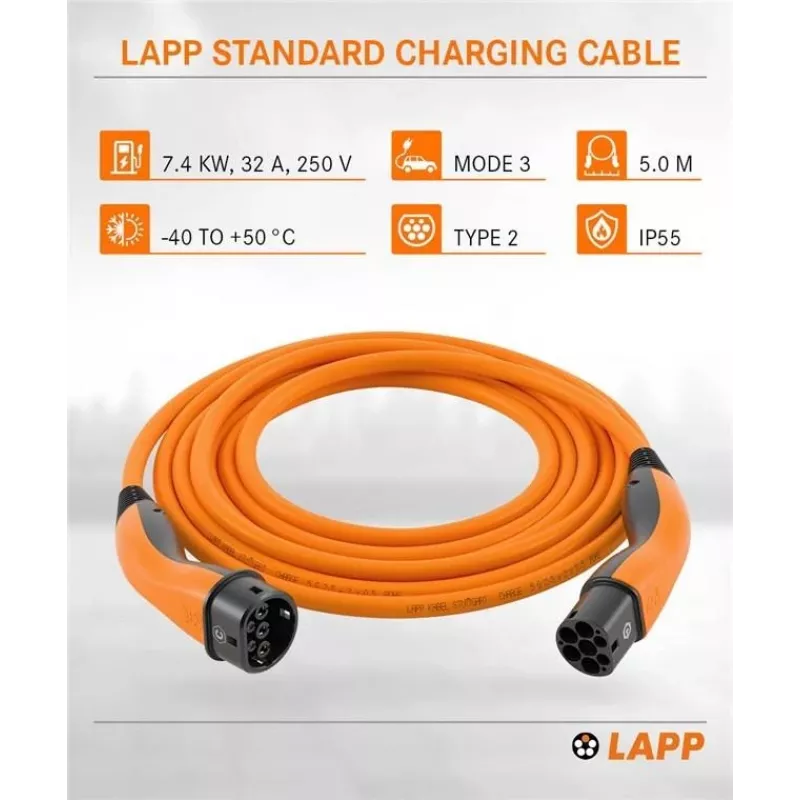

Key specifications

• Vehicle-side connector: Type 2 (IEC 62196-2)
• Charging station-side connector: Type 2 (IEC 62196-2)
• Max charging power: 7.4 kW
• Max charging current: 32 A
• Number of phases: 1-phase
• Operating voltage: 230 V AC
• Cable length: 5 m
• Cable colour: Orange
• Cable type: Straight
• Protection class (connectors): IP44 (when connected)
• Operating temperature: -30 °C to +50 °C
• Cable material: Halogen-free TPE (Thermoplastic Elastomer)
• Conductor cross-section: 3G6mm² + 1x0.5mm²
• Application: Mode 3 AC charging for electric vehicles
• Compatibility: All electric vehicles with Type 2 charging port and charging stations with Type 2 socket
• UV resistance: Yes
• Oil resistance: Yes
• Standards/Certifications: CE, TÜV Rheinland

Why choose it

This cable offers a reliable and safe charging solution for your electric vehicle. Its robust construction and weather-resistant materials ensure long-lasting performance, while the 5-metre length provides flexibility at charging stations.

Ideal use cases

• Charging at public AC charging stations
• Home wallbox charging
• Workplace charging

Good to know

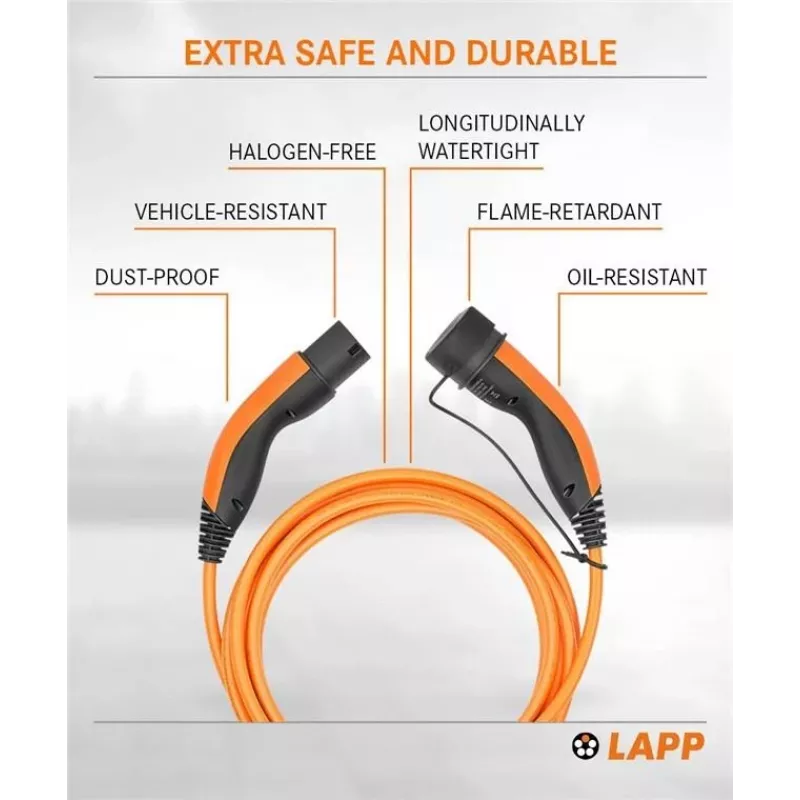

The cable is compatible with all EVs using the Type 2 standard in Europe. The orange colour enhances visibility, reducing tripping hazards. The halogen-free jacket is safer in case of fire, emitting less smoke and toxic gases.
