LAPP terminal de anel 10 mm², orifício 6,5 mm, não isolado, 100 unid. 63204245

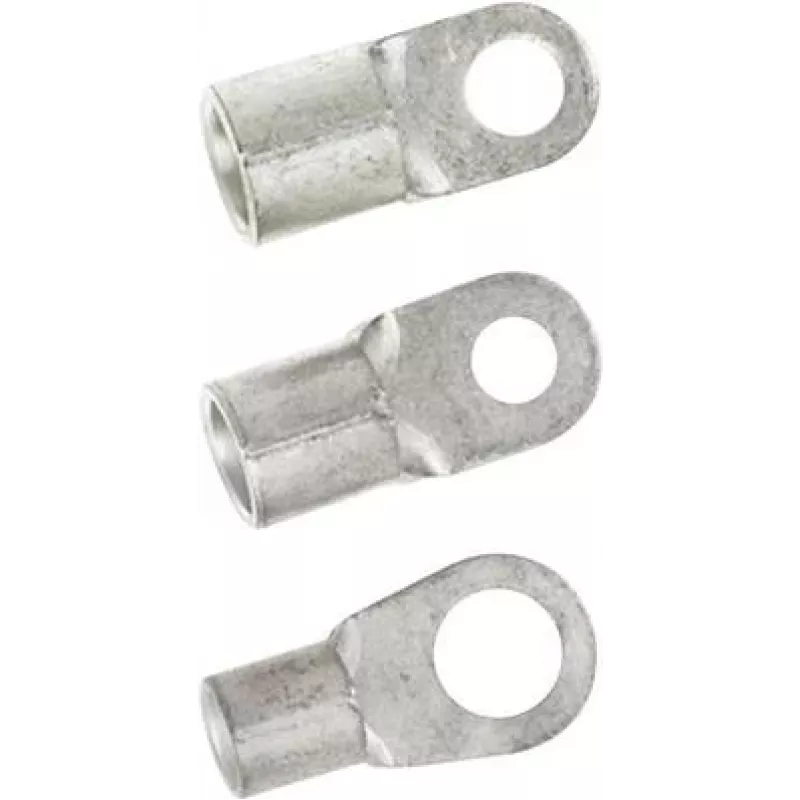

Electricians and panel builders often need a reliable, high-conductivity connection for grounding and power distribution. The LAPP ring cable lug accepts conductors up to 10 mm² and mounts via a 6.5 mm hole, making it suitable for M6 bolts or screws. The uninsulated design allows for direct crimping and inspection, while the tinned electrolytic copper construction resists corrosion and maintains excellent conductivity.

Key specifications

• Max. conductor cross-section: 10 mm²
• Mounting hole diameter: 6.5 mm (M6)
• Material: Electrolytic copper, tinned
• Connection method: Crimp
• Pack quantity: 100 pieces
• Operating temperature: -55 °C to +120 °C

Why choose it

These ring cable lugs provide a robust, corrosion-resistant termination for electrical connections. The tinned surface enhances durability in demanding environments, and the crimp connection ensures a secure, low-resistance joint. With 100 pieces per pack, they offer a practical supply for repeated use.

Ideal use cases

• Grounding and earthing connections
• Power distribution in control cabinets
• Electrical wiring in industrial machinery
• Battery and inverter cable terminations

Good to know

The lugs are uninsulated, so heat-shrink tubing or insulation tape may be used if electrical isolation is required. They are suitable for use with standard crimping tools.
