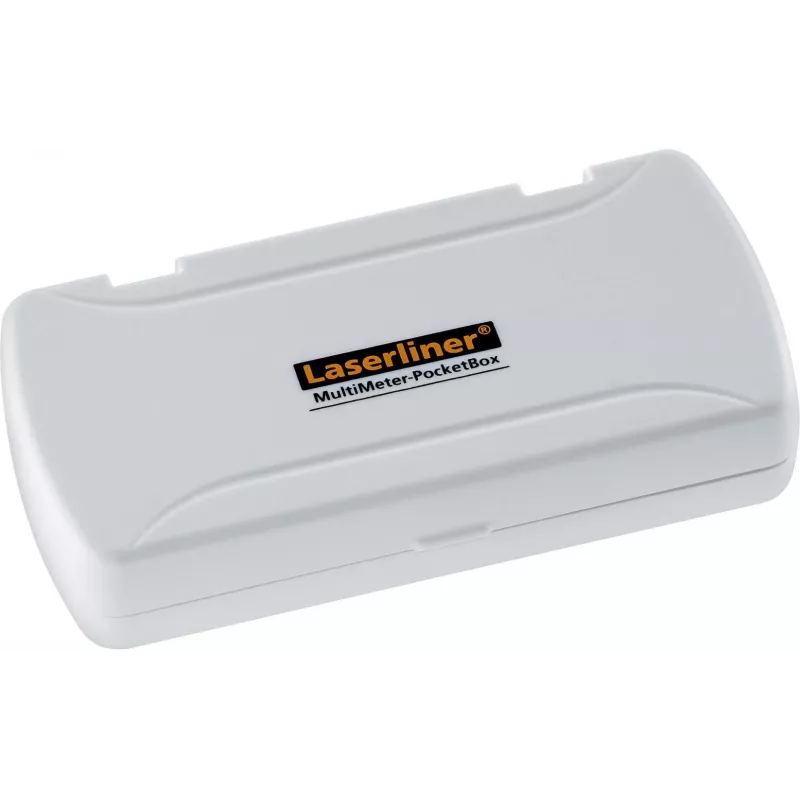

Laserliner multímetro PocketBox (083.028E)

For electrical troubleshooting and diagnostics, the Laserliner Multimeter PocketBox (083.028E) delivers precise measurements in a compact, portable design. This auto-ranging digital multimeter handles AC/DC voltage up to 600 V, AC/DC current up to 10 A, resistance up to 20 MΩ, capacitance up to 200 µF, frequency up to 20 kHz, and temperature from -20°C to 1000°C with a K-type thermocouple. The 3½-digit LCD with 2000 counts provides clear readings, while data hold and continuity buzzer simplify testing. Rated CAT III 600V for safe use in building installations.

Who is it for

Electricians, technicians, and advanced DIYers who need a reliable, pocket-sized multimeter for field service, maintenance, and troubleshooting.

Main features

• Auto-ranging for quick measurements
• Measures AC/DC voltage, current, resistance, capacitance, frequency, and temperature
• Data hold freezes readings on display
• Continuity test with buzzer for quick checks
• Diode test for semiconductor verification
• CAT III 600V safety rating
• Powered by 2 AAA batteries (not included)

Specifications

• Display: 3½-digit LCD, 2000 counts
• DC voltage range: up to 600 V
• AC voltage range: up to 600 V
• DC current range: up to 10 A
• AC current range: up to 10 A
• Resistance range: up to 20 MΩ
• Capacitance range: up to 200 µF
• Frequency range: up to 20 kHz
• Temperature measurement range: -20°C to 1000°C (with K-type thermocouple)
• Diode test: yes
• Continuity test: yes, with buzzer
• Data hold: yes
• Auto-ranging: yes
• Measuring category: CAT III 600V
• Power source: 2 x AAA 1.5V batteries

Tips

For temperature measurements, use a K-type thermocouple (not included). Always verify the meter on a known voltage source before testing. Replace batteries when the low battery indicator appears to maintain accuracy.
